11 - 7
IPN 074-505-P1E
IC6 Operating Manual
11.4 IC6 Four & Six Layer (Cygnus Emulation) Configuration
NOTE: The same method applies to any smaller set of simultaneous layers.
Instrument: IC6 with 3 measurement boards for six simultaneous layers or 2
measurement boards for four simultaneous layers and optional DAC Outputs card.

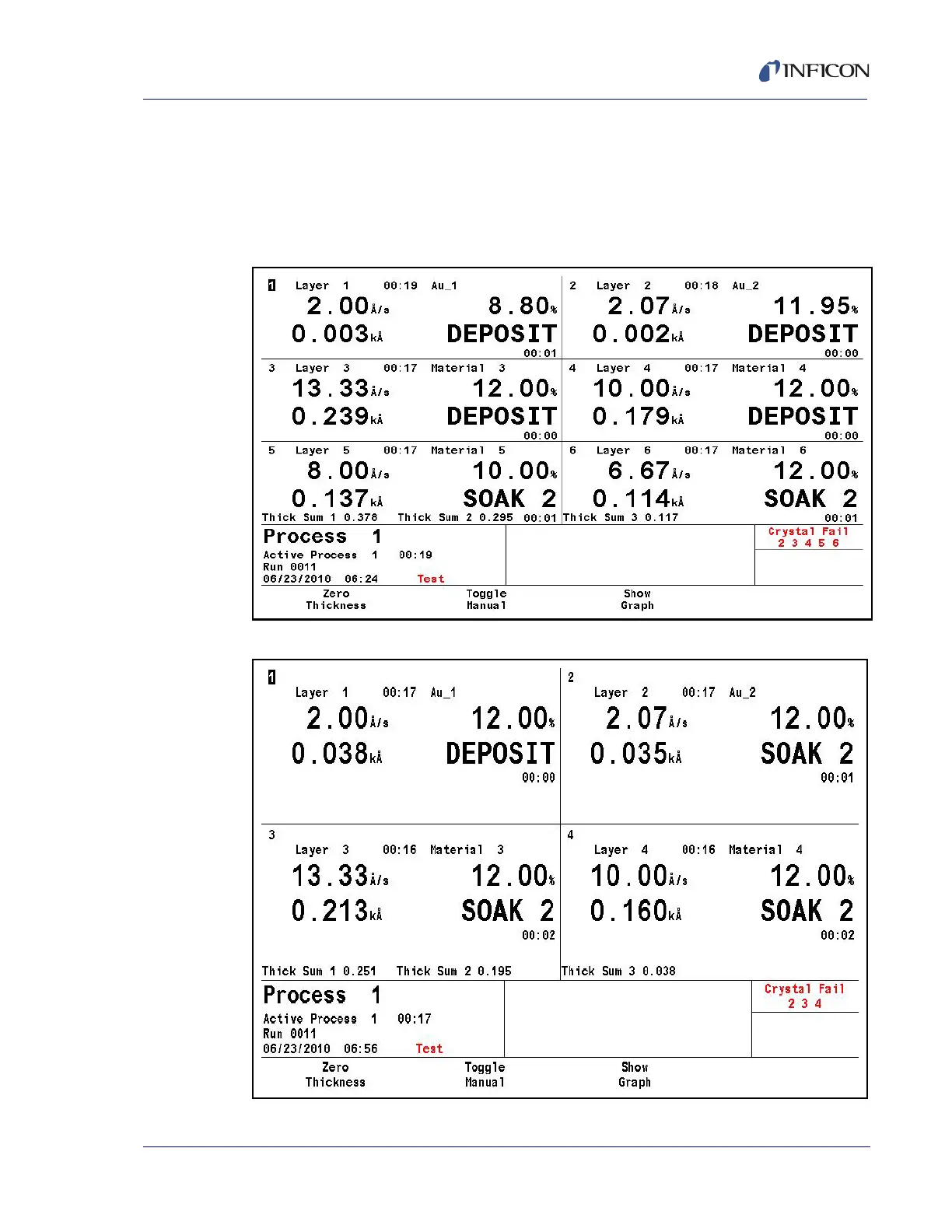

Figure 11-3 6 Layer display
Figure 11-4 4 Layer display
