IC6 Operating Manual
3.3.8.8 Audio/Visual Page
Audio Feedback: turns key beep on or off.
LCD Dimmer Time: 0 disables, sets time in minutes for screen to be turned off after
no keys pressed.
See section 7.9, AUDIO / VISUAL Page Set Up, on page 7-10.
3.3.9 Digital I/O
The Digital I/O displays show configuration of all inputs, see Figure 3-17, and
outputs, see Figure 3-18, and allows configuring inputs and outputs on the three
possible I/O boards.
See Chapter 8, Digital I/O for programming details.

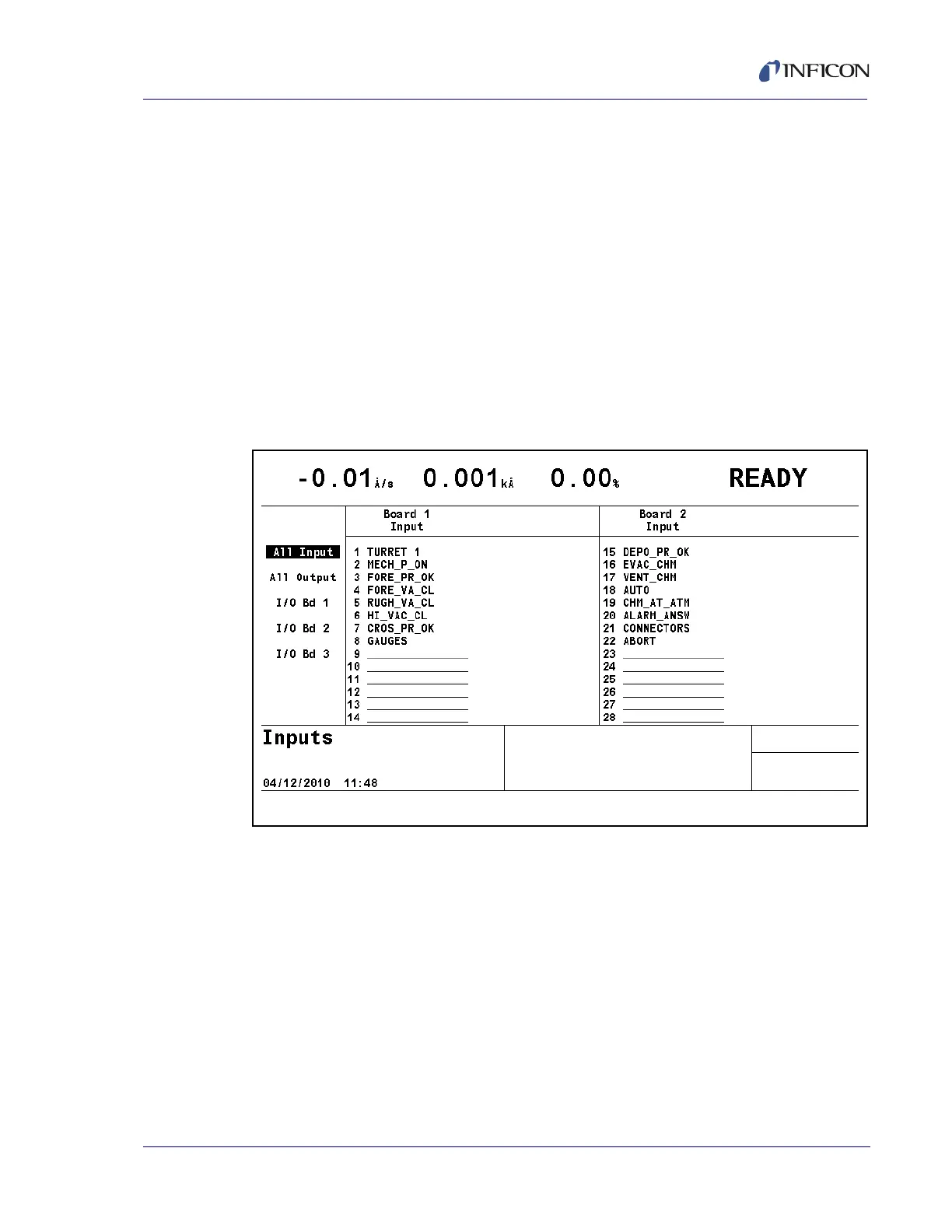

Figure 3-17 All inputs display
NOTE: On All Input and All Output pages, active inputs and outputs are displayed
in a standard font. Inactive inputs and outputs are displayed in a shadow
font.
