IC6 Operating Manual

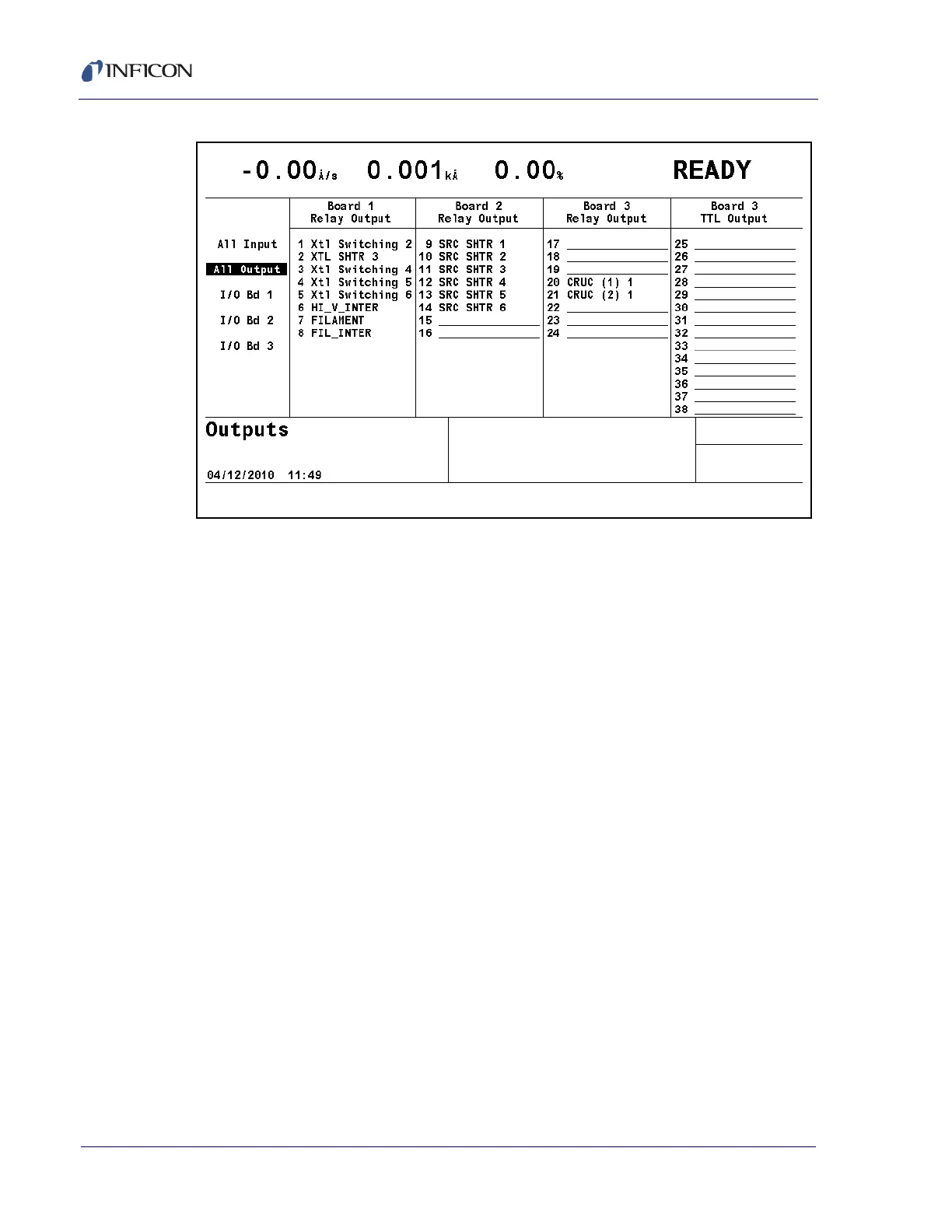

Figure 3-18 All outputs display
3.3.10 Logic
100 logic statements can be set up. Logic statements are evaluated sequentially,
10 times per second, while the IC6 is powered up.
See Chapter 9, Logic Statement Set-Up for programming details.
3.3.11 Maintenance
The Maintenance display is organized into four subscreens: Auto Tune, Cross Talk,
Source Maint(enance)and Sys(tem) Status.
See Chapter 12, Maintenance and Calibration Procedures for programming
details.
3.3.12 Counter / Timer
See Chapter 13, Counters & Timers.
3.3.13 USB Storage
Config. . . . . . . . . . . . . . . . . . . . . . . . allows saving and retrieving configuration
files to and from the USB storage device.
Datalog. . . . . . . . . . . . . . . . . . . . . . . shows datalog files on USB storage device.
Screen Shot . . . . . . . . . . . . . . . . . . . shows Print files on USB storage device.
See Chapter 14, USB Storage.
