14 - 4
IPN 074-505-P1E
IC6 Operating Manual
14.5 Screen Captures
A BMP file of the screen can be sent to the USB port storage device. Pressing the
Print key will send a BMP file of the screen to the IC6SCRN directory on the storage
device attached to the USB port. The Screen captures will be named as either
DDMMYYxx.BMP or MMDDYYxx.BMP depending on the date format setting.
DD = day of month, MM = month, YY = year, xx is a number that increments from
0 to 99, resetting to 0 every day. The IC6 will use the .BMP extension to identify
screen capture files. The +++ indicates that additional files exist on the USB device
beyond those displayed. Use the Up/Down arrows keys to navigate.
Individual screen shots can be deleted by cursoring to the specific file and selecting
the F3 function key.

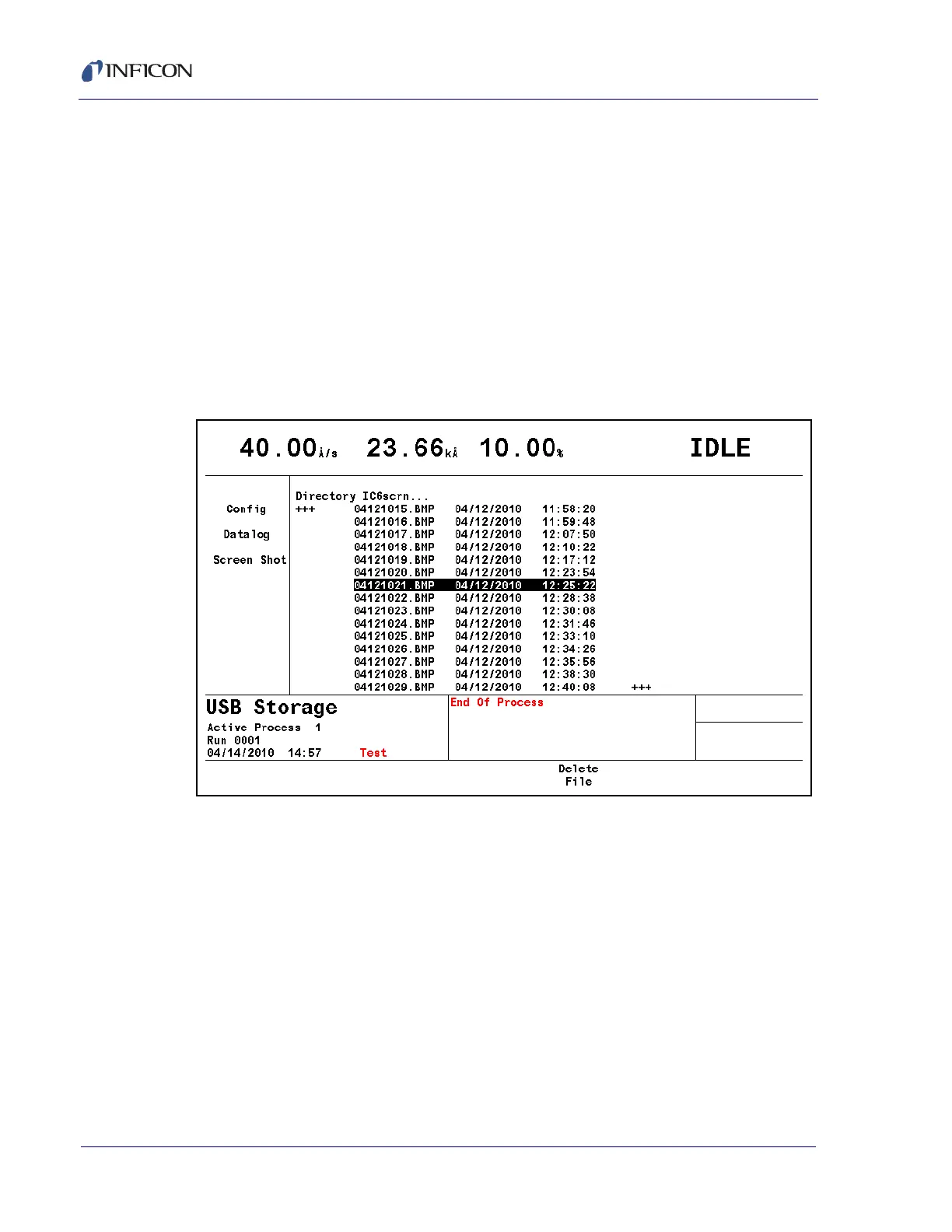

Figure 14-3 Screen capture files
