Wiring
‑122‑

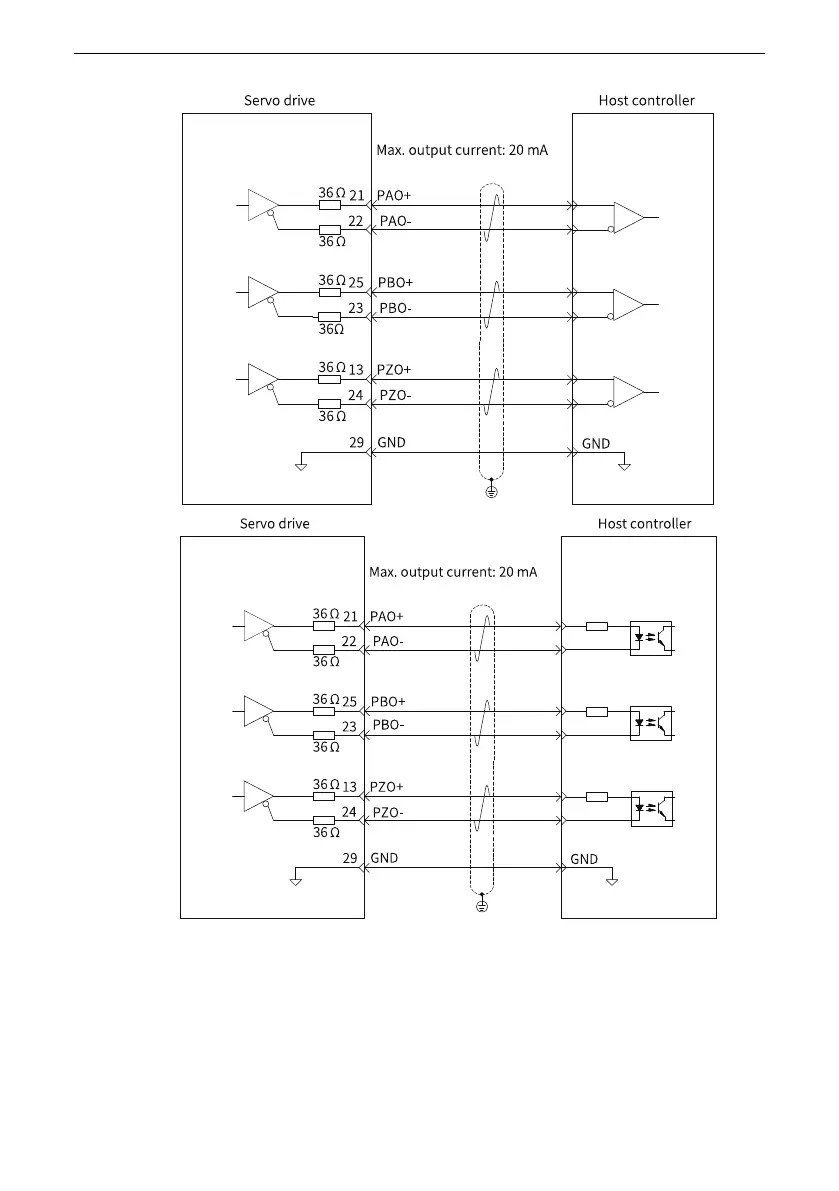

The encoder phase Z frequency‑division output circuit supports open‑collector signal
output. Generally, this circuit serves to provide feedback signals to the host controller
in a position control system. Use an optocoupler circuit, relay circuit, or bus receiver
circuit on the host controller side to receive feedback signals.
