Installation
‑32‑
Servo drives in sizes C, D and E (rated power: 1.0 kW to 7.5 kW) support zero‑clearance
installation between every two servo drives, without the need for derating.

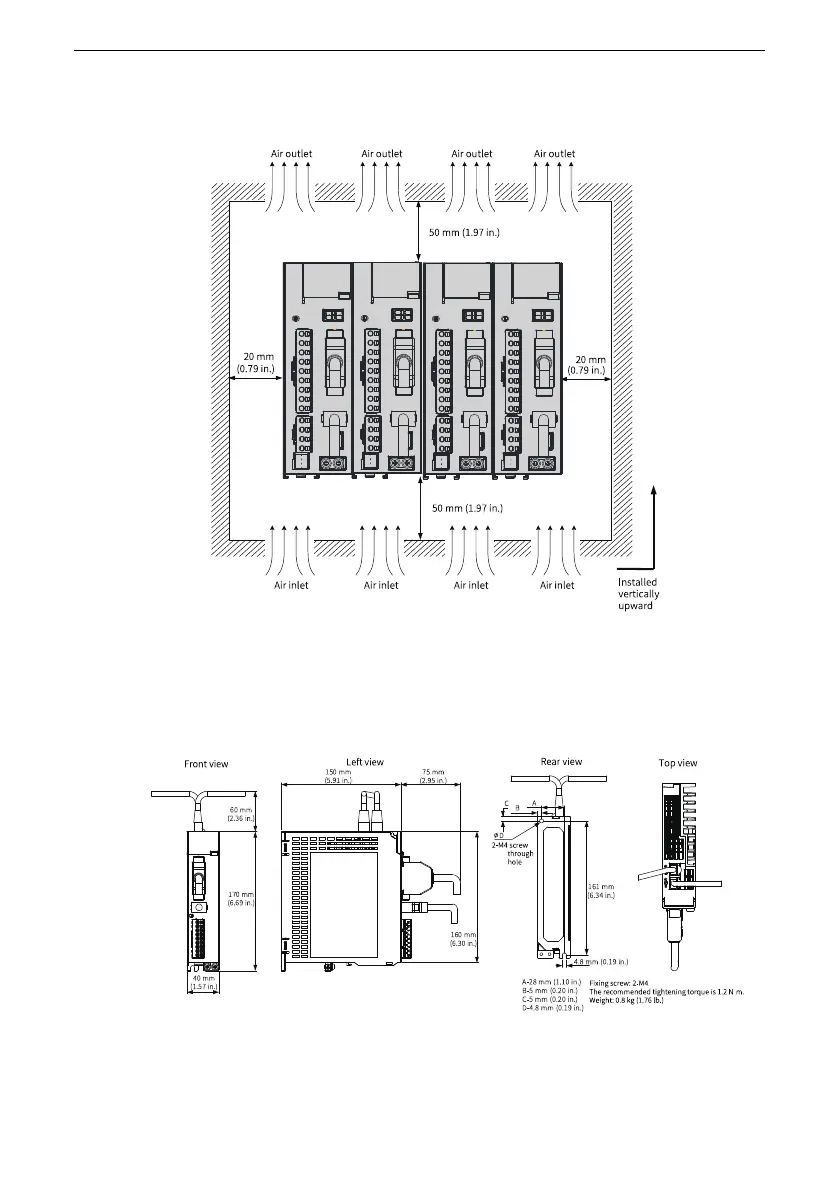

Figure 2‑5 Zero‑clearance installation
2.1.4 Installation Dimensions
Servo drives in size A (rated power: 200 W to 400 W): SV660PS1R6I, SV660PS2R8I
Figure 2‑6 Dimension drawing of servo drives in size A
