Inovance SV660P Series User Manual

Wiring
‑92‑

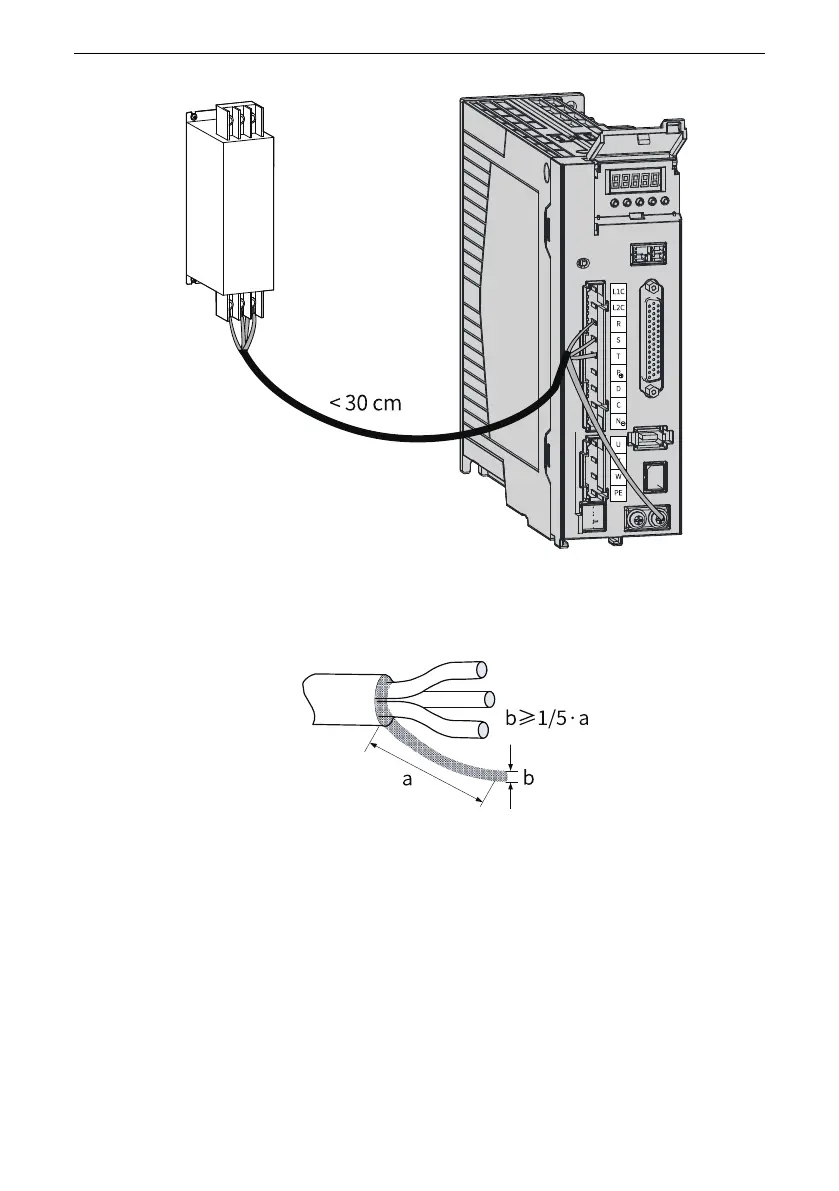

Figure 3‑24 Installing the filter
Keep the lead wire of the motor cable shield as short as possible, with its width (b in
the following figure) not shorter than 1/5 of its length (a in the following figure).
Figure 3‑25 Lead‑out of the motor cable shield
3.5.6 Grounding and Wiring
Observe the following requirements to ensure a proper grounding of the servo drive.
