Wiring
‑57‑
—— Locations with strong electric field or magnetic field
—— Locations with radioactive rays
3.2 System Wiring Diagram

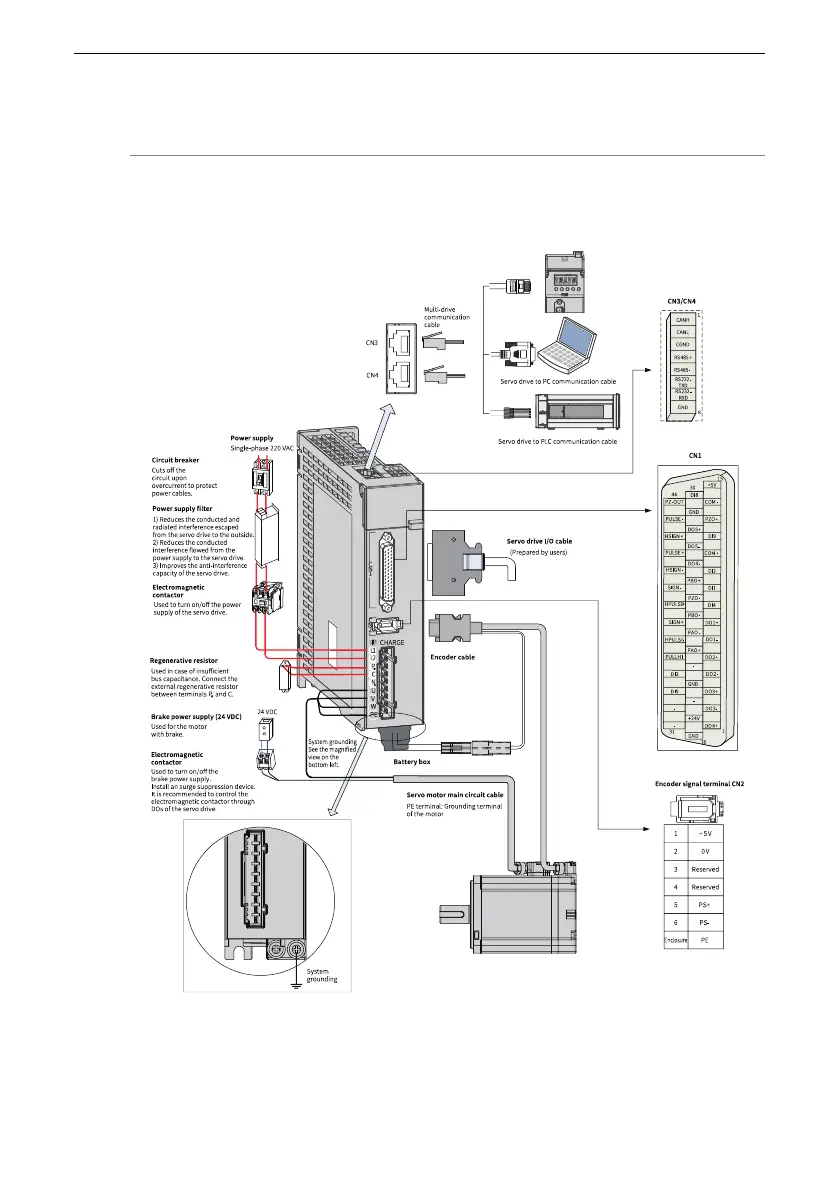

Figure 3‑1 Wiring example of a single‑phase 220 V system
● The servo drive is directly connected to an industrial power supply, with no
isolation such as a transformer. A fuse or circuit breaker therefore must be
connected to the input power supply to prevent electric shock in the servo system.
