Inovance SV660P Series User Manual

Wiring
‑132‑

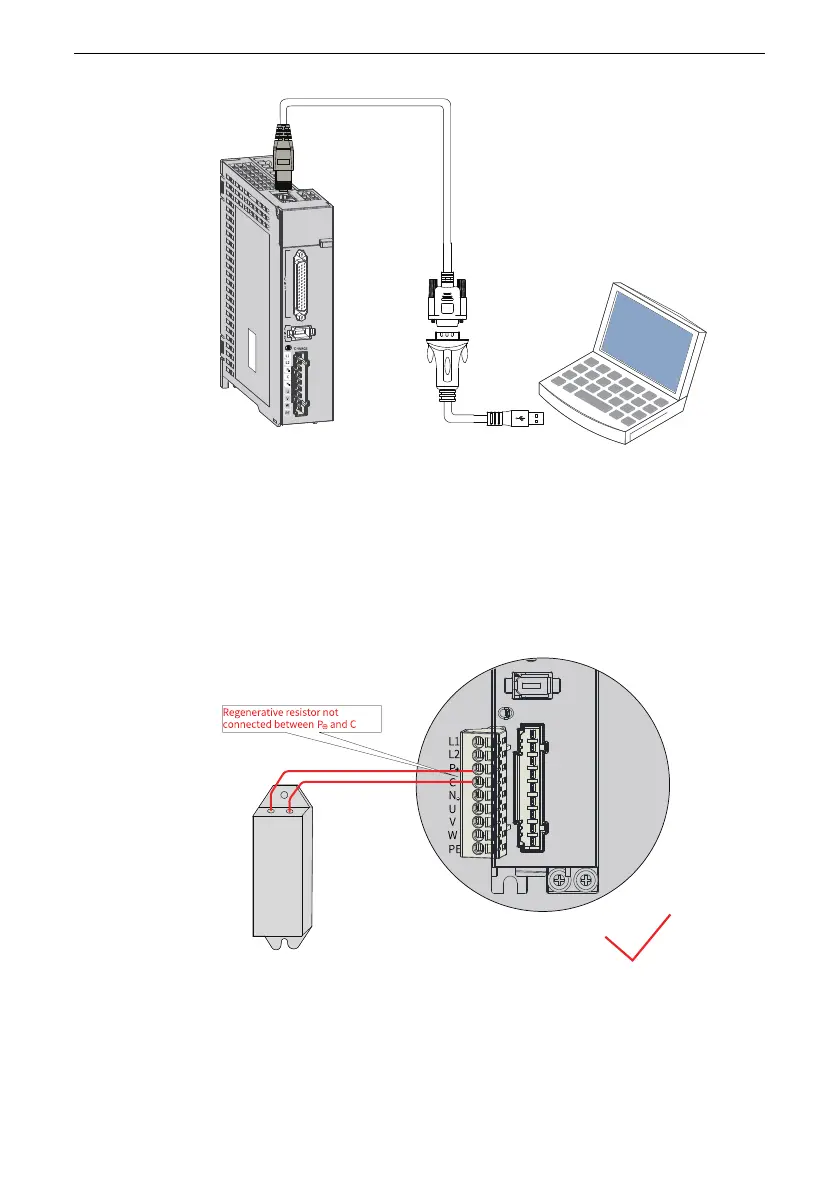

Figure 3‑46 Outline drawing of the PC communication cable
Recommendations: Manufacture: Z‑TEK Model: ZE551A, equipped with a 0.8 m USB
extension cable Chip model: FT232
3.10 Wiring and Setting of the Regenerative Resistor
Connecting the regenerative resistor
Figure 3‑47 Wiring of external regenerative resistor
For cables used for terminals P⊕ and C, see “ 3.5.3 Recommended Cable
Specifications and Models
” on page 84 .
