1.4.6 Servo Motors in Flange Sizes 100/130/180

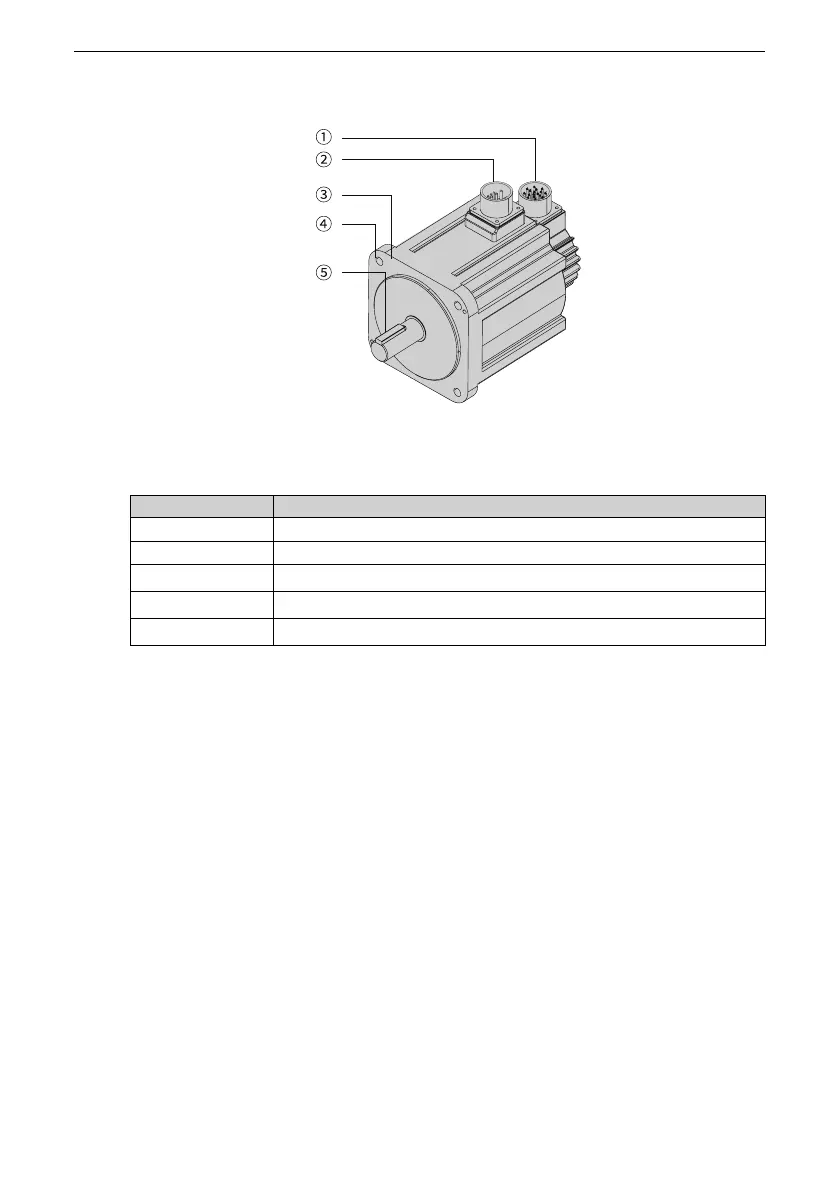

Figure 1‑14 Components of servo drives in flange sizes 100/130/180
Table 1–8 Components of servo drives in flange sizes 100/130/180
No. Name
1
Encoder connector
2
Power cable connector
3
Mounting flange face
4
Mounting screw through‑hole
5
Shaft extension (with key)
