2.2.3 Installation Dimensions

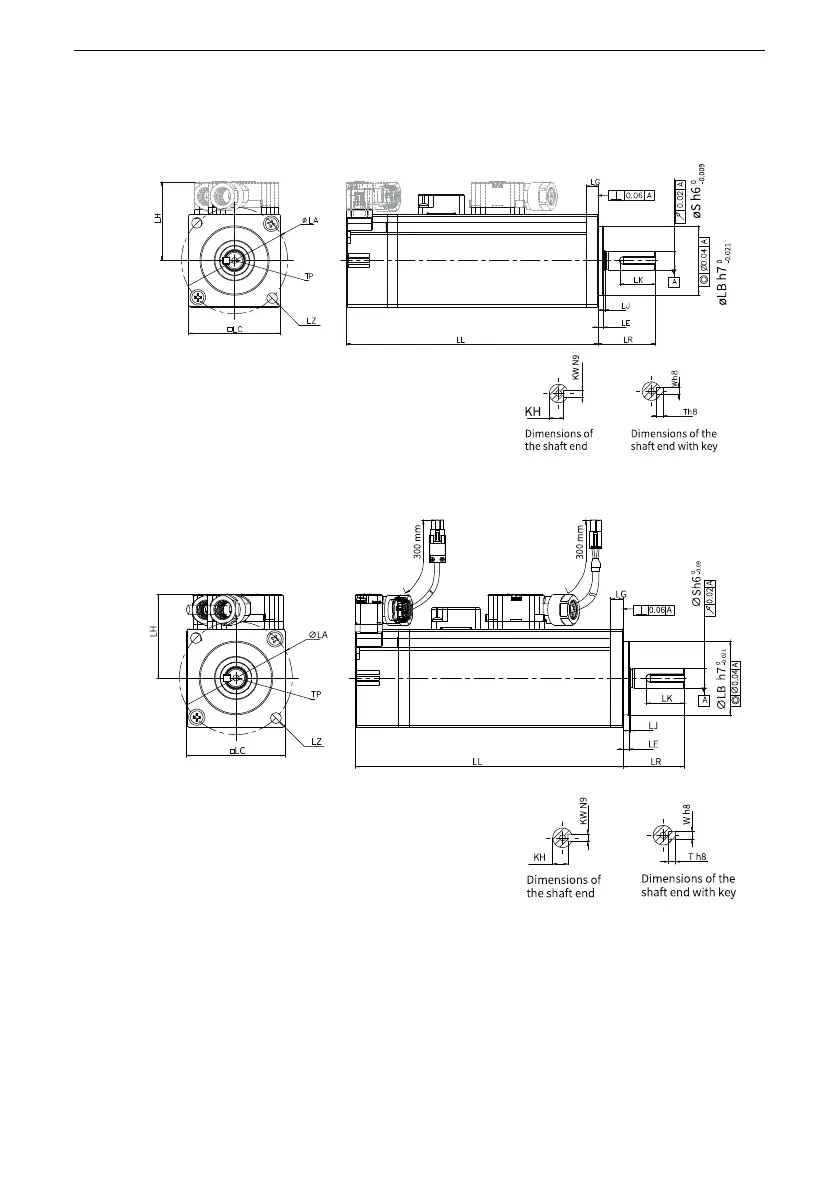

Dimension drawings of MS1H1 series motors

Figure 2‑12 Dimension drawing of terminal‑type motors

Figure 2‑13 Dimension drawing of lead wire‑type motors
