Product Information
‑17‑
1.4.2 Servo Drives in Size B (Rated Power: 750 W)

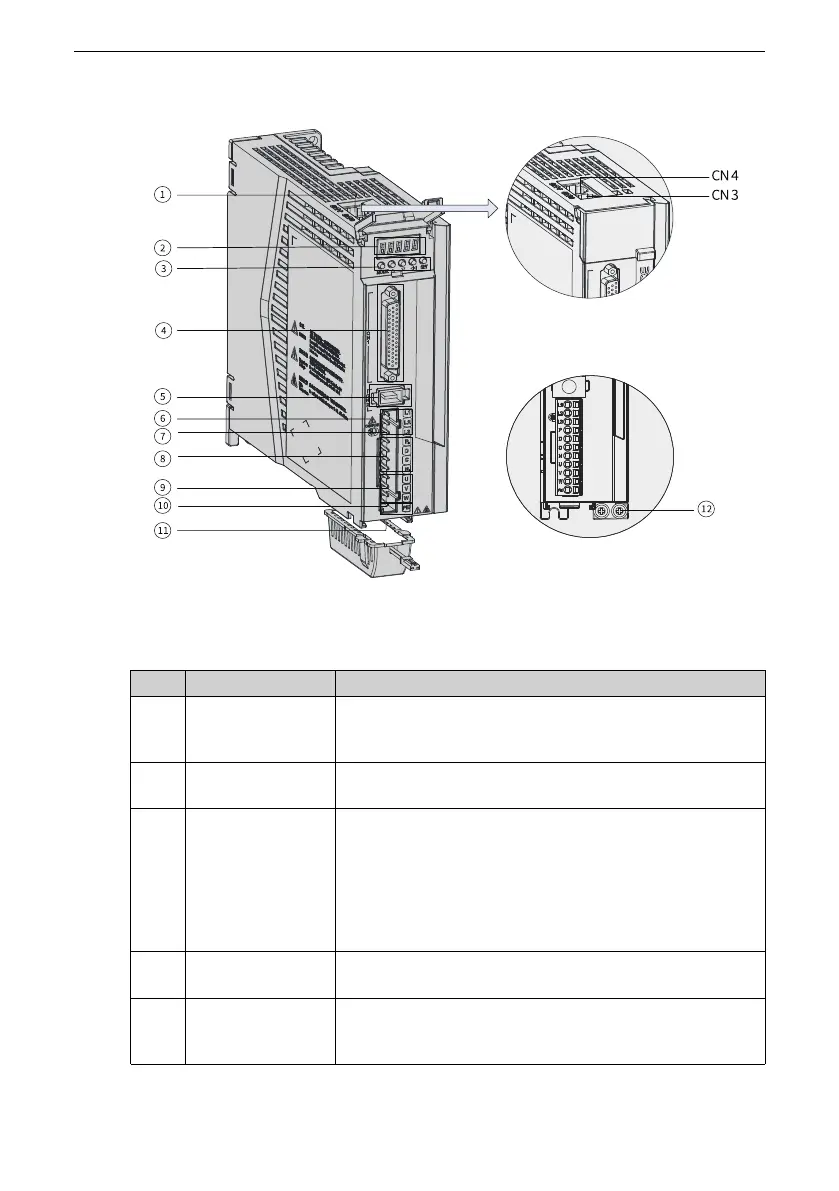

Figure 1‑8 Description of servo drive components (SV660PS5R5I)
Table 1–2 Description of servo drive components (SV660PS5R5I)
No. Name
Description
1
CN3, CN4
(communication
terminals)
Connected to RS232 and RS485 host controllers in parallel.
2
5‑digit LED display
Used to display the servo drive operating status and set
parameters.
3
Keys
MODE: Used to switch parameters in sequence.
△: Used to increase the value of the blinking bit.
▽: Used to decrease the value of the blinking bit.
◁: Used to shift the blinking bit leftwards.
(Hold down: Turning to the next page when the displayed
number exceeds five digits)
SET: Used to save modifications and enter the next menu.
4
CN1 (control
terminal)
Used by reference input signals and other I/O signals.
5
CN2 (terminal for
connecting the
encoder)
Connected to the motor encoder terminal.
