Inovance SV660P Series User Manual

Wiring
‑104‑
Table 3–26 Design life of the absolute encoder battery
Item
Schedule 1 Schedule 2
Working Days in Different
Operating Conditions in 1
Year
313 52
T1 (h)
8 0
T2 (h)
0.1 0
T3 (h)
15.9 24
Capacity consumed in 1 year = (8 h x 2 uA + 0.1 h x 80 uA + 15.9 h x 10 uA) x 313 + (0 h x
2 uA + 0 h x 80 uA +24 h x 10 uA) x 52 ≈ 70 mAH
Design life = Battery capacity/Capacity consumed in 1 year = 2600 mAH/70 mAH = 37.1
years
3.7.2 Absolute Encoder Cable Connection
2-
1-
C
SUNCHU
SC-06

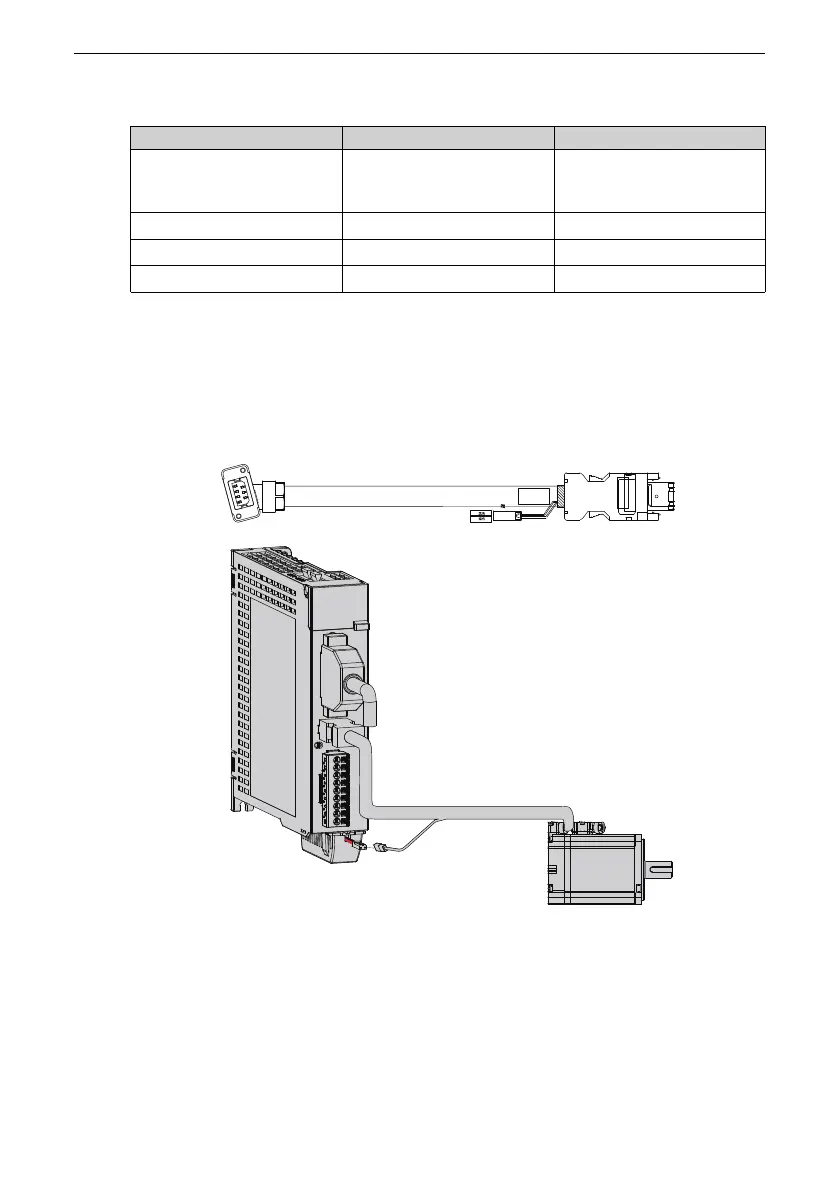

Figure 3‑30 Wiring example of absolute encoder signals
