Wiring
‑105‑

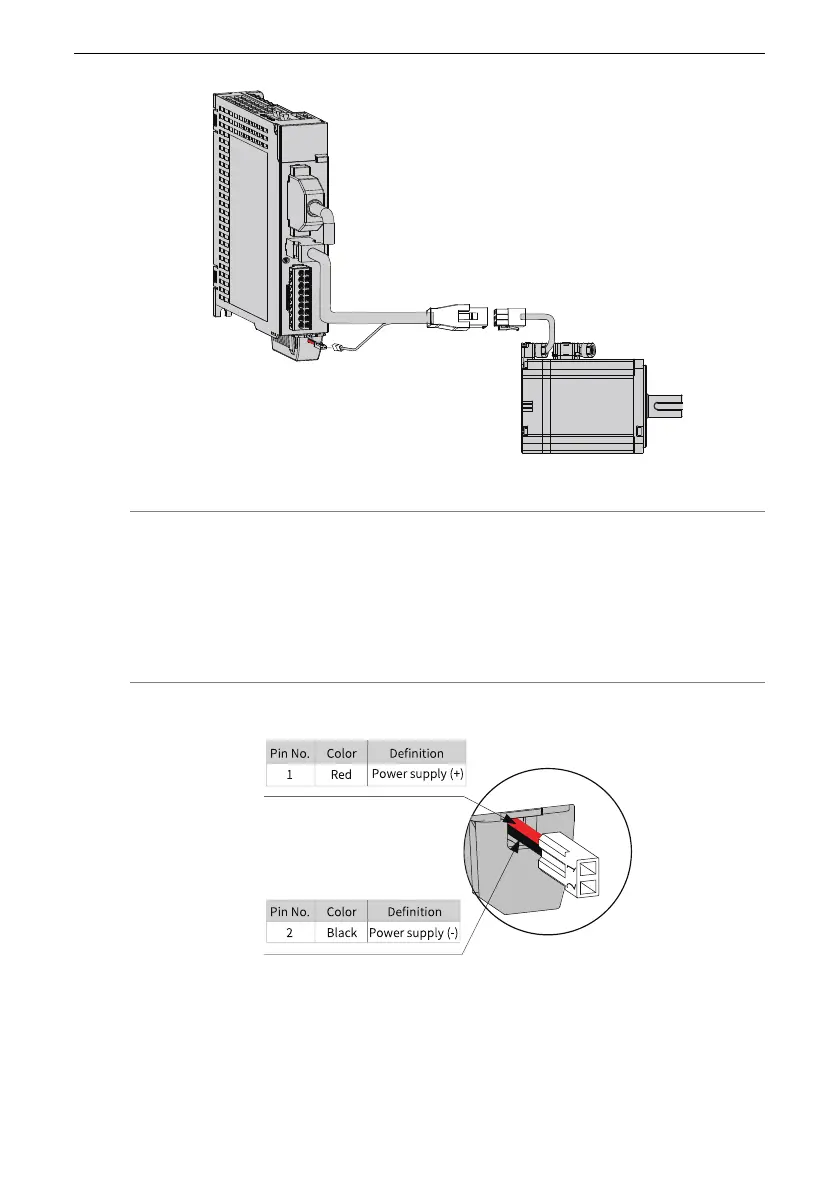

Figure 3‑31 Wiring example of absolute encoder signals
[1]
Note
● [1] The preceding figure shows the wiring diagram of the absolute encoder cable,
which is similar to that of the incremental encoder (without a battery box). The
cable for the incremental encoder needs to be purchased separately.
● The encoder cable color is subject to the color of the actual product. Cable colors
mentioned in this guide all refer to Inovance cables.
Lead wires of the battery box:
Figure 3‑32 Description of the lead wire color of the battery box
