Installation
‑37‑

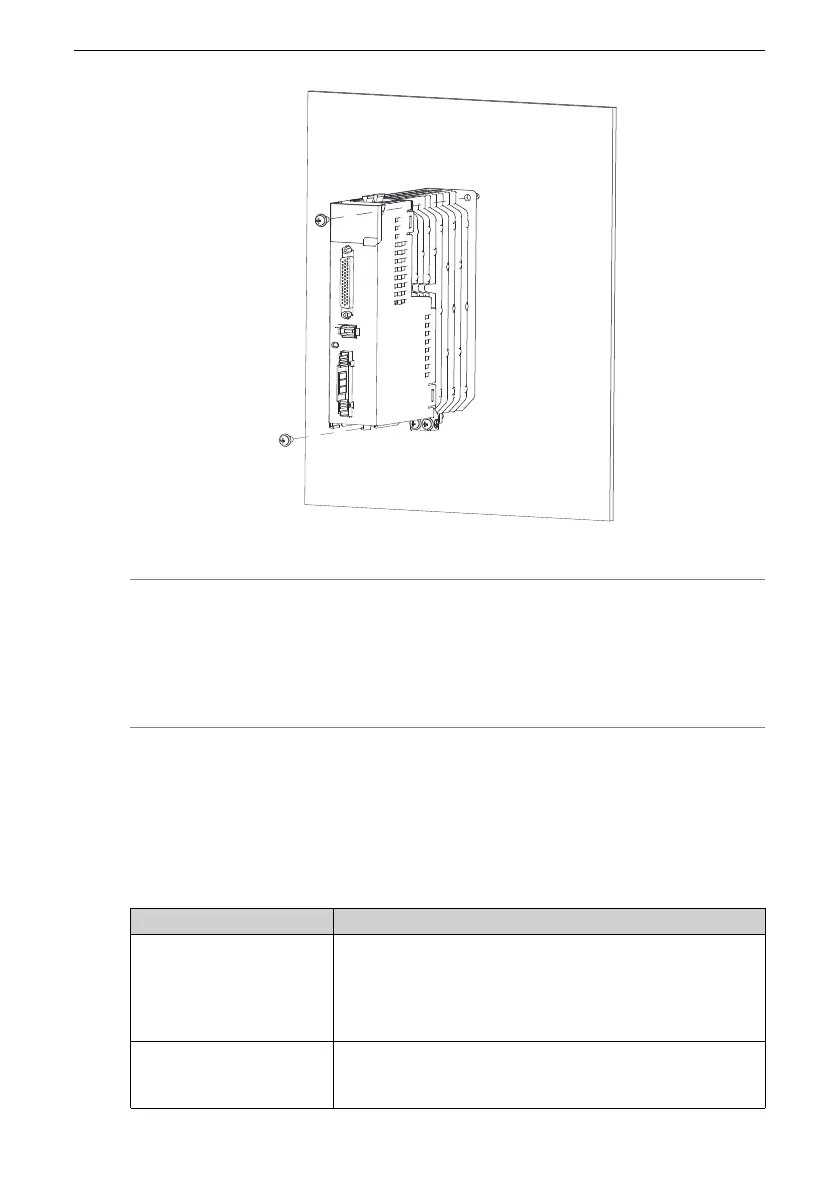

Figure 2‑11 Backplate mounting
Note
Servo drives in sizes A, B, and C are secured by two screws, with one screw on the top and
the other one at the bottom. Servo drives in size D are secured by three screws, with two
screws on the top and another one at the bottom. Servo drives in size E are secured by four
screws, with two screws on the top and the other two at the bottom.
2.2 Installing the Servo Motor
2.2.1 Unpacking Inspection
Check the following items upon unpacking.
Items
Description
Check whether the
delivered product is
consistent with your order.
Check whether the motor model and specifications comply
with your order.
Note:
Check whether the packing box is intact. If the packing box
is damaged, contact your supplier immediately.
Check whether the product
is intact.
Check whether the product delivered is in good condition. If
there is any part missing or damaged, contact Inovance or
your supplier immediately.
