Wiring
‑97‑
Recommended grounding cable lug for the main circuit

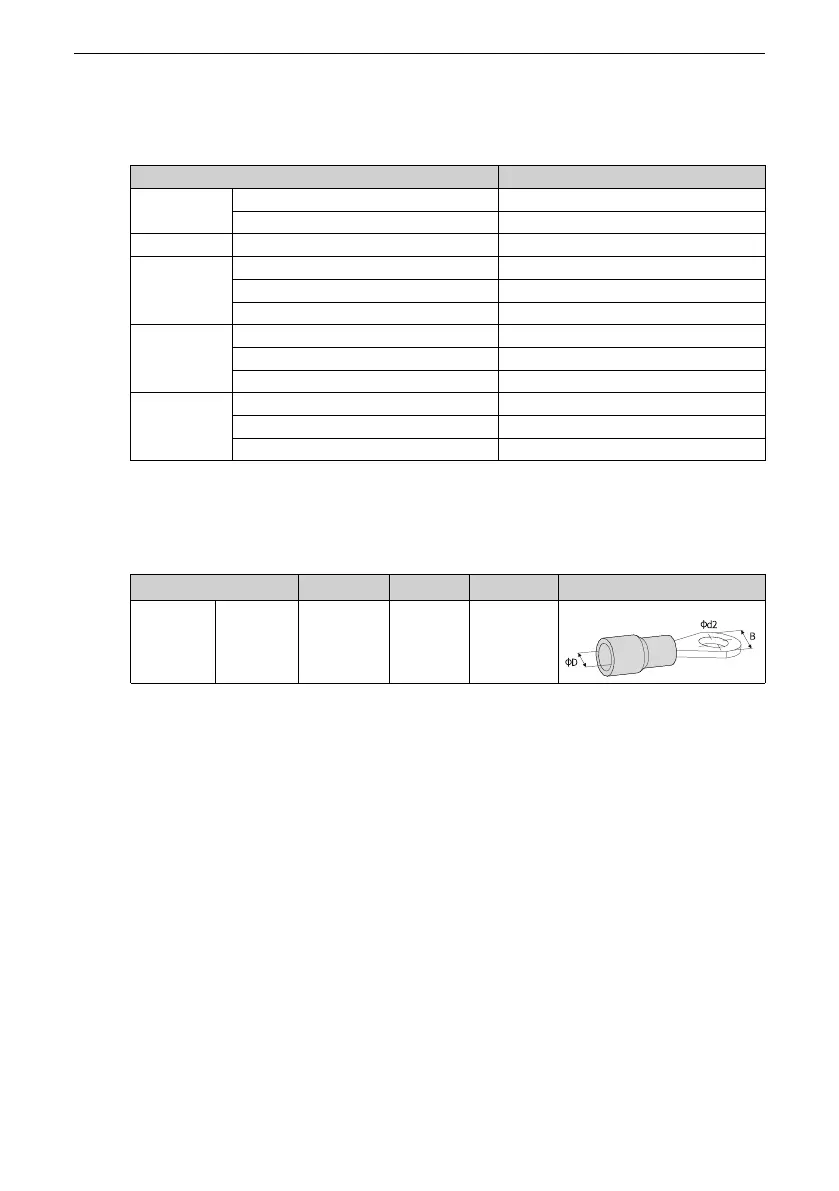

Table 3–19 Recommended grounding cable lug for the main circuit
Servo Drive Model SV660P****I
PE
Size A
SV660PS1R6I TVR 2‑4
SV660PS2R8I TVR 2‑4
Size B SV660PS5R5I TVR 2‑4
Size C
SV660PS7R6I TVR 2‑4
SV660PT3R5I TVR 2‑4
SV660PT5R4I TVR 2‑4
Size D
SV660PS012I TVR 2‑4
SV660PT8R4I TVR 2‑4
SV660PT012I TVR 2‑4
Size E
SV660PT017I TVR 2‑4
SV660PT021I TVR 2‑4
SV660PT026I TVR 2‑4
The following table lists the data for recommended cable lugs (manufacturer: Suzhou
Yuanli Metal Enterprise Co., Ltd) for your reference.
Table 3–20 Dimension drawing of the grounding cable lug
Model
D (mm) d2 (mm) B (mm)
Dimension Drawing
TVR 2‑4 4.5 4.3 8.5
3.6 Connecting the Motor (UVW)
● The following figure shows the wiring diagram for a terminal‑type motor.
