Installation
‑31‑

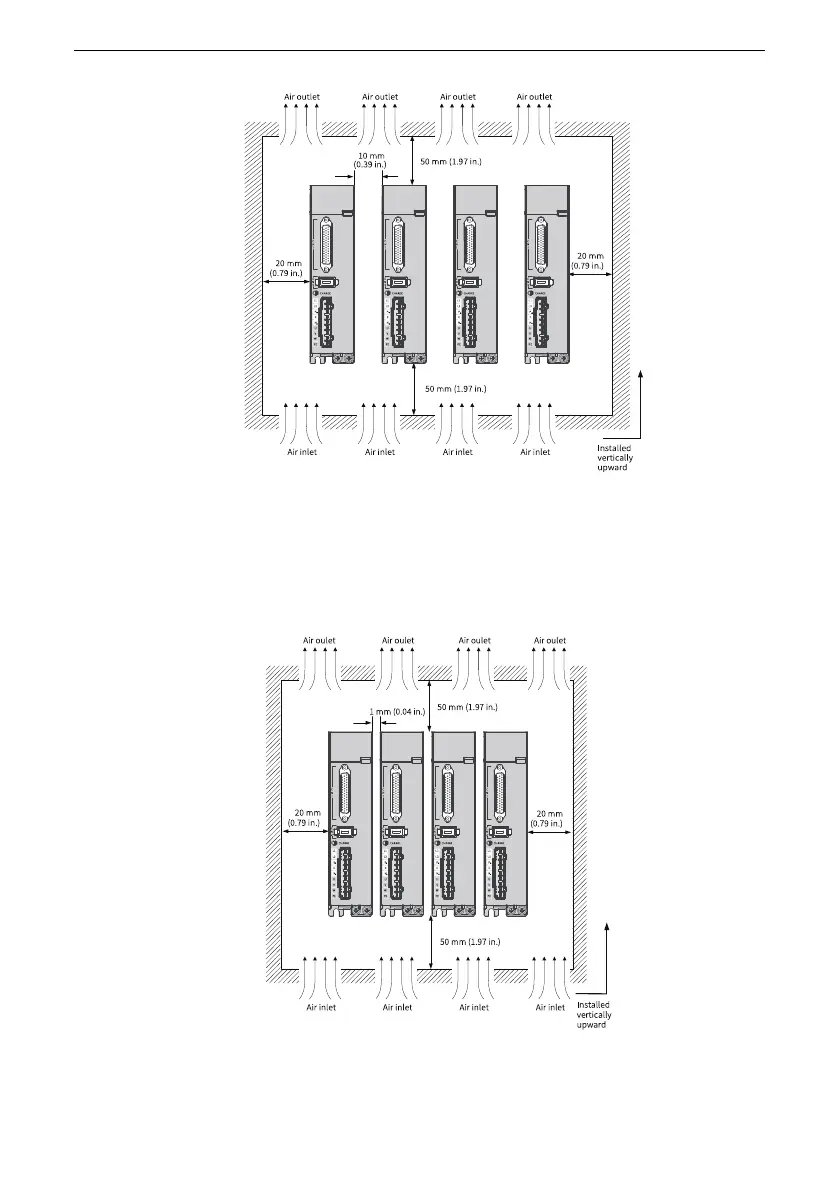

Figure 2‑3 Clearance for side‑by‑side installation
Servo drives in size A and size B (rated power: 200 W to 750 W) support compact
installation, in which a clearance of at least 1 mm (0.04 in.) must be reserved between
every two servo drives. When adopting compact installation, derate the load rate to
75%.
Figure 2‑4 Clearance for compact installation
