Integra DRX-8.4 - Page 53

7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
7.1.4ch
5.1ch
53
Speaker Connections

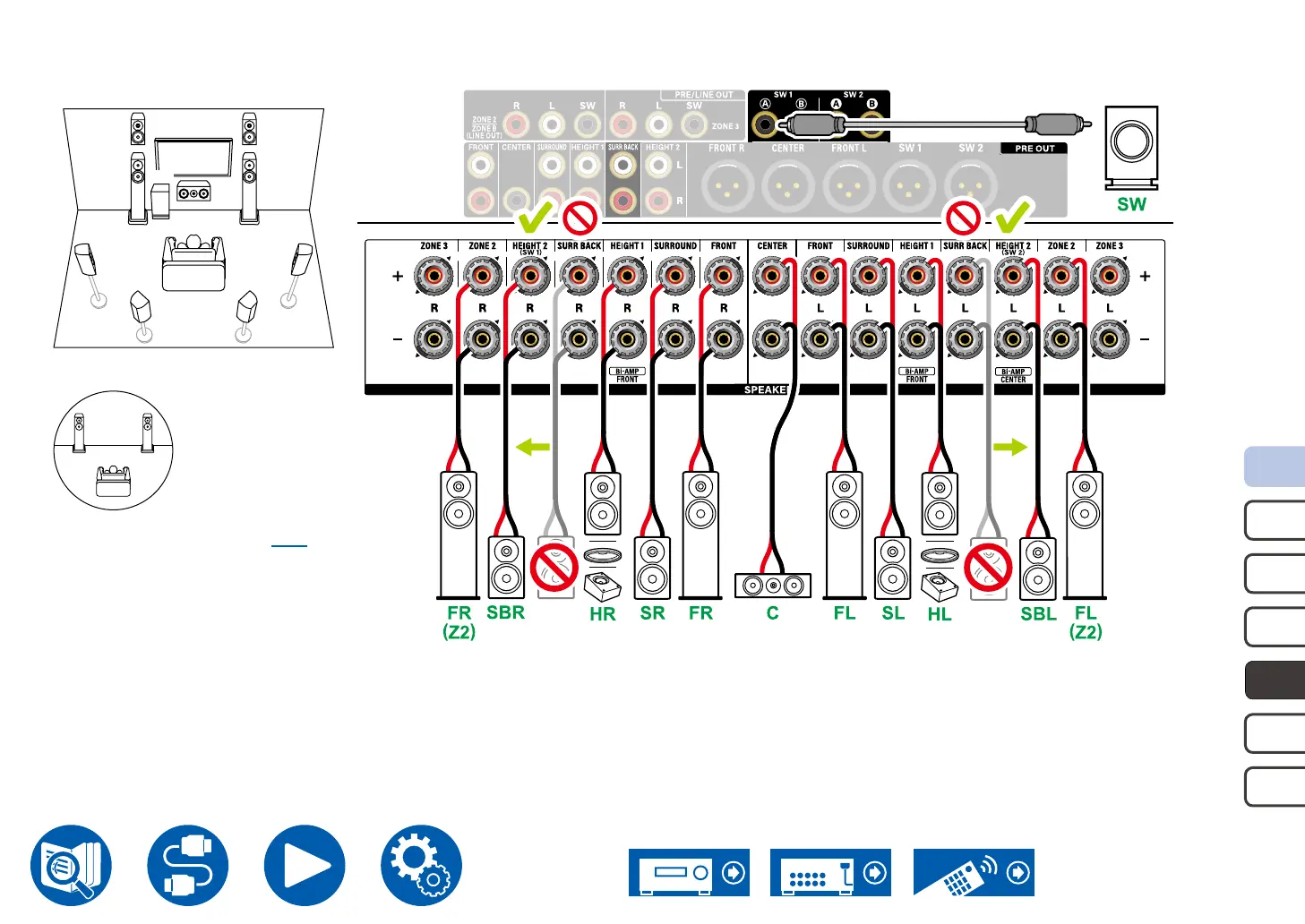

 7.1.2 Channel System + ZONE SPEAKER (ZONE 2)
FL FR
SL SR
SBL SBR
C
SW
HRHL
MAIN ROOM
– Playing Back (ZONE 2) ( →p108)
ZONE 2
FL(Z2)FR(Z2)
• Surround back speakers need to be connected to the HEIGHT 2 jacks.
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
*1*1
