Speaker Connections

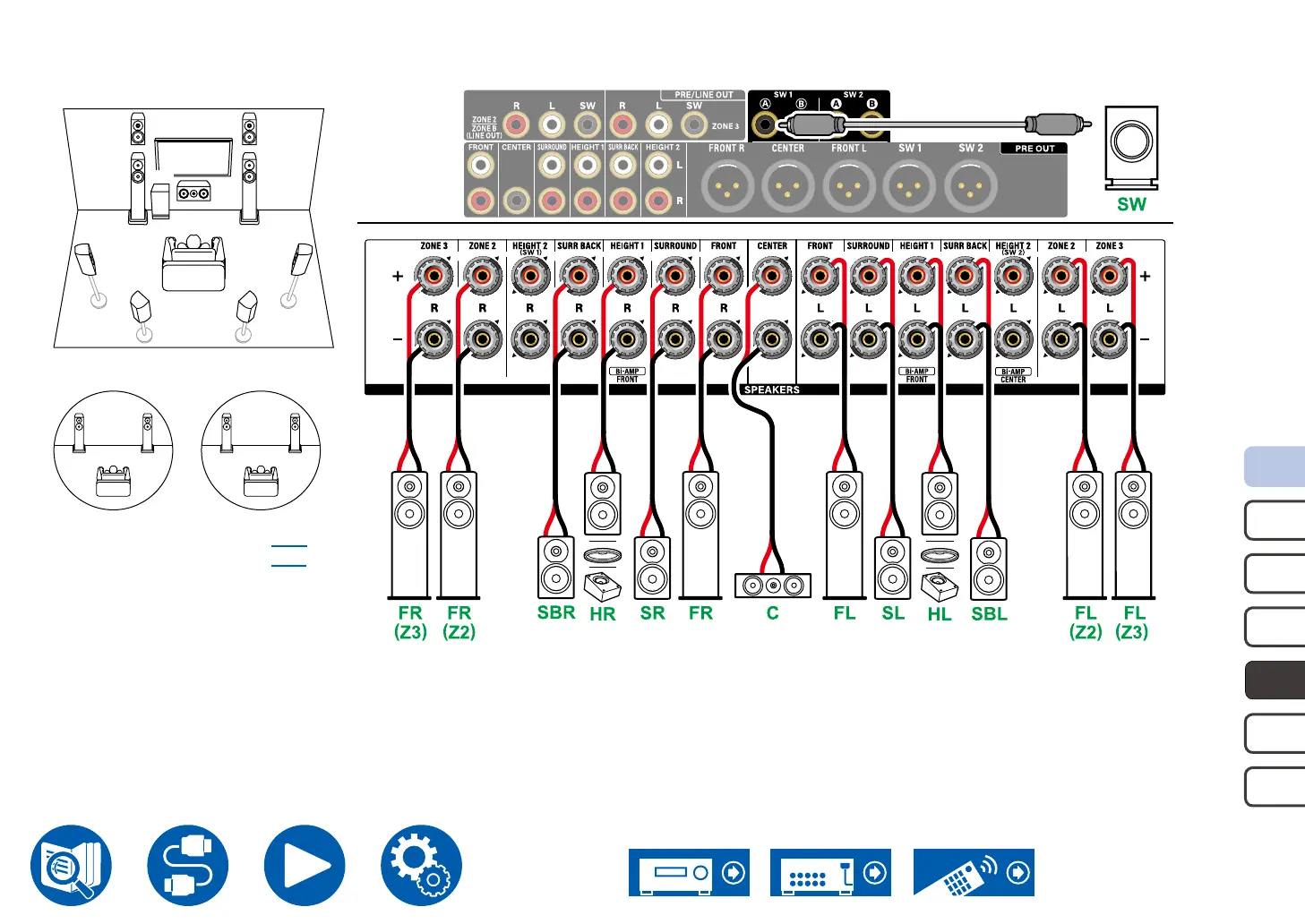

7.1.2 Channel System + ZONE SPEAKER (ZONE 2/ZONE 3)
FL FR
SL SR
SBL SBR
C
SW
HRHL
MAIN ROOM
Playing Back (ZONE 2) ( p108)
Playing Back (ZONE 3) ( p110)
FL(Z3)FR(Z3)
ZONE 2
FL(Z2)FR(Z2)
ZONE 3
While ZONE 2/ZONE 3 playback is being performed, surround back speakers installed in the main room cannot play audio.
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
*1*1
