Speaker Connections

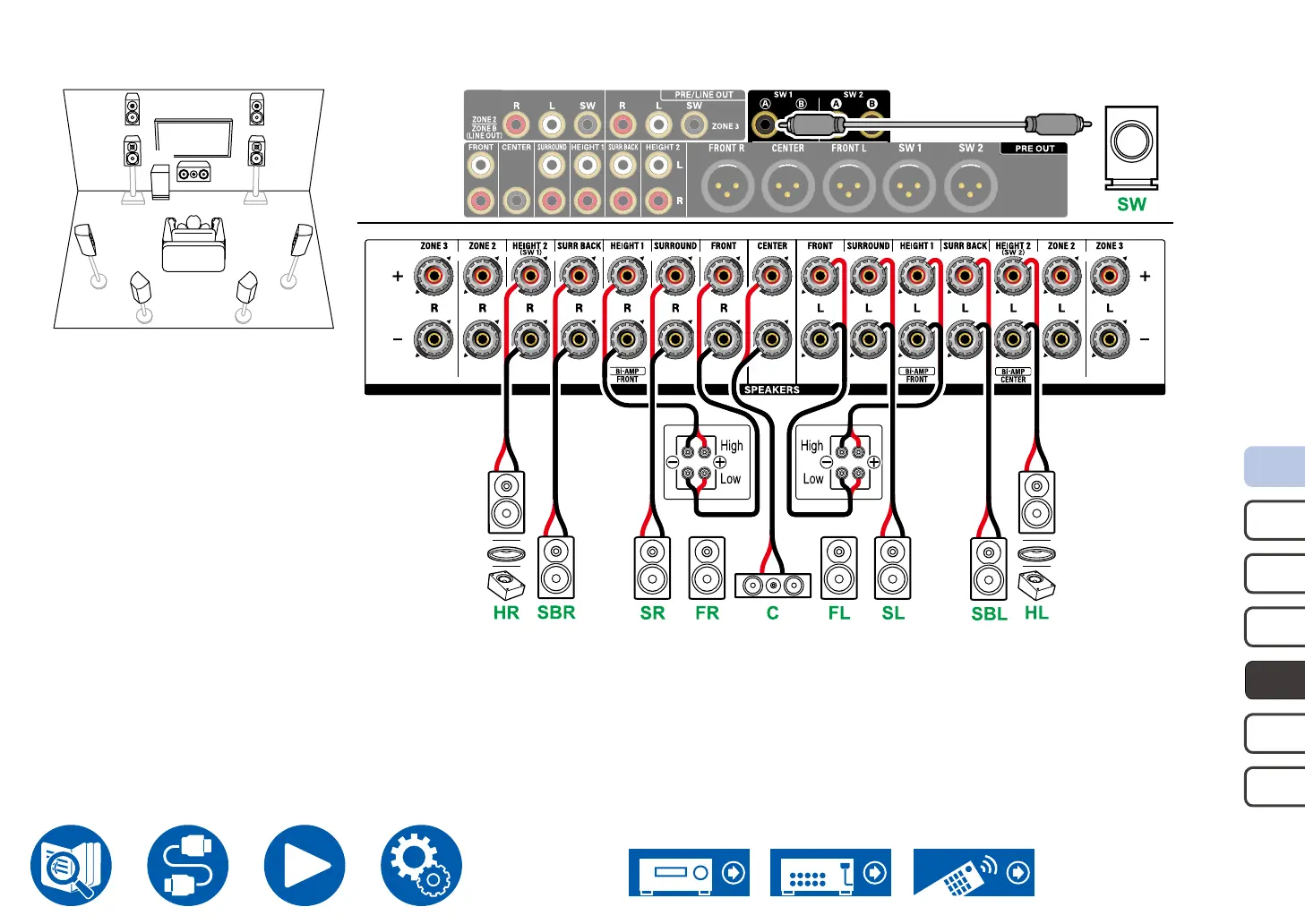

 7.1.2 Channel System (Bi-Amping the Speakers)
FL FR
SL SR
SBL SBR
C
SW
HR
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
*1 *1
