Speaker Connections

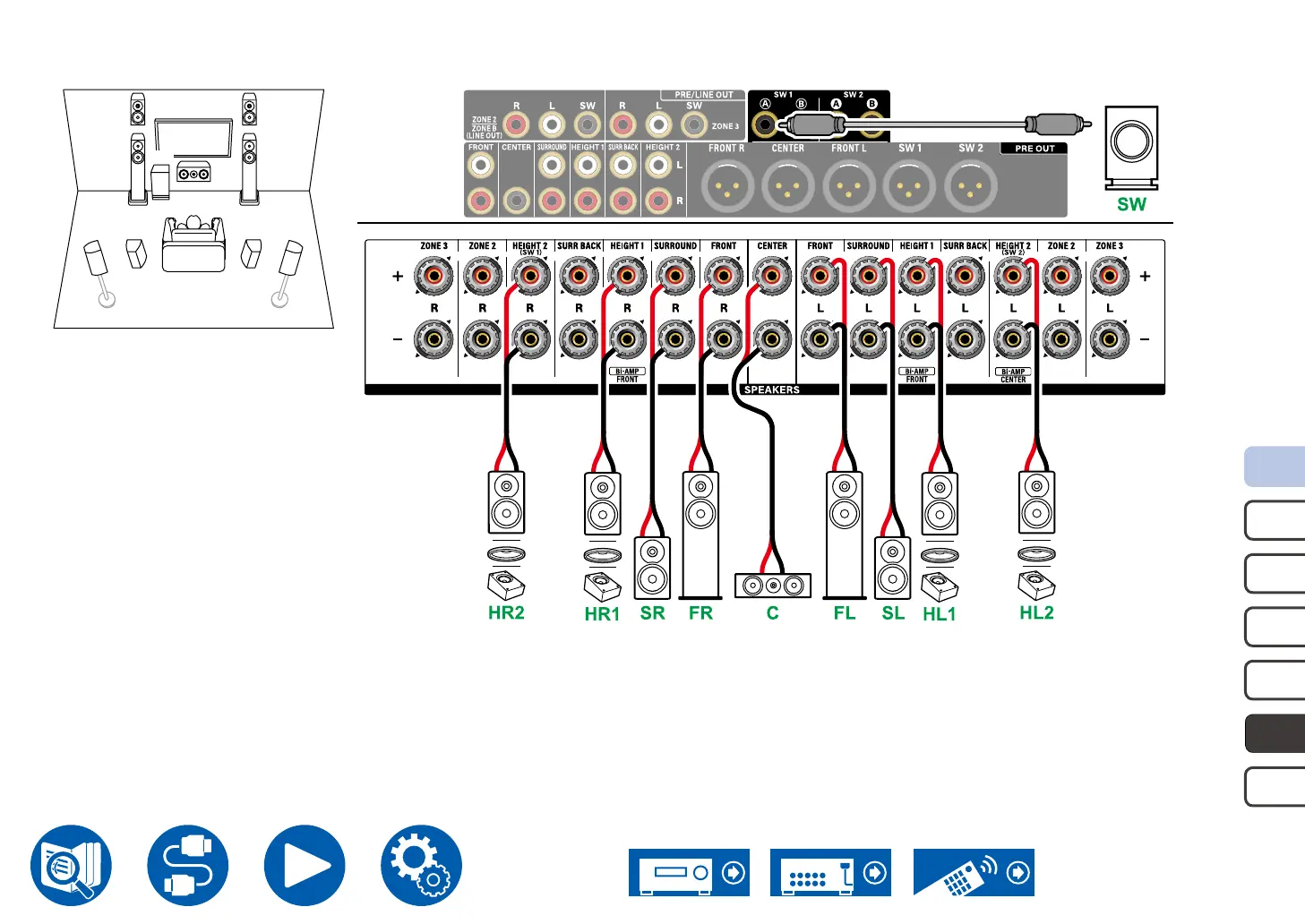

 5.1.4 Channel System
SL SR
FL FR
C
SW
HL1 HR1
HR2HL2
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).
*1 *2*2 *1
