Desktop Board Features
11
Desktop Board Components
Figure 1 shows the locat ion of t he m aj or com ponents on I nt el Deskt op Board
D2550DC2.

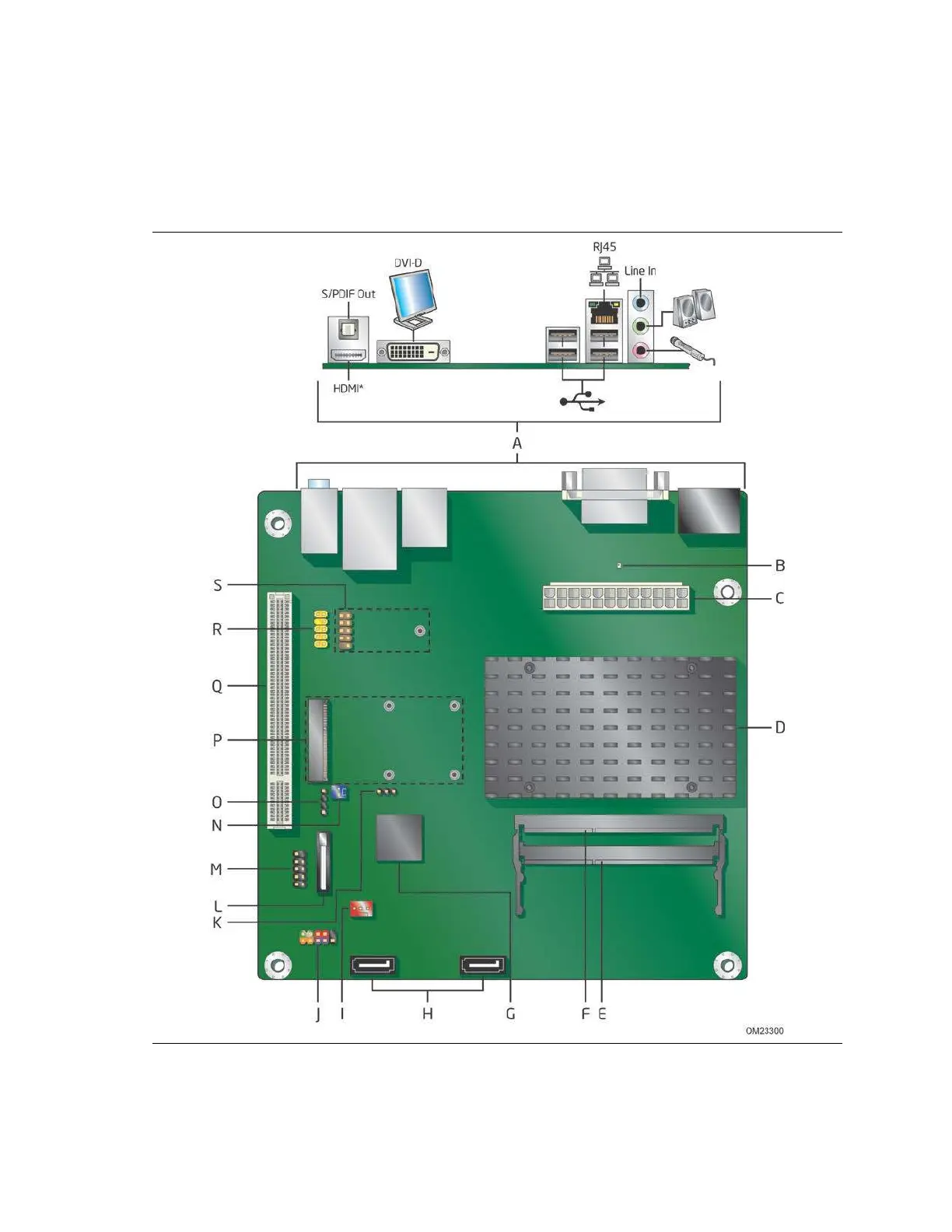

Figure 1. Intel Desktop Board D2550DC2 Components
