Installing and Replacing Desktop Board Components
37
Connecting a System Fan
Figure 12 show s t he locat ion of t he syst em fan header. Connect the syst em fan cable
to t his header.

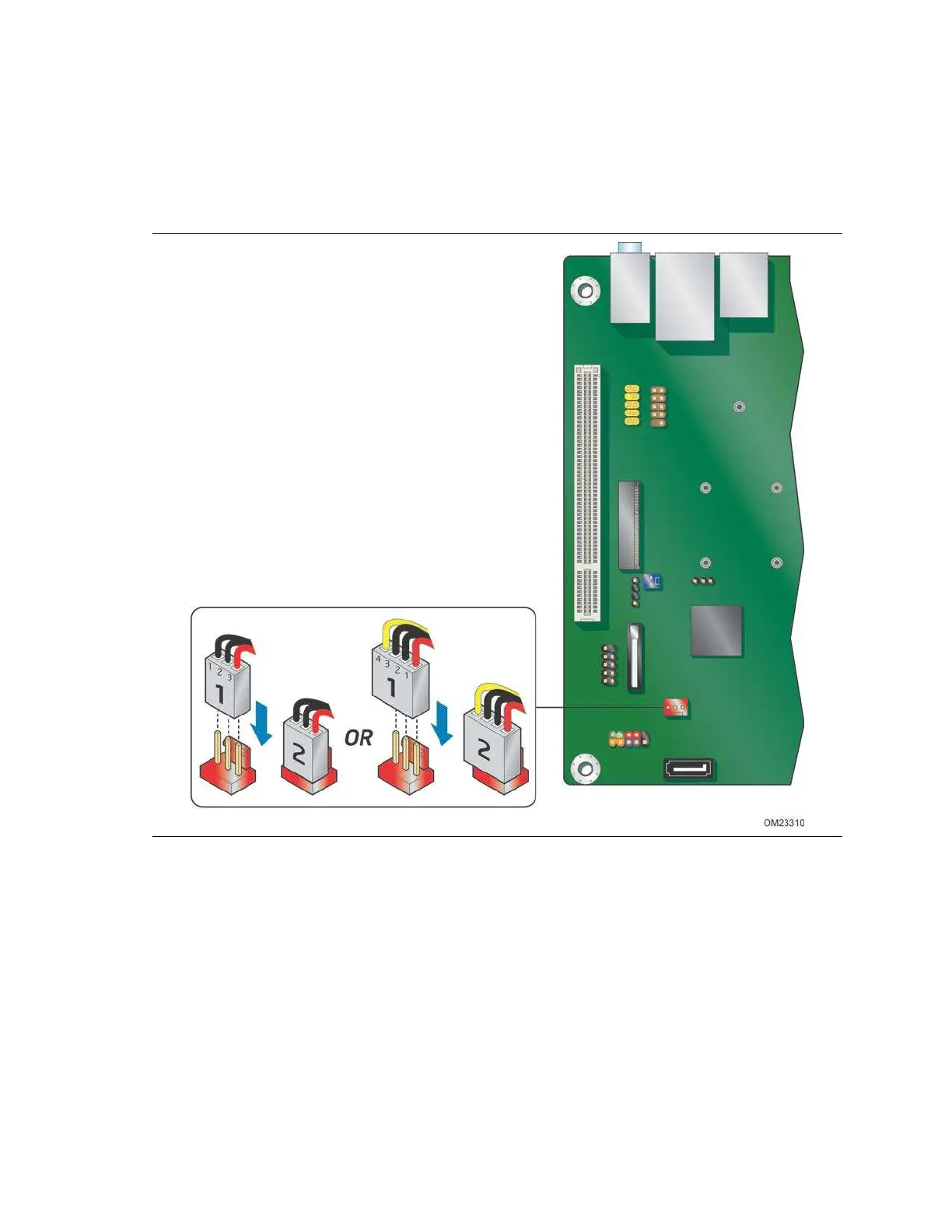

Figure 12. Location of the System Fan Header
