Intel S2600IP User Manual

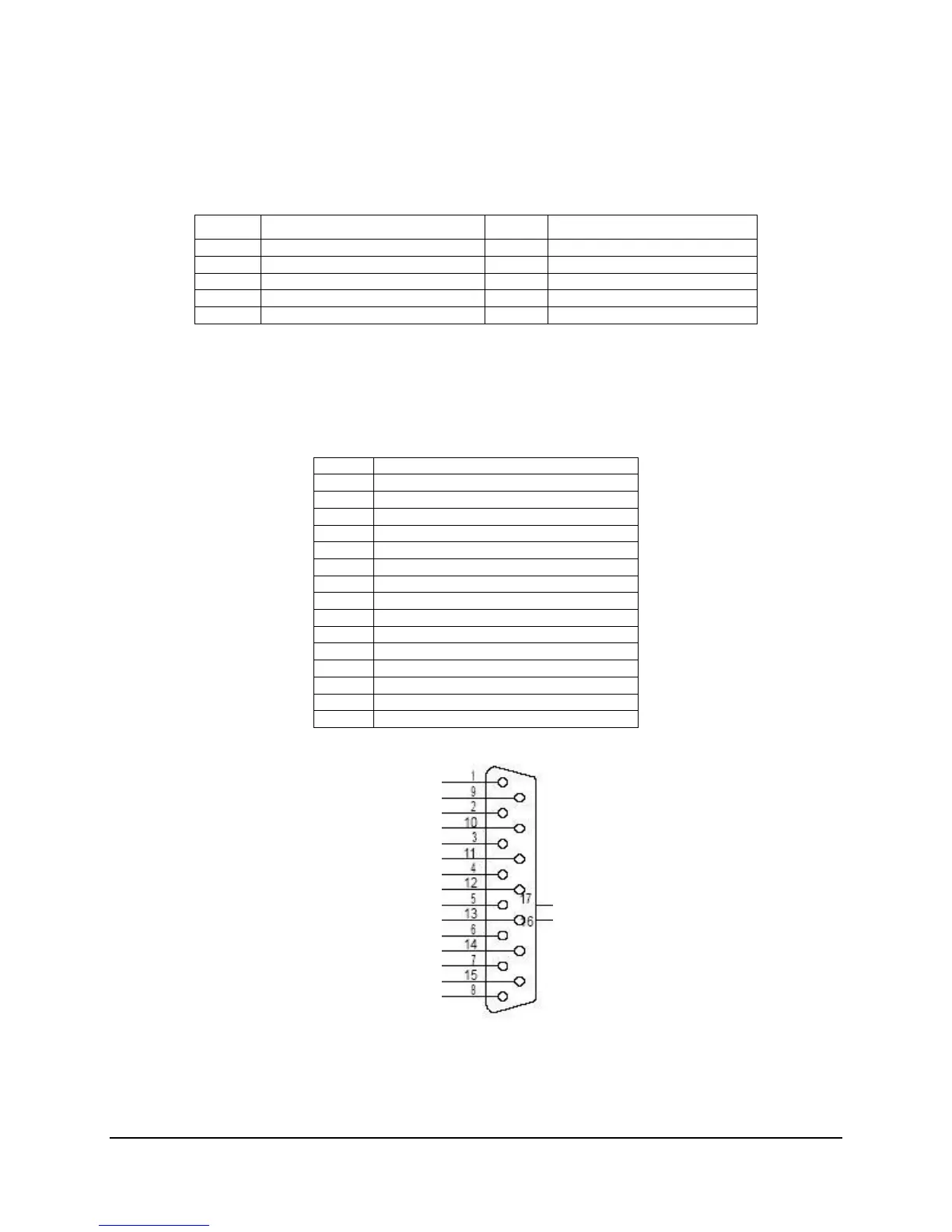

Connector/Header Locations and Pin-outsIntel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS
98 Revision 1.1
Intel order number G34153-003
6.6.2 Serial Port B Connector
Serial-B is an internal 10-pin DH-10 connector and has the following pin-out.
Table 54. Serial Port B Connector Pin-out
Pin
Signal Name
Pin
Signal Name
1
SPA_DCD
2
SPA_DSR
3
SPA_SIN
4
SPA_RTS
5
SPA_SOUT_N
6
SPA_CTS
7
SPA_DTR
8
SPA_RI
9
GND
6.6.3 Video Connector (For Intel
®
Server Board S2600IP only)
The following table details the pin-out definition of the external VGA connector.
Table 55. Video Connector Pin-out details
Figure 27. Video Connector Pin-out
Pin
Signal Name
1
CRT_RED
2
CRT_GREEN
3
CRT_BLUE
4
N/C
5
GND
6
GND
7
GND
8
GND
9
P5V
10
GND
11
NC
12
CRT_DDCDATA
13
CRT_HSYNC
14
CRT_VSYNC
15
CRT_DDCCLK
