Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS Functional Architecture
Revision 1.1 41
Intel order number G34153-003
LED Color
LED State
NIC State
Green/Amber (Right)
Off
10 Mbps
Amber
100 Mbps
Green
1000 Mbps
Green (Left)
On
Active Connection
Blinking
Transmit/Receive activity

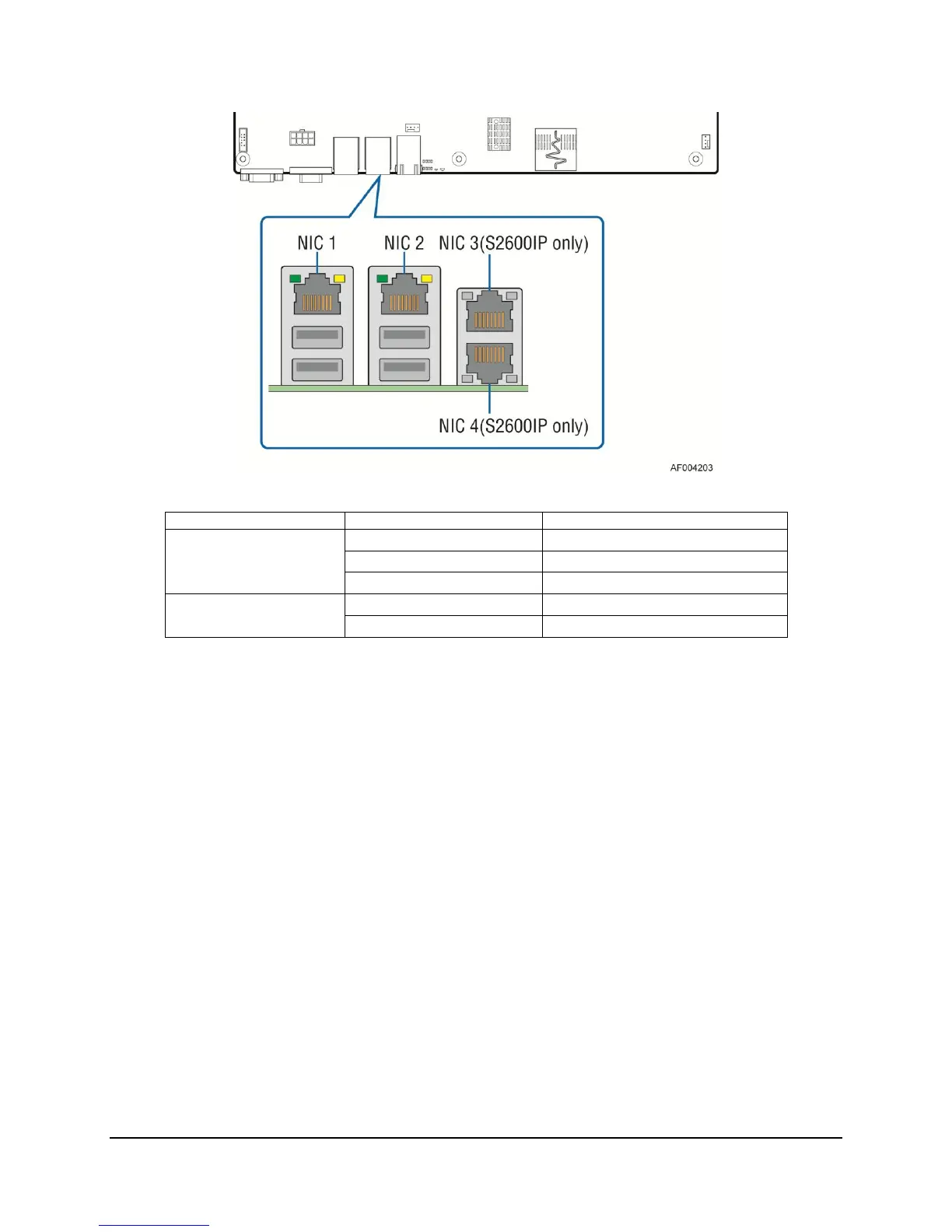

Figure 20. External RJ45 NIC Port LED Definition
3.6 I/O Module Support (not avaiable for Intel
®
Server Board
S2600IP4L and Intel
®
Workstation Board W2600CR2L)
To broaden the standard on-board feature set, the server board supports the option of adding a
single I/O module providing external ports for a variety of networking interfaces. The I/O module
attaches to a high density 80-pin connector on the server board labeled “IO_Module”.
Supported I/O modules include:
