Product Overview Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS
8 Revision 1.1
Intel order number G34153-003
Callout
Description
Callout
Description
Q
SPDIF connector
AU
HDD LED
R
USB 2/3, NIC 2
AV
ME FRC UPDT
S
USB 0/1, NIC 1
AW
CMOS CLR
T
USB3.0 0/1(W2600CR only)
AX
BIOS RCVRY
U
HD Audio (W2600CR only)
AY
PASSWD CLR
V
Processor 2 Power connector
AZ
Storage Upgrade Key
W
Front Audio connector
BA
eUSB SSD
X
Processor 2 Fan connector
BB
HSBP connector
Y
DIMM H2/H1/G2/G1
BC
Chassis intrusion
Z
PMBus* connector
BD
Serial B connector
AA
Main Power connector
BE
BMC Force Update
AB
Processor 1 Power connector
BF
I/O Module connector (not available
for W2600CR2L)
AC
DIMM B2/B1/A2/A1
BG
Internal video connector
AD
Processor 1 Fan connector
BH
System Fan connector 7
Figure 3. Intel
®
Workstation Board W2600CR Major Components

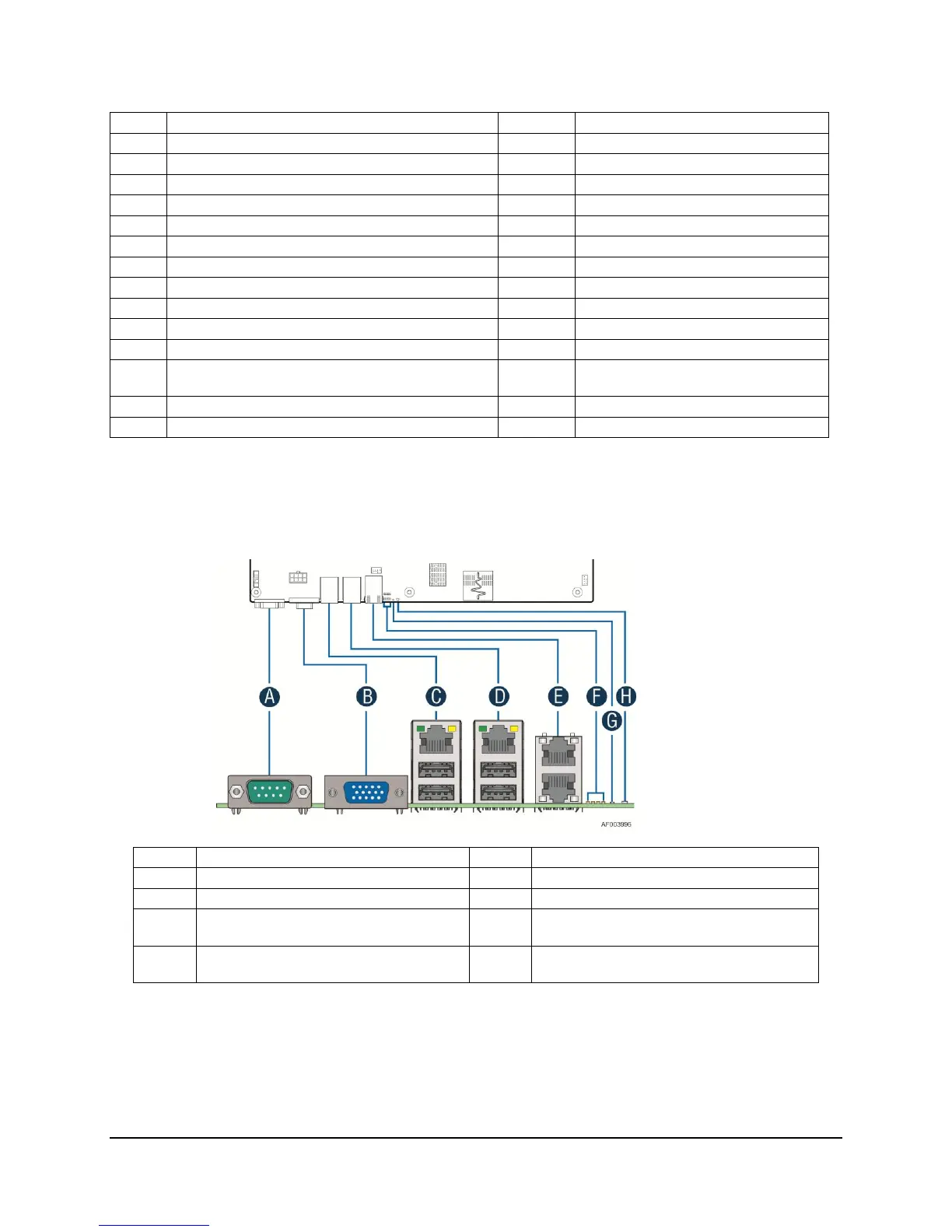

2.1.2 Main Board Rear I/O Layout
The following drawing shows the layout of the rear I/O components for the server boards.
Callout
Description
Callout
Description
A
Serial Port A
E
NIC Port 3(top) and 4(bottom)
B
Video Port
F
Diagnostics LED’s
C
NIC Port 1, USB Port 0 (bottom) and 1
(top)
G
ID LED
D
NIC Port 2, USB Port 2 (bottom) and 3
(top)
H
Status LED
Figure 4. Intel
®
Server Board S2600IP Rear I/O Layout
