Intel S2600IP

Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS Product Overview
Revision 1.1 7
Intel order number G34153-003

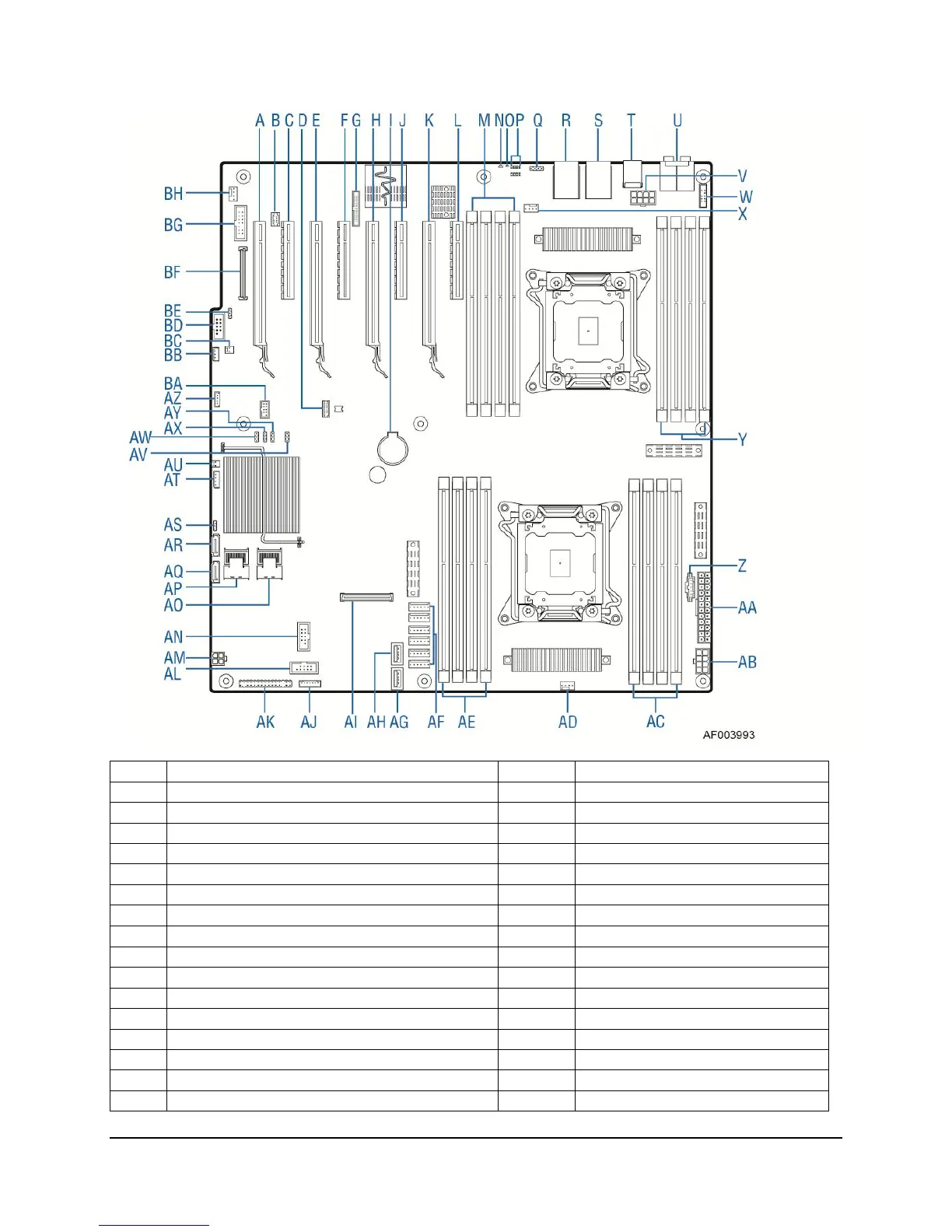

Callout
Description
Callout
Description
A
Slot 1, PCI Express* Gen3
AE
DIMM C1/C2/D1/D2
B
RMM4 Lite module
AF
System Fan connector 1/2/3/4/5/6
C
Slot 2, PCI Express* Gen3
AG
Type A USB connector
D
TPM
AH
Type A USB connector
E
Slot 3, PCI Express* Gen3
AI
ROC Module connector
F
Slot 4, PCI Express* Gen3
AJ
LCP connector
G
RMM4 Connector
AK
Front Panel connector
H
Slot 5, PCI Express* Gen3
AL
Front Panel USB connector
I
Battery
AM
Main Power 4-pin connector
J
Slot 6, PCI Express* Gen3
AN
1394b connector(W2600CR only)
K
Slot 7, PCI Express* Gen3
AO
MiniSAS Port B(4-7)
L
Slot 8, PCI Express* Gen2
AP
MiniSAS Port A(0-3)
M
DIMM E1/E2/F1/F2
AQ
SATA Port 1
N
Status LED
AR
SATA Port 0
O
ID LED
AS
CPLD Update
P
Diagnostic LED
AT
IPMB
