Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPSIntel® Light Guided Diagnostics
Revision 1.1 107
Intel order number G34153-003
8.4 DIMM Fault LEDs
The server board provide memory fault LED for each DIMM socket. These LEDs are located as
shown in the following figure. The DIMM fault LED illuminates when the corresponding DIMM
slot has memory installed and a memory error occurs.

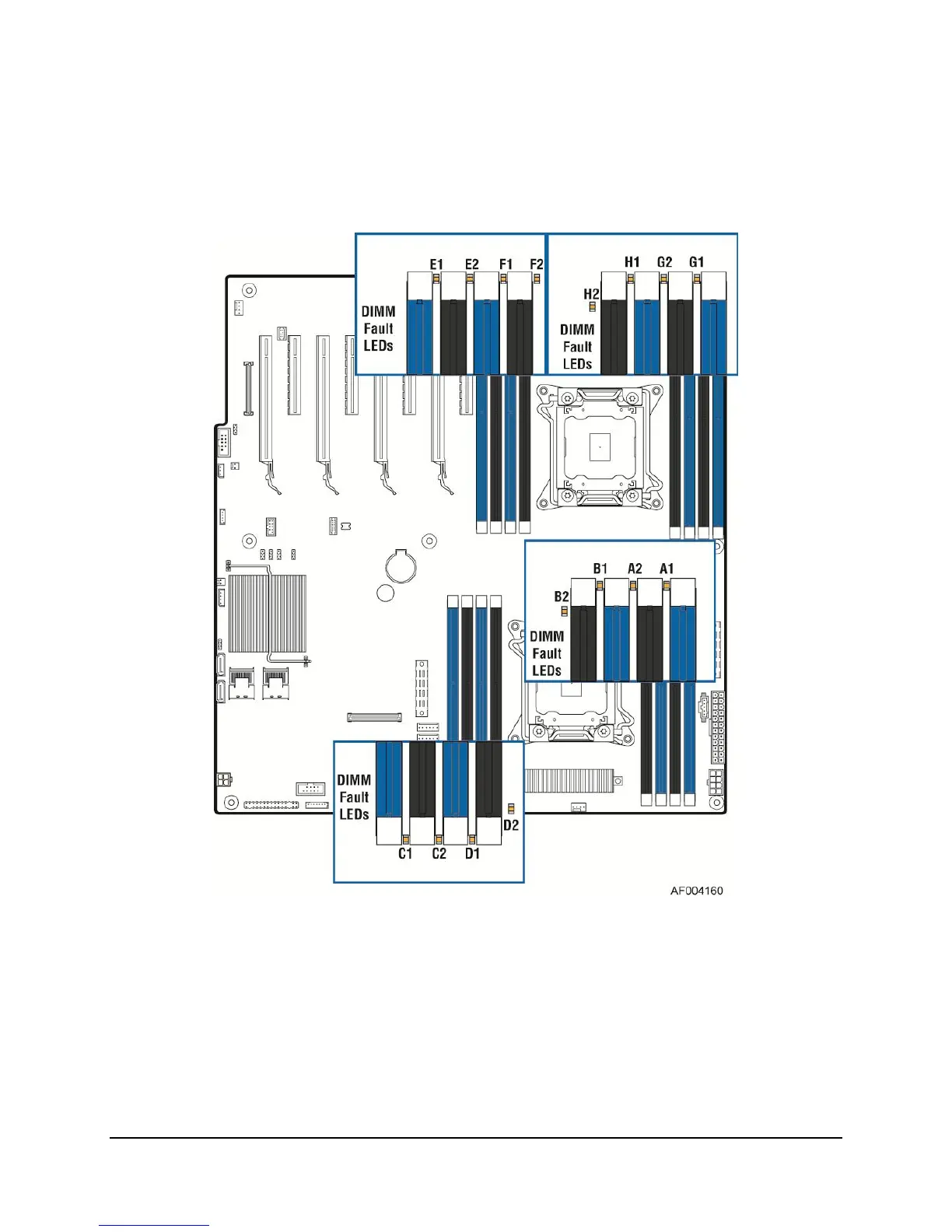

Figure 30. DIMM Fault LED’s Location
8.5 System ID LED, System Status LED and POST Code Diagnostic
LEDs
The server boards provide LEDs for system ID, system status and POST code. These LEDs are
located in the rear I/O area of the server board as shown in the following figure.
