Functional Architecture Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS
42 Revision 1.1
Intel order number G34153-003
Product Code and iPN
Description
AXX10GBNIAIOM
MM# 917905
Dual SFP+ port 10GbE IO Module based on Intel
®
82599 10GbE Ethernet Controller
AXX10GBTWLIOM
MM# 917907
Dual RJ45 Port, 10GBASE-T IO Module, based on Intel
®
I350 Ethernet chipset
AXX1FDRIBIOM
MM# 918607
Single Port, FDR speed Infiniband* module, with QSFP connector.
AXX4P1GBPWLIOM
MM# 917911
Quad Port 1GbE 1o Module based on Intel
®
Ethernet Controller I350
AXXIOMKIT
MM# 920852
I/O Module Cable and Brackets

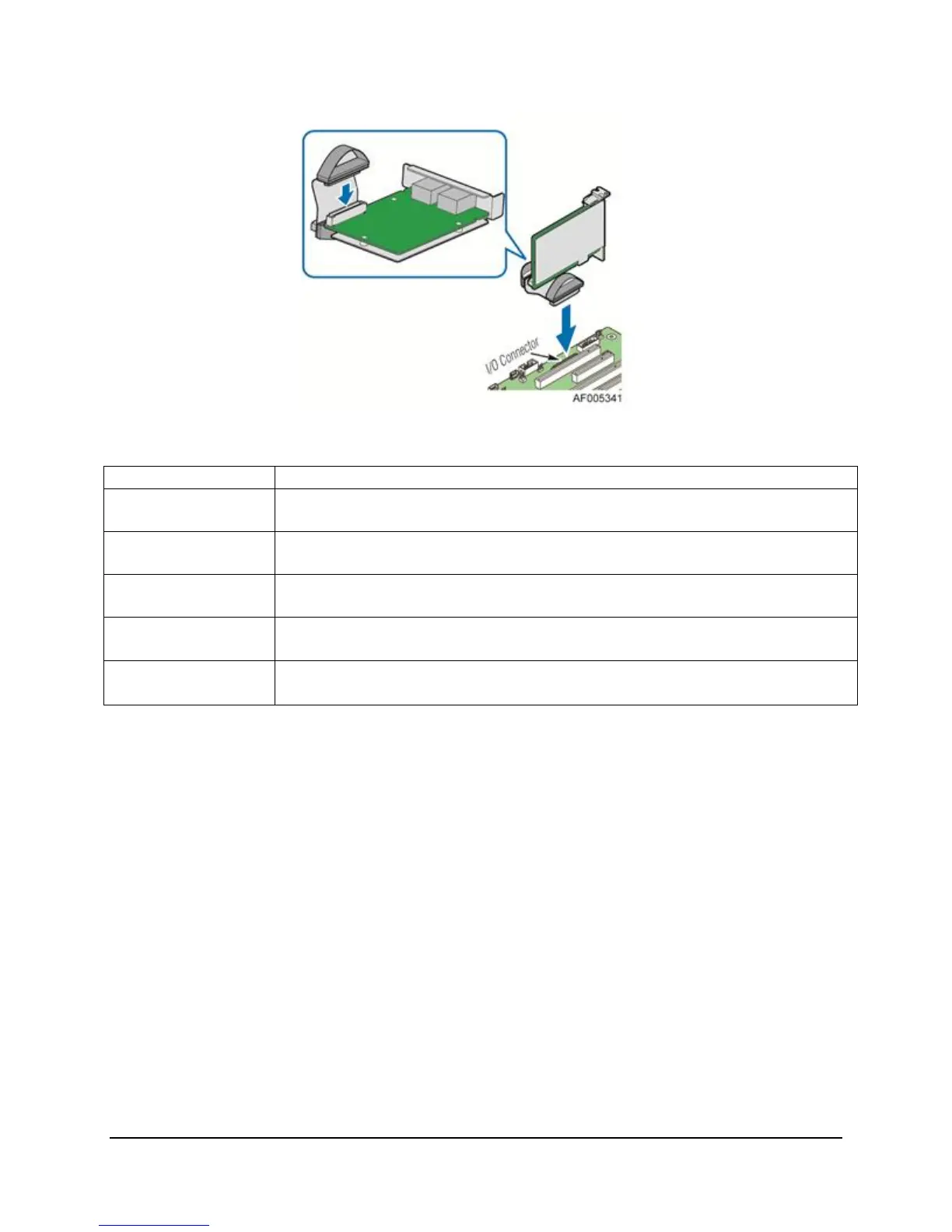

Figure 21. Supported I/O Module Options
Notes:
1. I/O Module cable and Brackets accessory is necessary to support I/O module on Intel
®
Server Board
S2600IP.
2. IOM connector only supports PCIe Gen1 Speed
3.7 SAS ROC Module Support
The system provides support for Intel
®
Integrated RAID mezzanine modules that utilize a high
density 80-pin connector (labeled “SAS_MOD”) on the server board.
