Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS Functional Architecture
Revision 1.1 43
Intel order number G34153-003

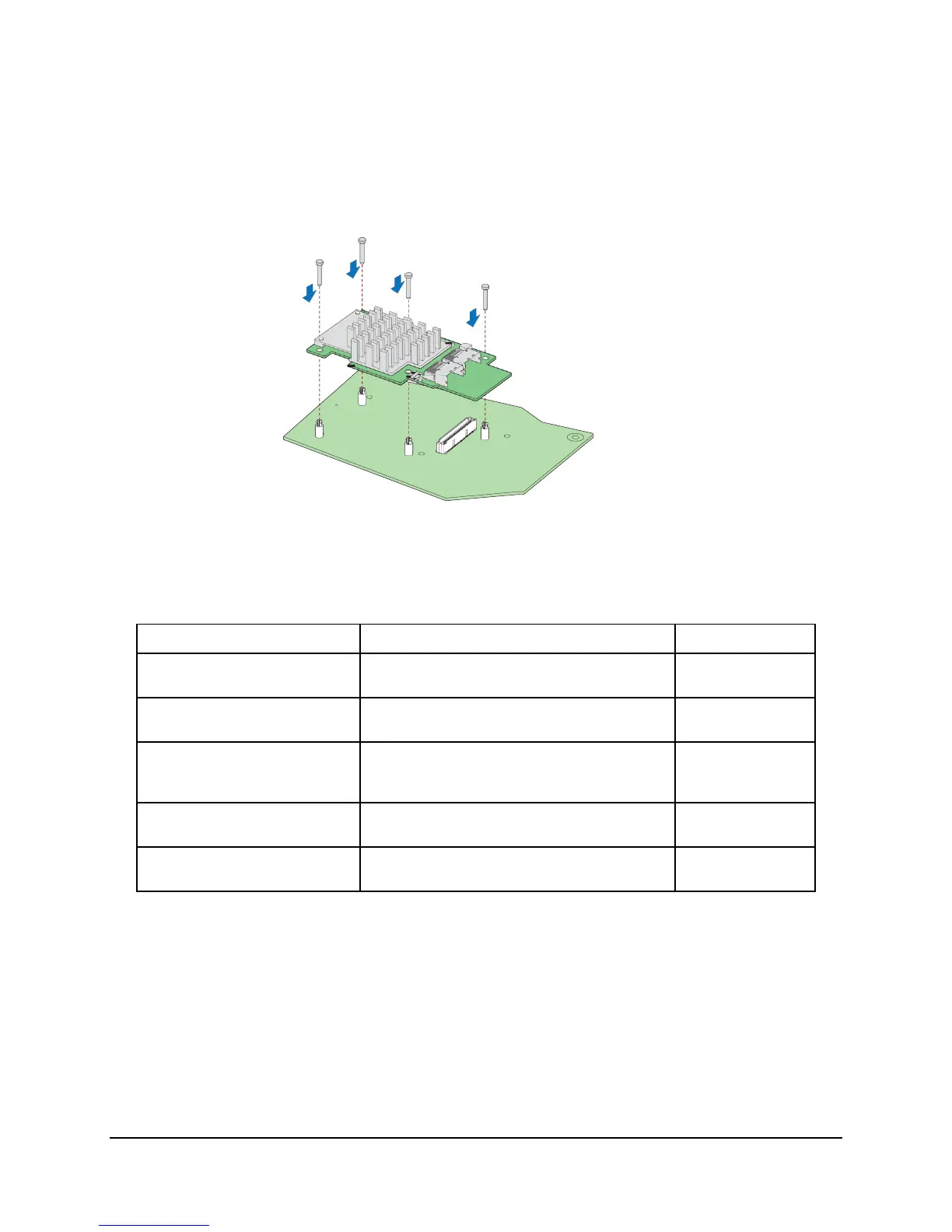

Features of this option include:
 Does not utilize a PCIe slot
 SKU options to support full or entry level hardware RAID
 4 or 8 port and SAS/SATA or SATA –only ROC options
 SKU options to support 512MB or 1GB embedded memory
 Intel designed flash + optional support for super-cap backup (Maintenance Free Back
Up) or improved Lithium Polymer battery
Table 9. Supported Intel
®
Integrated RAID Modules
External Name
Description
Product Code
Intel
®
Integrated RAID Module
RMS25CB080
8 Port SAS-2.1, Full HW RAID, 1GB, Mezz Slot
RAID Levels 0,1,10, 5, 50, 6, 60
RMS25CB080
Intel
®
Integrated RAID Module
RMS25CB040
4 Port SAS-2.1, Full HW RAID, 1GB, Mezz Slot
RAID Levels 0,1,10, 5, 50, 6, 60
RMS25CB040
Intel
®
Integrated RAID Module
RMT3CB080
8 Port SATA-3, Full HW RAID, 512MB, Mezz
Slot
RAID Levels 0,1,10, 5, 50, 6, 60
RMT3CB080
Intel
®
Integrated RAID Module
RMS25KB080
8 Port SAS-2.1, Entry-level HW RAID, Mezz Slot
RAID Levels 0,1,1E
RMS25KB080
Intel
®
Integrated RAID Module
RMS25KB040
4 Port SAS-2.1, Entry-level HW RAID, Mezz Slot
RAID Levels 0,1,1E
RMS25KB040
For additional product information, please refer the following Intel
®
document:
Intel
®
Integrated RAID Module RMS25PB080, RMS25PB040, RMS25CB080, and
RMS25CB040 Hardware User’s Guide – Intel Order Number G37519-003.
3.8 HD Audio Support (Intel
®
Workstation Board W2600CR Only)
The Intel
®
Workstation Board W2600CR support 7.1 HD Audio through the High Definition
Audio Codec Realtek* ALC889. The ALC889 provides ten DAC channels that simultaneously
support 7.1 sound playback, plus two channels of independent stereo sound output (multiple
streaming) through the front panel stereo outputs. Also supports two channels of S/PDIF In/Out
