Functional Architecture Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS
30 Revision 1.1
Intel order number G34153-003

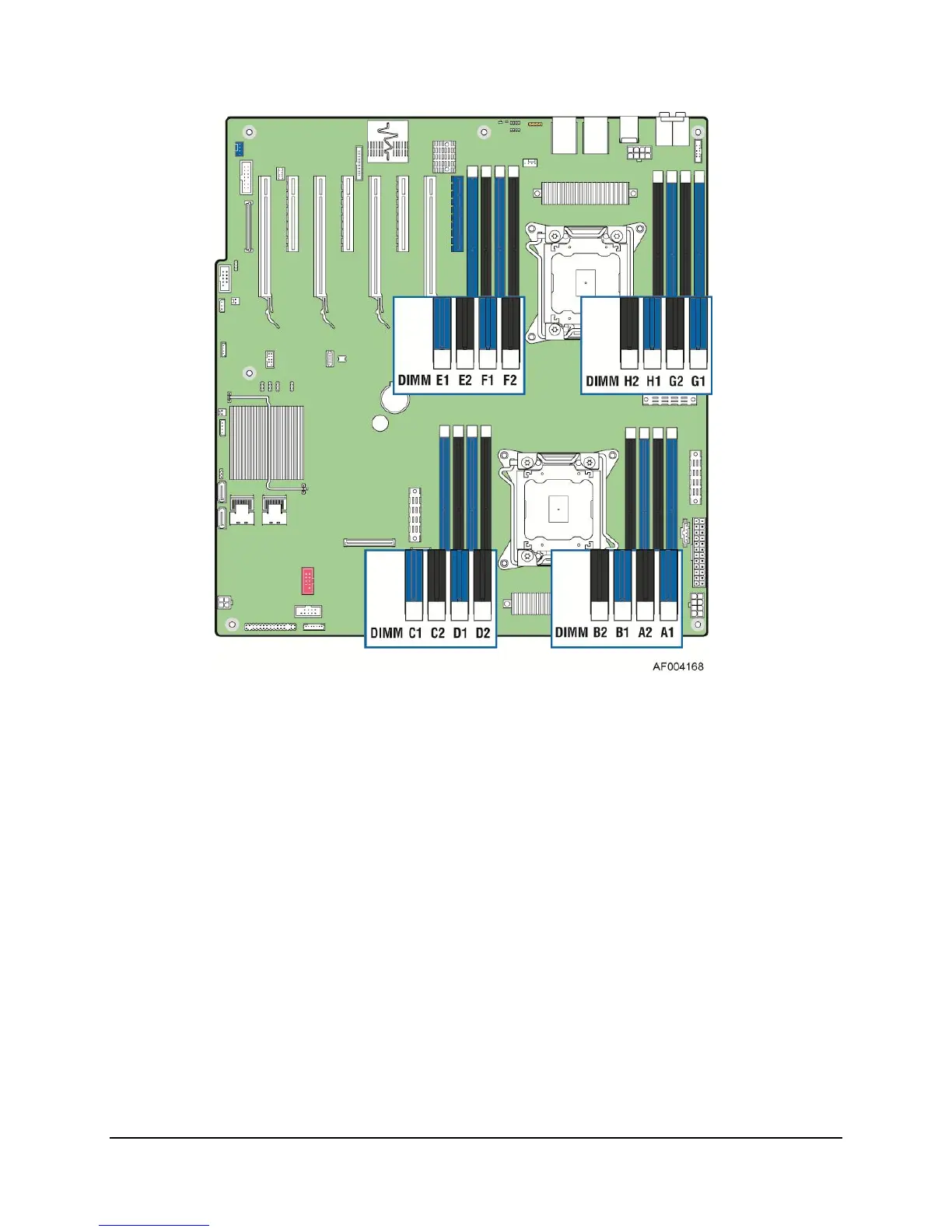

Figure 19. DIMM Slot Layout
The following are generic DIMM population requirements that generally apply to both the Intel
®
Server Board S2600IP and Intel
®
Workstation Board W2600CR.
 DIMM slots on any memory channel must be filled following the “farthest fill first” rule.
 A maximum of 8 ranks can be installed on any one channel, counting all ranks in each
DIMM on the channel.
 DIMM types (UDIMM, RDIMM, LRDIMM) must not be mixed within or across processor
sockets.
 Mixing ECC with non-ECC DIMMs (UDIMMs) is not supported within or across
processor sockets.
 Mixing Low Voltage (1.35V) DIMMs with Standard Voltage (1.5V) DIMMs is not
supported within or across processor sockets.
 Mixing DIMMs of different frequencies and latencies is not supported within or across
processor sockets.
 LRDIMM Rank Multiplication Mode and Direct Map Mode must not be mixed within or
across processor sockets.
 Only ECC UDIMMs support Low Voltage 1.35V operation.
