Functional Architecture Intel® Server Board S5500WB TPS
Revision 1.3
Intel order number E53971-004
32
• LPC to SPI Bridge for system BIOS support
• SMI and PME support
• ACPI compliant
• Wake-up control

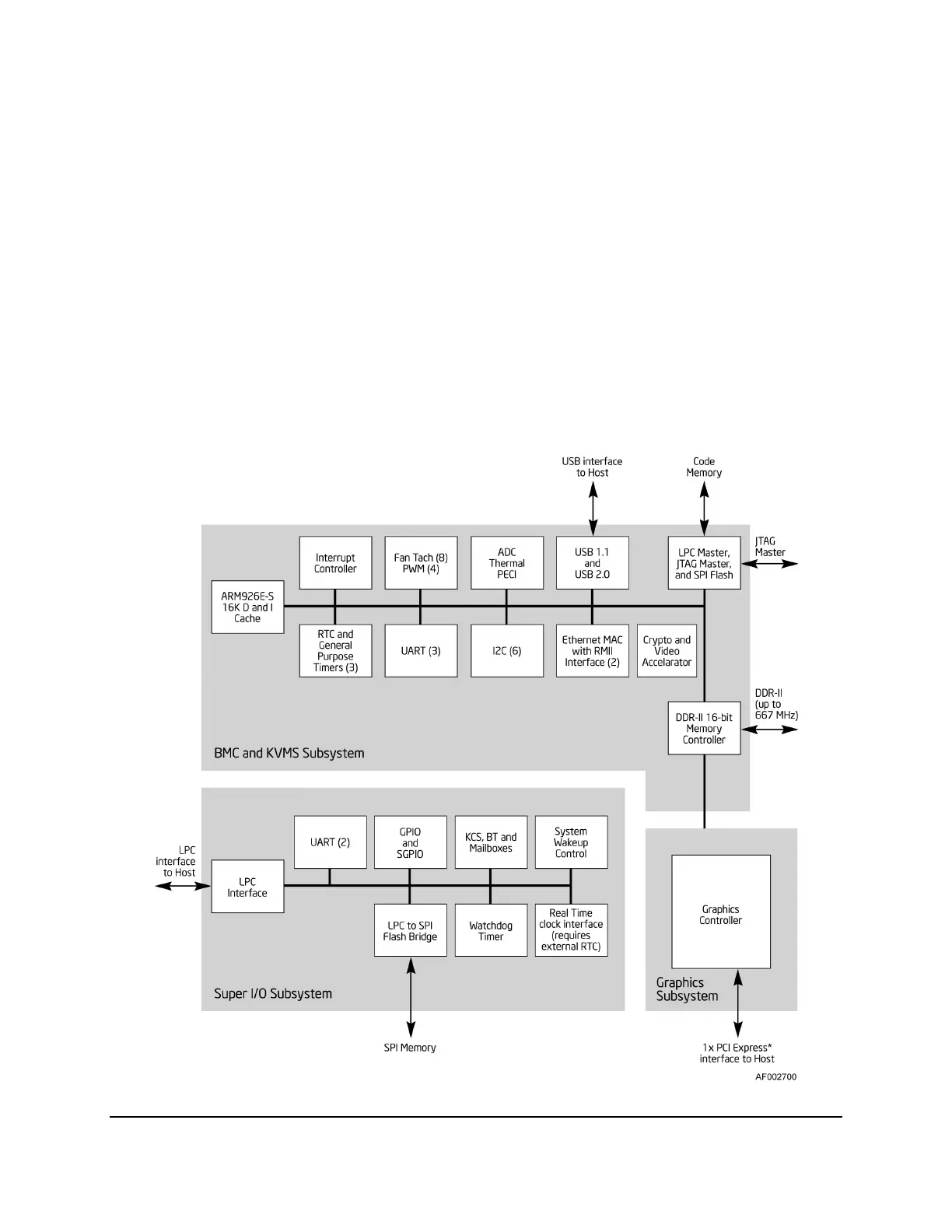

The Pilot II contains an integrated KVMS subsystem and graphics controller with the following
features:
• USB 2.0 for keyboard, mouse, and storage devices
• Hardware Video Compression for text and graphics
• Hardware encryption
• 2D Graphics Acceleration
• DDR2 graphics memory interface
• Matrox 2000 Graphics core with PCI Express* x1 host interface
• Up to 1600x1200 pixel resolution
