Intel® Server Board S5500WB TPS Connector / Header Locations and Pin-out
Revision 1.3
Intel order number E53971-004
53
7.2 System Management Headers
7.2.1 Intel
®
Remote Management Module 3 (Intel
®
RMM3) Connector
A 34-pin Intel
®
RMM 3 connector (J5B1) is included on the server board to support the optional
Intel
®
Remote Management Module 3. There is no support for third-party management cards on
this server board.
Note: This connector is not compatible with the Intel
®
Remote Management Module (Intel
®
RMM) or the Intel
®
Remote Management Module 2 (Intel
®
RMM2).

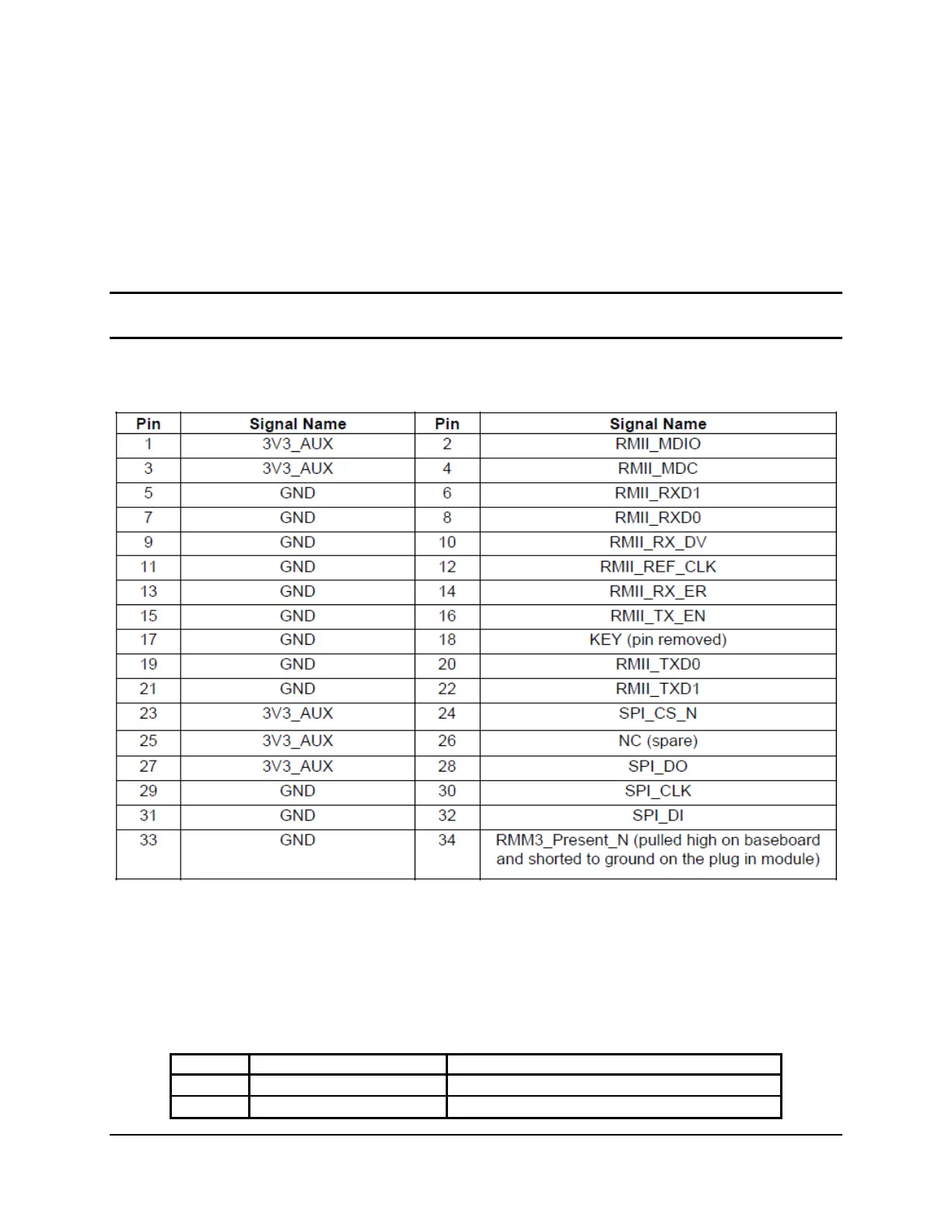

Table 28. Intel
®
RMM3 Connector Pin-out (J5B1)
7.2.2 BMC Power Cycle Header (12V Only)
A header is provided so you can use an external switch to remove power from the BMC. In
effect, it causes a BMC Power on reset to occur.
Table 29. BMC Power Cycle Header (J1D2)
Pin Description Note
1 RST_BMC_PWR_CYC When power is removed from the BMC.
2 GND
