Intel S5500WB - Fan Fault Leds; System Status LED; Figure 23. Fan Fault LED Locations

Intel® Light-Guided Diagnostics Intel® Server Board S5500WB TPS
Revision 1.3
Intel order number E53971-004
68
8.2 Fan Fault LEDs
Fan fault LEDs are present for the six fans and are located near each CPU fan header.
AF003115
E F
G
H
A B
C
D

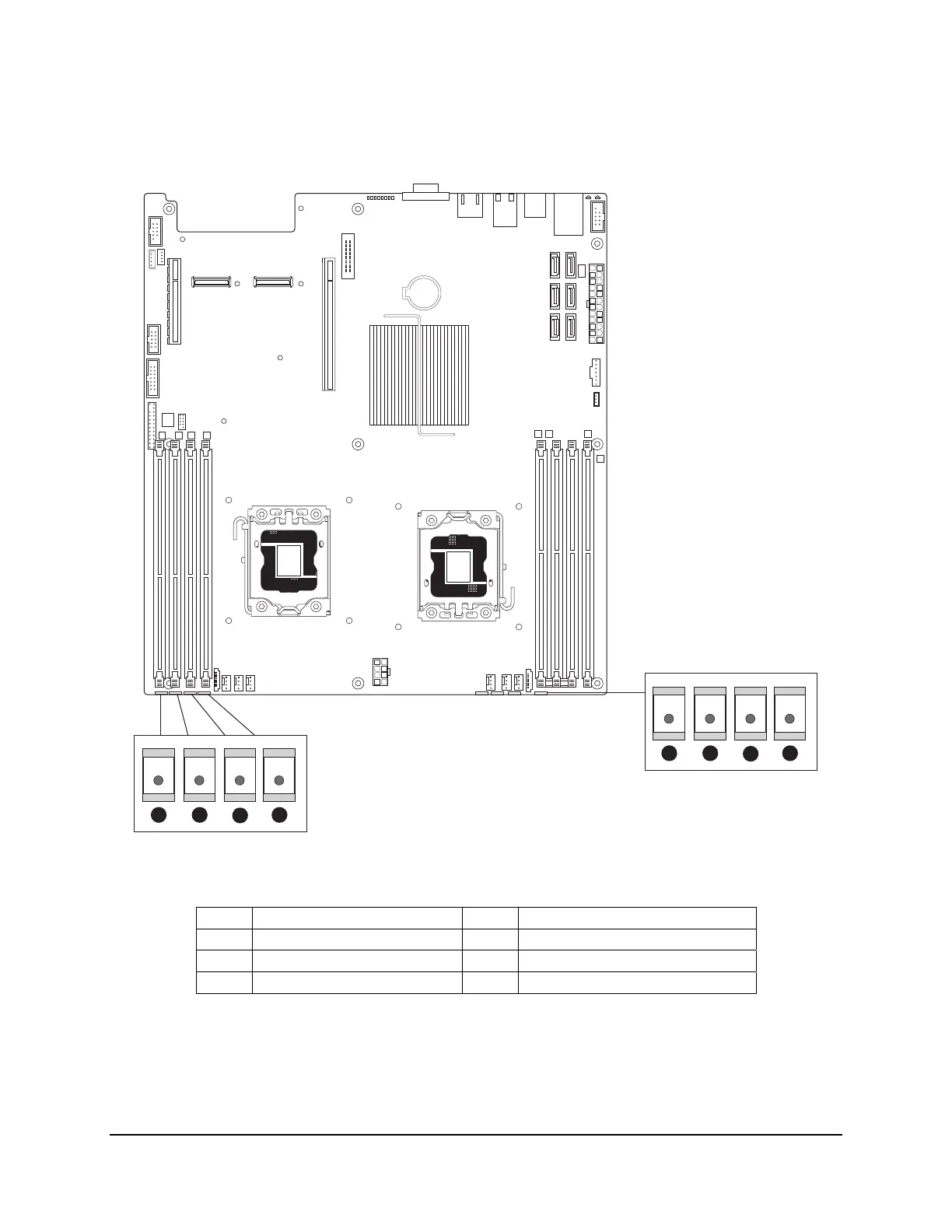

Figure 23. Fan Fault LED Locations
A FLTMEM2R E FLTCPU1
B FLTMEM2 F FLTCPU1A
C FLTCPU2A G FLTMEM1
D FLTCPU2 H FLTMEM1R
8.3 System Status LED
The server board provides LED for system status. The following figure shows the LED location.
