Intel® Server Board S5500WB TPS
Design and Environmental Specifications
Revision 1.3
Intel order number E53971-004
79
AF003062
A

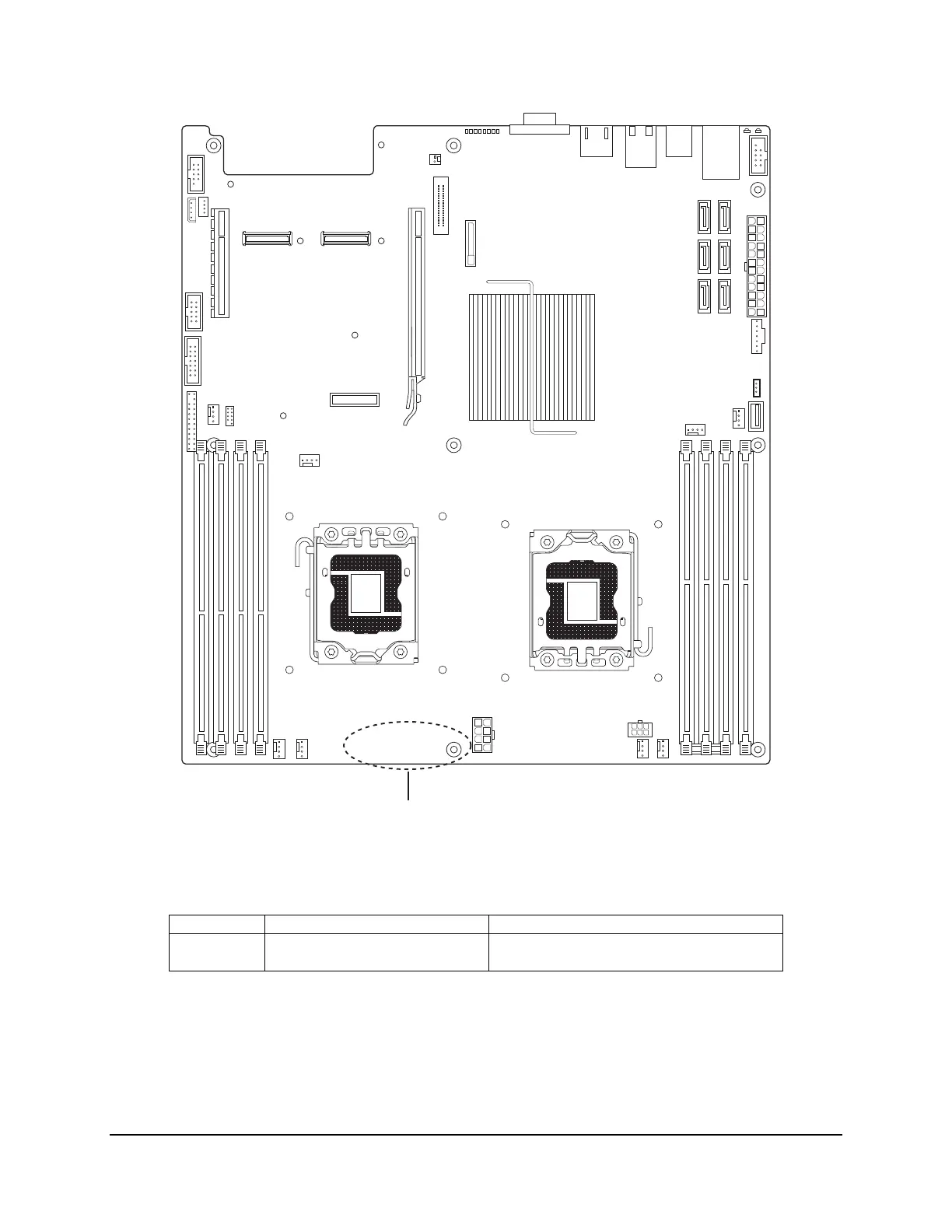

Figure 30: Temp Sensor Location
Location
Description
A
U4K3
Temp Sensor - TMP75
9.3
Heatsinks
The Intel
®
Server Board S5500WB system cooling soluti
ons rely on heatsinks for CPU cooling.
Chipset and or voltage regulator heatsinks are compatible with the 1U usage.
92
94
Table of Contents
Default Chapter
4
Table of Contents
4
1 Introduction
15
Section Outline
15
Server Board Use Disclaimer
15
2 Server Board Overview
16
Table 1. Intel ® Server Board S5500WB Feature Set
16
Figure 1. Intel ® Server Board S5500WB 12V
18
Intel ® Server Board S5500WB Server Board
18
Figure 2. Intel Server Board S5500WB SSI
19
Figure 3. Intel ® Server Board S5500WB Components (both Skus Are Shown)
20
Table 2. Intel ® Server Board S5500WB System Interconnects
21
Board Rear Connector Placement
22
Figure 4. Rear Panel Connector Placement
22
Server Board Mechanical Drawings
22
Figure 5. Baseboard and Mounting Holes
23
Figure 6. Connector Locations
24
Figure 7. Primary Side Height Restrictions
25
Figure 8. Secondary Side Height Restrictions
26
Server Board Connector and Component Layout
20
3 Functional Architecture
27
High Level Product Features
27
Table 3. Intel ® Server Board S5500WB Features
27
Functional Block Diagram
28
Figure 9. Intel ® Server Board S5500WB Functional Block Diagram
28
Intel ® Xeon ® 5500 Series
29
Processor Support
29
Processor Population Rules
29
Table 4. Mixed Processor Configurations
30
Installing or Replacing the Processor
31
Figure 10. Lifting the Load Lever of ILM Cover
31
Figure 11. Removing the Socket Cover
32
Figure 12. Installing Processor
32
Figure 13. Package Installation/Remove Feature
33
Qpi)
34
Figure 14. Installing/Removing Heatsink
34
Intel ® Quickpath Memory Controller
35
Supported Memory
35
Figure 15. Intel ® QPI Link
35
Memory Subsystem Nomenclature
36
Table 5. DIMM Nomenclature
36
ECC Support
37
Memory Reservation for Memory-Mapped Functions
37
High-Memory Reclaim
37
Memory Population Rules
37
Figure 16. Memory Channel Population
37
Installing and Removing Memory
38
Figure 17. Installing Memory
38
Channel-Independent Mode
39
Memory RAS
39
Memory Error LED
40
Intel ® 5500 Chipset IOH
40
Figure 18. Mirroring Memory Configuration
40
IOH24D PCI Express
41
Table 6. IOH24D PCI Express* Bus Segments
41
Management Engine
42
Intel 82801Jx I/O Controller Hub (ICH10R)
42
Serial ATA Support
43
USB 2.0 Support
43
Network Interface Controller (NIC)
44
MAC Address Definition
44
Table 7. NIC Status LED
44
LAN Connector Ordering
45
Integrated Baseboard Management Controller
45
Integrated BMC Embedded LAN Channel
47
RMM3 Advanced Management Board
47
3.10 Serial Ports
47
Figure 19. Integrated BMC Hardware
47
Table 8. RMM3 Features
47
3.11 Wake-Up Control
48
3.12 Integrated Video Support
48
Video Modes
48
Dual Video
48
Table 9. Supported Video Modes
48
Front Panel Video
49
3.13 I/O Slots
49
X16 Riser Slot Definition
49
PE WIDTH Strapping
49
Table 10. Dual Video Options
49
Table 11. PEWIDTH Strapping Bits
49
Slot 1 PCI Express* X8 Connector
50
I/O Module Connector
50
Table 12. Intel ® I/O Expansion Module Bus PEWIDTH Bits
50
4 Intel® I/O Expansion Modules
51
Table 13. Intel ® I/O Expansion Module Product Codes
51
5 Platform Management Features
53
BIOS Feature Overview
53
EFI Support
53
Intel Rapid Boot Toolkit
53
BIOS Recovery
53
BMC Feature Overview
53
Server Engines Pilot II Controller
54
BMC Firmware
54
BMC Basic Features
55
BMC Advanced Features
55
Table 14. Advanced Features
55
Management Engine (ME)
56
Overview
56
BMC - Management Engine Interaction
56
Data Center Manageability Interface
56
Other Platform Management
56
Wake on LAN (WOL)
56
PCI Express* Power Management
57
Pmbus
57
SMBUS Architecture Block
57
SMBUS Device Addresses
57
Figure 20. S5500WB SMBUS Block Diagram
57
Table 15. Smbus Device Address Assignment
57
6 Configuration Jumpers
59
Figure 21: Jumper Blocks (J1B5, J1C2, J1C3, J1B4, J6A3, J6A2, J7A2)
59
Force IBMC Update (J1B5)
60
Table 16: Server Board Jumpers (J1B5, J1C2, J1C3, J1B4, J6A3, J6A2)
60
Table 17. Force IBMC Update Jumper
60
Password Clear (J1C2)
61
Table 18. Password Clear Jumper
61
BIOS Recovery Mode (J1C3)
62
Table 19. BIOS Recovery Mode Jumper
62
Reset BIOS Configuration (J1B4)
63
Video Master (J6A3)
63
Table 20. Reset BIOS Jumper
63
Table 21. Video Master Jumper
63
ME Firmware Force Update (J7A2)
64
Serial Interface (J6A2)
64
7 Connector / Header Locations and Pin-Out
65
Power Connectors
65
Table 22. SSI SKU 24-Pin 2X12 Connector (J9B1)
65
Table 23. CPU 12V Power 2X4 Connector (J5K1)
65
Table 24. SSI Power Control (J9D1)
65
Table 25. 12-V Only 2X4 Connector (Replaces EPSD12V 2X12 Connector) (J9D2)
65
Table 26. 12-V Only Power Control (Replaces the 1X5 Power Control) (J9D1)
66
Table 27. Peripheral Power (Only for 12-V Only SKU) (J8K2)
66
System Management Headers
67
Intel ® Remote Management Module 3 (Intel ® RMM3) Connector
67
BMC Power Cycle Header (12V Only)
67
Table 28. Intel ® RMM3 Connector Pin-Out (J5B1)
67
Table 29. BMC Power Cycle Header (J1D2)
67
Hard Drive Activity (Input) LED Header
68
IPMB Header
68
SGPIO Header
68
SSI Control Panel Connector
68
Table 30. IPMB Header 4-Pin (J1B2)
68
Table 31. SGPIO Header (J1B1)
68
Table 32. Front Panel SSI Standard 24-Pin Connector Pin-Out (J1E1)
68
NMI Button
69
Power Button
69
Reset Button
69
Chassis Identify Button
70
Power LED
70
System Status LED
70
Table 33. Power LED Indicator States
70
Table 34. System Status LED
71
Chassis ID LED
72
Table 35. Chassis ID LED Indicator States
72
I/O Connectors
73
PCI Express* Connectors
73
Table 36. Slot 6 Riser Connector (J4B1)
73
Table 37. Slot 1 PCI Express* X8 Connector (J1B3)
74
VGA Connectors
75
Table 38. VGA External Video Connector (J6A1)
75
Table 39. VGA Internal Video Connector (J1D1)
75
NIC Connectors
76
Table 40. RJ-45 10/100/1000 NIC Connector Pin-Out (J8A2, J9A1)
76
SATA Connectors
77
Intel ® I/O Expansion Module Connector
77
Table 41. SATA Connectors
77
Table 42. 50-Pin Intel ® I/O Expansion Module Connector Pin-Out (J2B1, J3B1)
78
Serial Port Connectors
79
USB Connectors
79
Table 43. External RJ-45 Serial Port a (COM1) (J7A1)
79
Table 44. Internal 9-Pin Serial B (COM2) (J1A2)
79
Table 45. External USB Connector (J8A1, J9A1))
79
Table 46. Internal USB Connector (J1C1 and J9A2)
79
Fan Headers
80
Table 47. Low-Profile Internal USB Connector (J1E2)
80
Table 48. SSI 4-Pin Fan Connector (J2K2, J2K3, J3K1, J7K1, J8K4, J8K5)
80
Table 49. 8-Pin Fan Connector (J2K1 & J8K3)
80
8 Intel Light-Guided Diagnostics
81
5-V Standby LED
81
Figure 22: 5-V Standby Status LED Location
81
Fan Fault Leds
82
System Status LED
82
Figure 23. Fan Fault LED Locations
82
Figure 24. System Status LED Location
83
Table 50. System Status LED
83
DIMM Fault Leds
86
Figure 25. DIMM Fault Leds Locations
86
POST Code Diagnostic Leds
87
Figure 26. Rear Panel Diagnostic Leds
87
Front Panel Support
88
Table 51. Standard Front Panel Functionality
88
9 Design and Environmental Specifications
89
Fan Speed Control Thermal Management
89
Figure 27: Thermal Zones
89
Figure 28: Location of Fan Connectors
90
Table 52. Fan Connector Location & Detail
90
Thermal Sensors
91
Processor PECI Temperature Sensor
91
Figure 29. Fans and Sensors Block Diagram
91
Table 53. Fan Connector Location & Detail
91
Memory Temperature Sensor
92
Board Temperature Sensor
92
Thermals Sensor Placement
92
Heatsinks
93
Figure 30: Temp Sensor Location
93
Figure 31. Unified Retention System and Unified Backplate Assembly
94
Unified Retention System Support
94
Errors
95
Prochot
95
Thermtrip
95
Caterr
95
10 Power Subsystem
96
10.1 Server Board Power Distribution
96
10.2 Power Supply Compatibility
96
Figure 32. Power Distribution Diagram
96
10.3 Power Sequencing and Reset Distribution
97
11 Regulatory and Certification Information
98
11.1 Product Regulation Requirements
98
Product Safety Compliance
98
Product EMC Compliance - Class a Compliance
98
Certifications / Registrations / Declarations
98
11.2 Product Regulatory Compliance Markings
99
11.3 Electromagnetic Compatibility Notices
99
FCC Verification Statement (USA)
99
Table 54: Product Regulatory Compliance Markings
99
ICES-003 (Canada)
100
Europe (CE Declaration of Conformity)
101
BSMI (Taiwan)
101
KCC (Korea)
101
Appendix A: POST Code LED Decoder
102
Figure 33. Diagnostic LED Placement Diagram
102
Table 55. POST Progress Code LED Example
103
Table 56. Diagnostic LED POST Code Decoder
104
Appendix B: Video POST Code Errors
109
Table 57. POST Error Messages and Handling
109
Glossary
113
Table 58: Glossary
113
Reference Documents
116
