21
2 Installation Procedures
Install the I/O Shield
✏
NOTE
An ATX 2.03-compliant I/O shield is provided with the server board. The
shield is required by Electromagnetic Interference (EMI) regulations to
minimize EMI. If the shield does not fit the chassis, obtain a properly sized
shield from the chassis supplier. The I/O shield does not support the use of
the USB 2 connector.
The shield fits the rectangular opening in the back of a chassis. The shield has cutouts that match
the I/O ports.
1. Install the shield from inside the chassis. Orient the shield so that the cutouts align with the
corresponding I/O connectors on the server board. Make sure the metal fingers are on the
inside of the chassis.
2. Position one edge (A) so that the dotted groove is outside the chassis wall, and the lip of the
shield rests on the inner chassis wall.
3. Hold the shield in place, and push it into the opening (B) until it is seated. Make sure the
I/O shield snaps into place all the way around.
OM12162
B
A

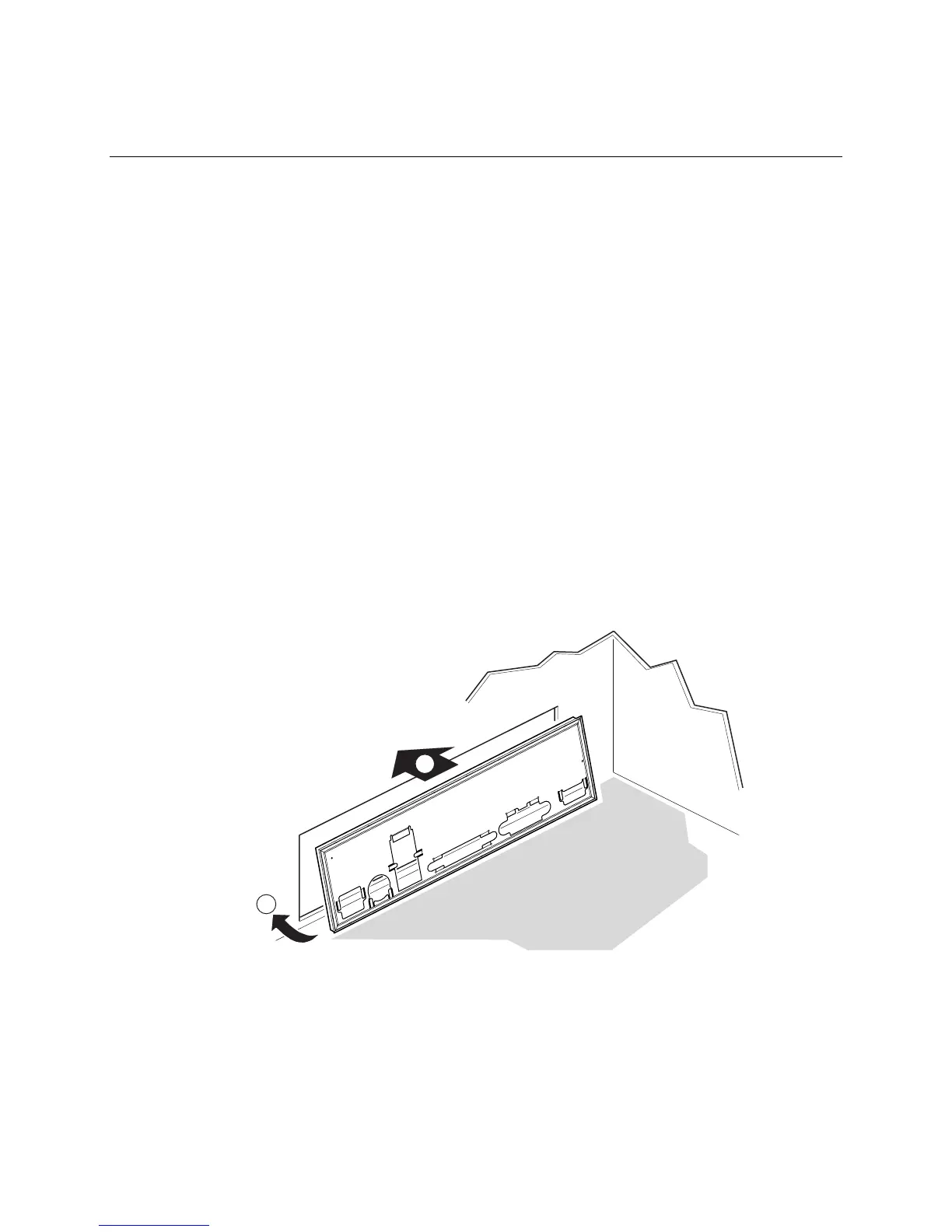

Figure 5. Installing the I/O Shield
