68 Intel Server Board SCB2 Product Guide
Paging String
Enter the paging string that contains both the paging service number and the characters that are sent
once the connection has been made. The length of the paging string is determined at run-time from
firmware. You will be notified if the string is truncated. The screen will show the string that was
saved after a save operation is done.
Buttons
• Save: Allows you to save the configuration immediately.
• Close: Allows you to close the Platform Event Paging dialog without saving changes. If
changes have been made, you will be prompted to save changes before closing.
• Help: Displays help information.
BMC LAN-Configuration Dialog
This dialog allows you to configure the BMC LAN-Configuration features. (See Figure 27.)

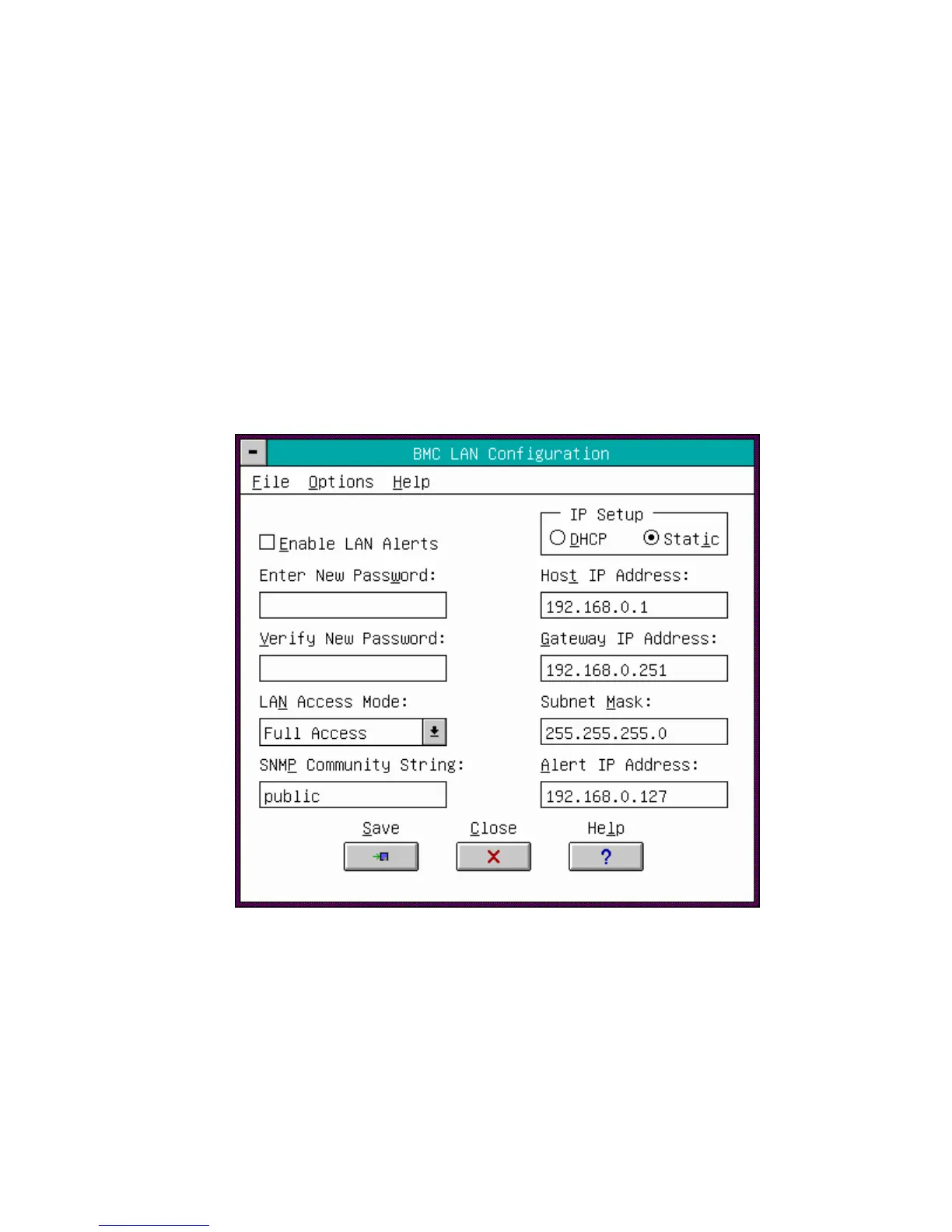

Figure 27. BMC LAN-Configuration Dialog
