22 Intel Server Board SCB2 Product Guide
Rearrange the Standoffs
If your chassis does not have board mount standoffs placed as shown, you must rearrange them so
they match the holes in the server board. Failure to properly rearrange the metal standoffs may
cause the server board to malfunction and may permanently damage it. Your chassis may be
different from the illustration.
OM11716B
=

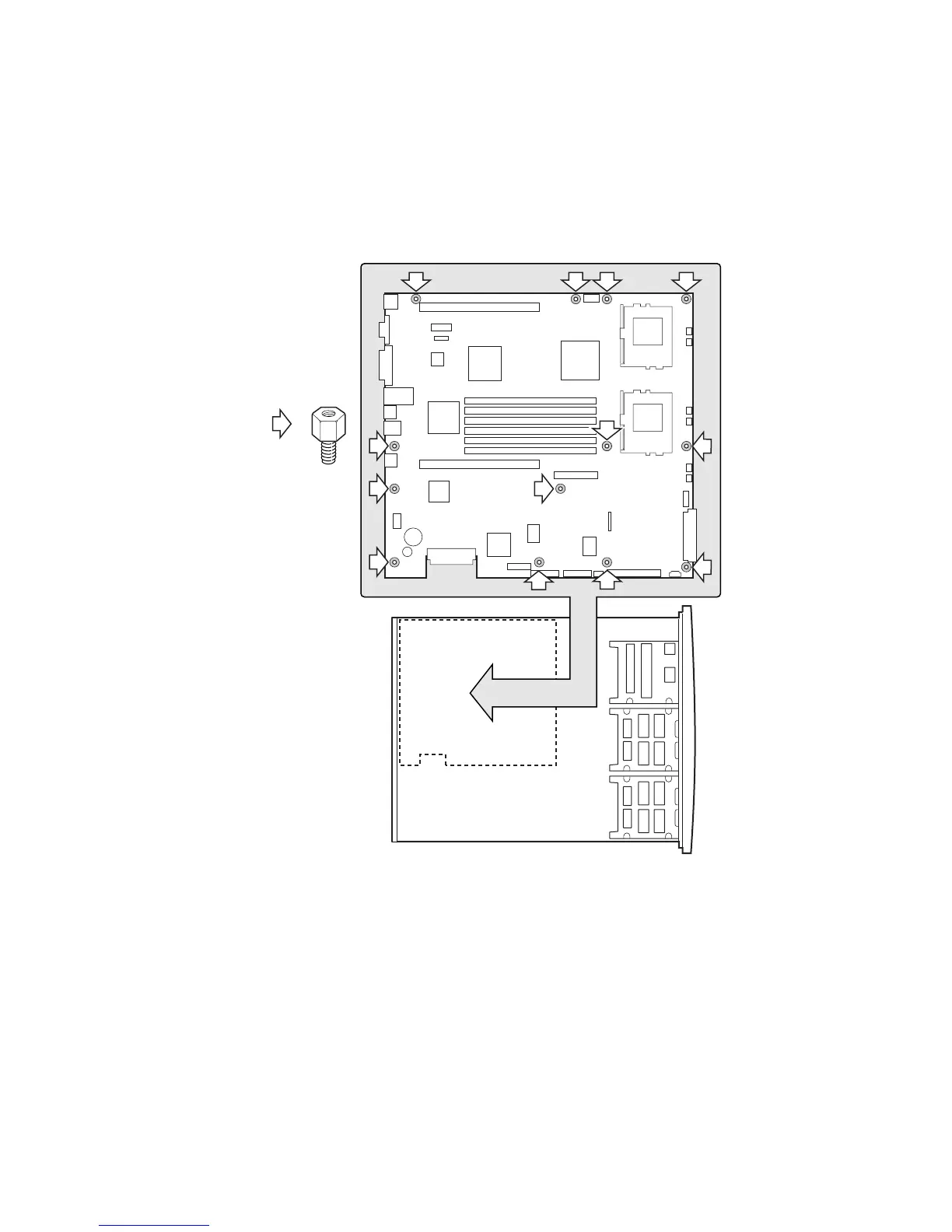

Figure 6. Rearrange the Standoffs
