Installation Procedures 29
Memory
Only PC133-compliant SDRAM is supported by the server board. Install from 128 MB to 6 GB of
registered, ECC memory, using up to six DIMMs. A 1U chassis requires low-profile (LP) 1.2-inch
DIMMs.
DIMMs must be installed in pairs and in the following order: 1a and 1b, 2a and 2b, 3a and 3b.
Installed DIMMs must be the same speed and must all be registered. For a list of supported
memory, call your service representative or visit the Intel Support website:
http://support.intel.com/support/motherboards/server
OM11715
3A
1B
2B
3B
1A
2A

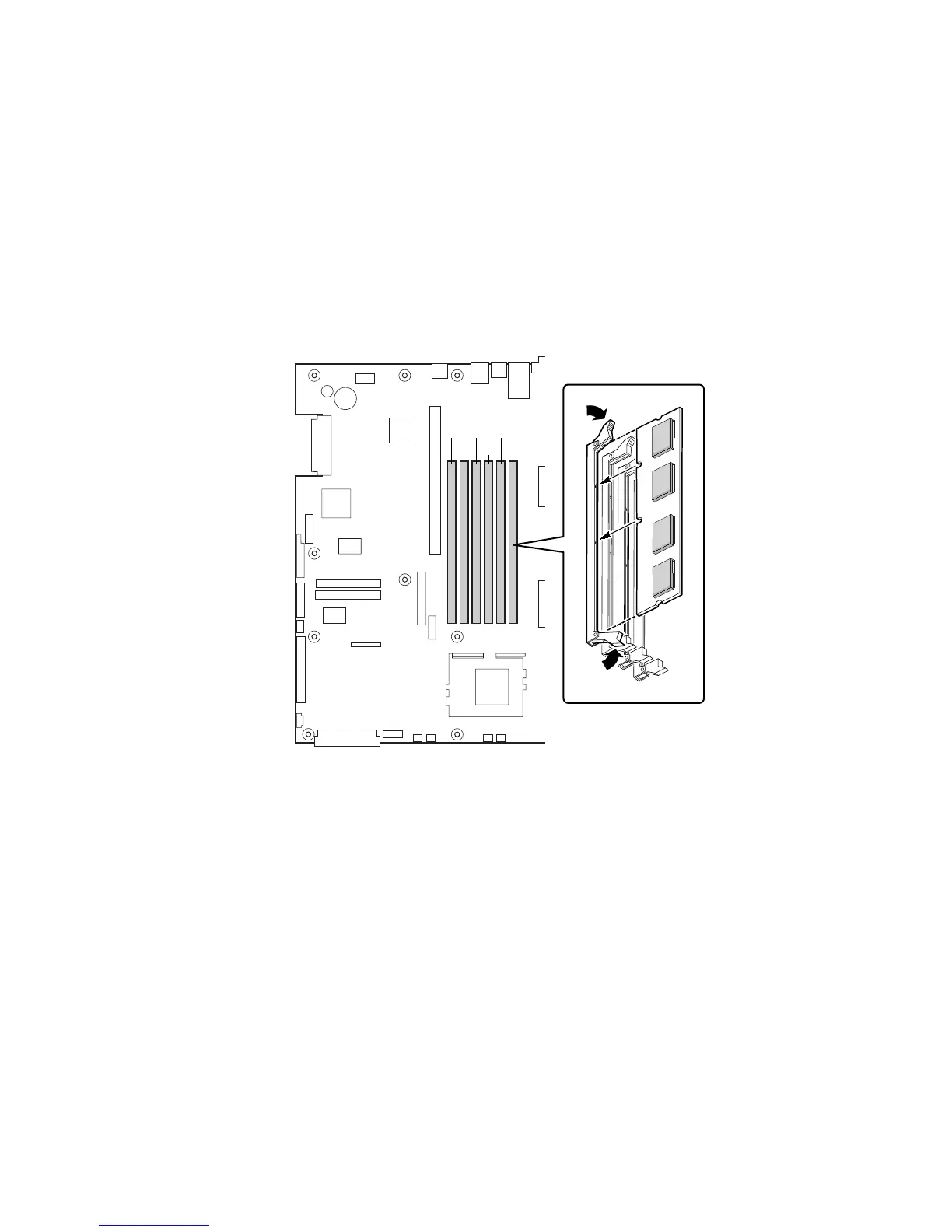

Figure 15. Installing Memory
