30 Intel Server Board SCB2 Product Guide
Connect Cables
Before connecting cables, consult the documentation supplied with your chassis.
OM11717
G
H
F
A
B
S
C
S
I
A
T
A
1
0
0
E
A
T
A
6
6
U
S
B
I
C
O
M
1
K
J
C
D

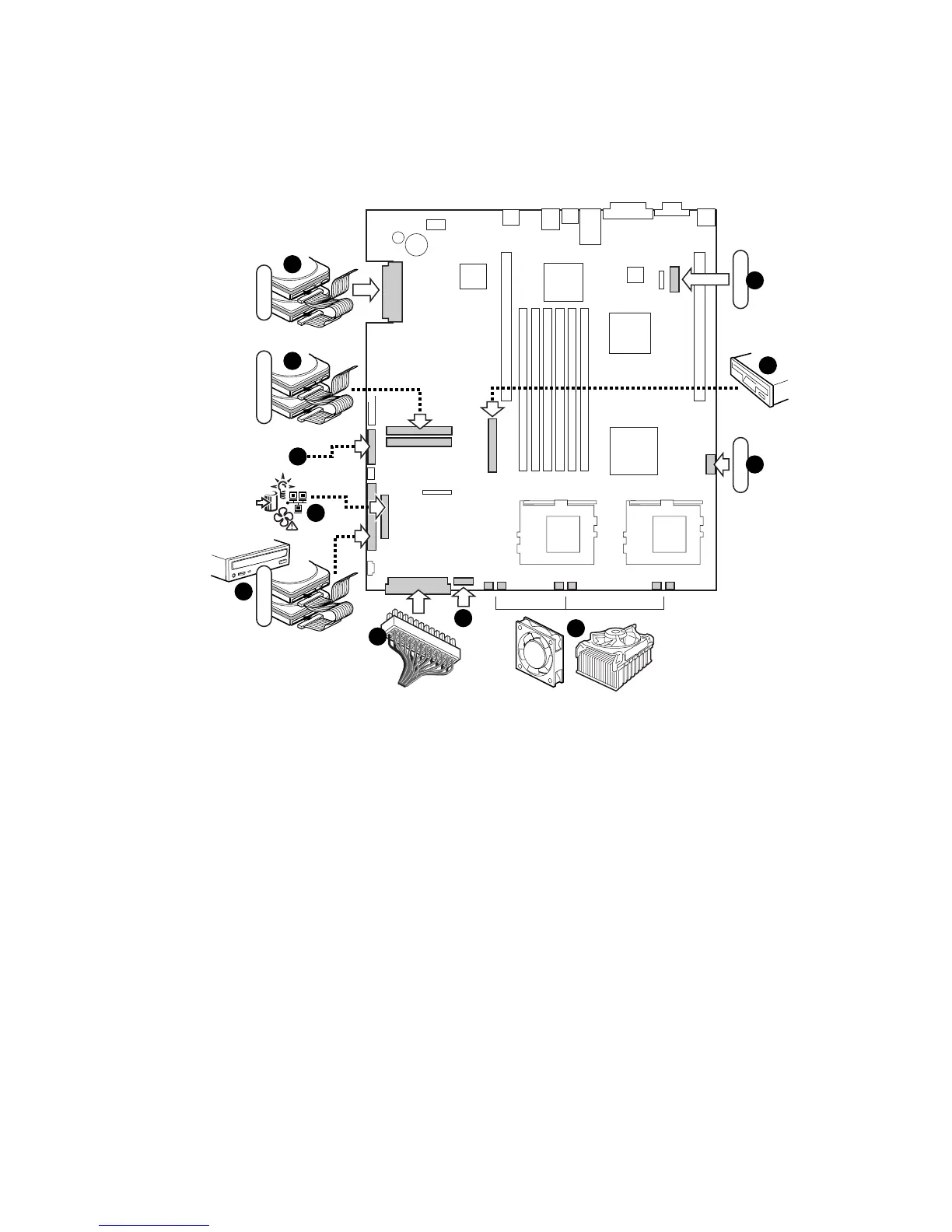

Figure 16. Connecting Cables
A. SCSI connector (SCSI server board only)
B. ATA-100 primary/secondary connectors (ATA server board only)
C. SSI front panel connector (see the server board diagram label for pin out)
D. Front panel connector (For use in a non Intel chassis only)
E. IDE connector (For use in a non Intel chassis only)
F. Main power connector
G. Fan module connector (7-pin)
H. Fan connectors (system and processor)
I. USB header
J. Floppy connector (For use in a non Intel chassis only)
K. COM 1 header
L. Combined Floppy/Front Panel/IDE connector (For use in an Intel chassis only)
