26 Intel Server Board SCB2 Product Guide
5. Following the instructions packaged with the applicator, apply thermal grease to the processor.
6. Position the heat sink slot (2) above the socket/processor slot (3).
7. Aligning the raised metal surfaces, place the heat sink on top of the processor.
8. Install the heat sink clip with pin (1) inserted into slot (2).
OM11708A
C
A
B
2
3
1

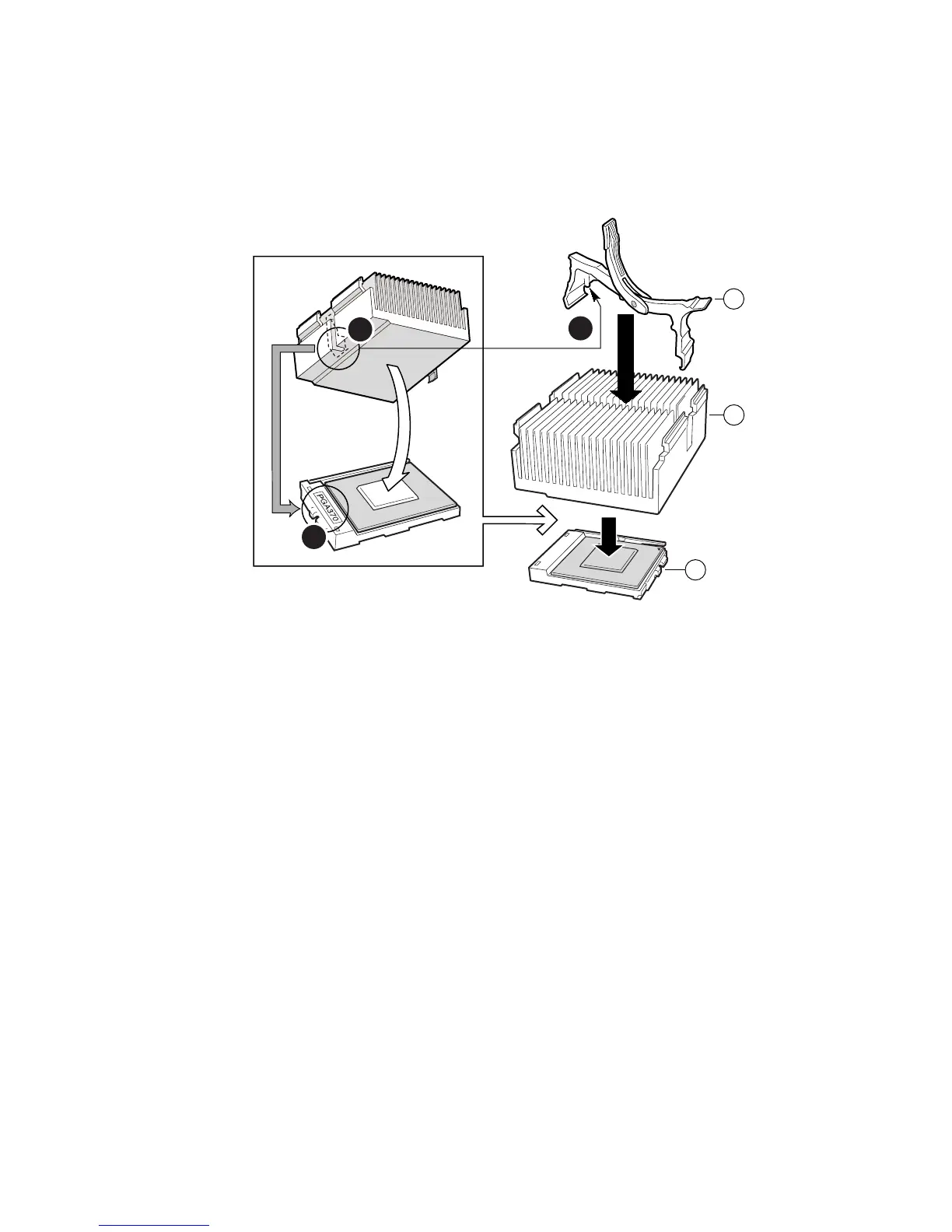

Figure 11. Installing the Heat Sink
A. Heat sink retention clip
B. Heat sink
C. Socket and processor
