Installing Processors
1. Observe the safety and ESD precautions at the beginning of this document.
2. Raise the locking bar on the socket.
OM11711

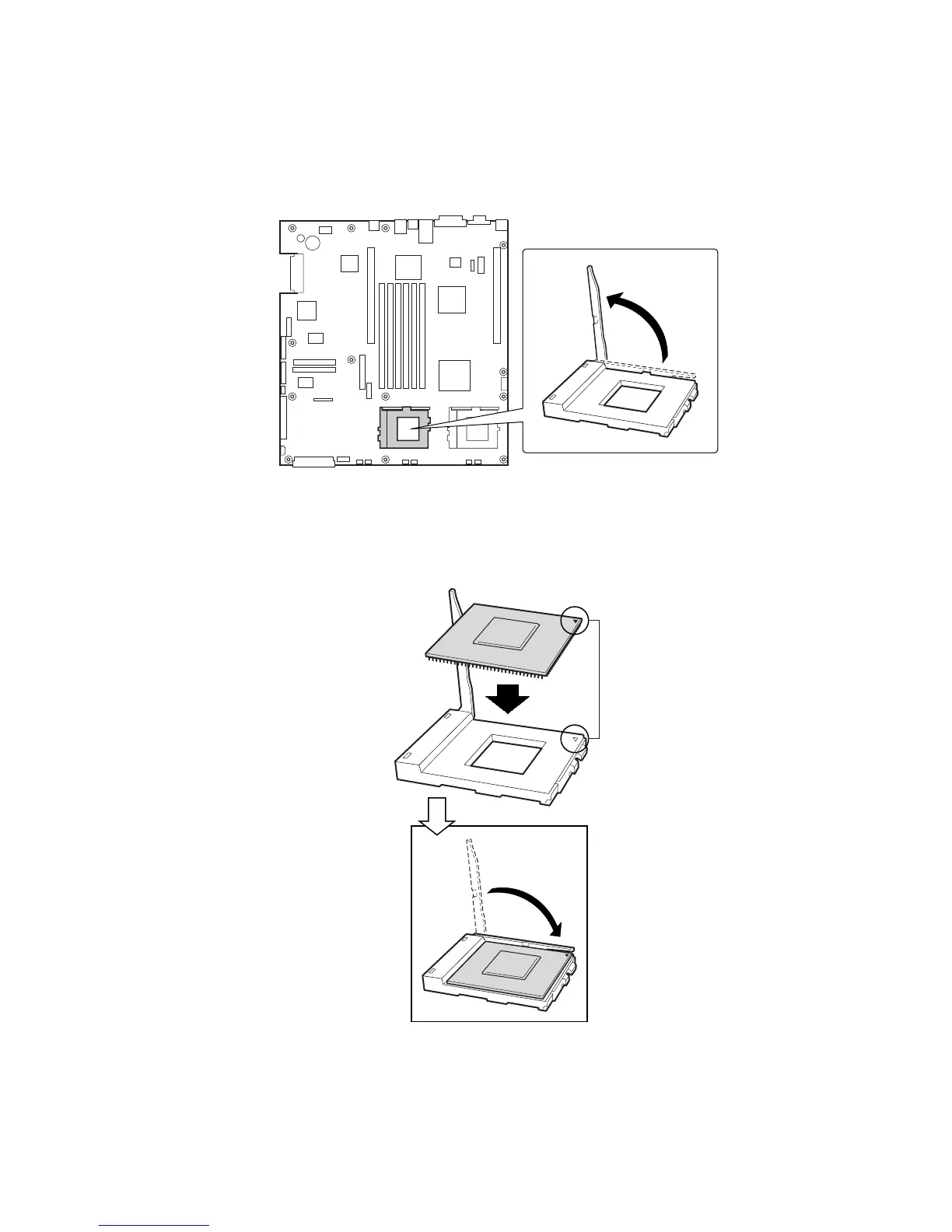

Figure 9. Raising the Locking Bar
3. Aligning the pins of the processor with the socket, insert the processor into the socket.
4. Lower the locking bar completely.
OM11712
Figure 10. Installing Processors
