Install the Server Board
To ensure proper grounding and support, it is recommended that you install screws in all the
required mounting holes for your chassis. You may need to move cables out of the way to properly
install your server board.
1. While placing the board on the chassis standoffs, carefully position the board I/O connectors
into the rear chassis I/O openings.
2. Adjust board position to align mounting holes with standoffs.
3. Using the screws that came with your chassis, mount the board to the chassis.
OM11716A

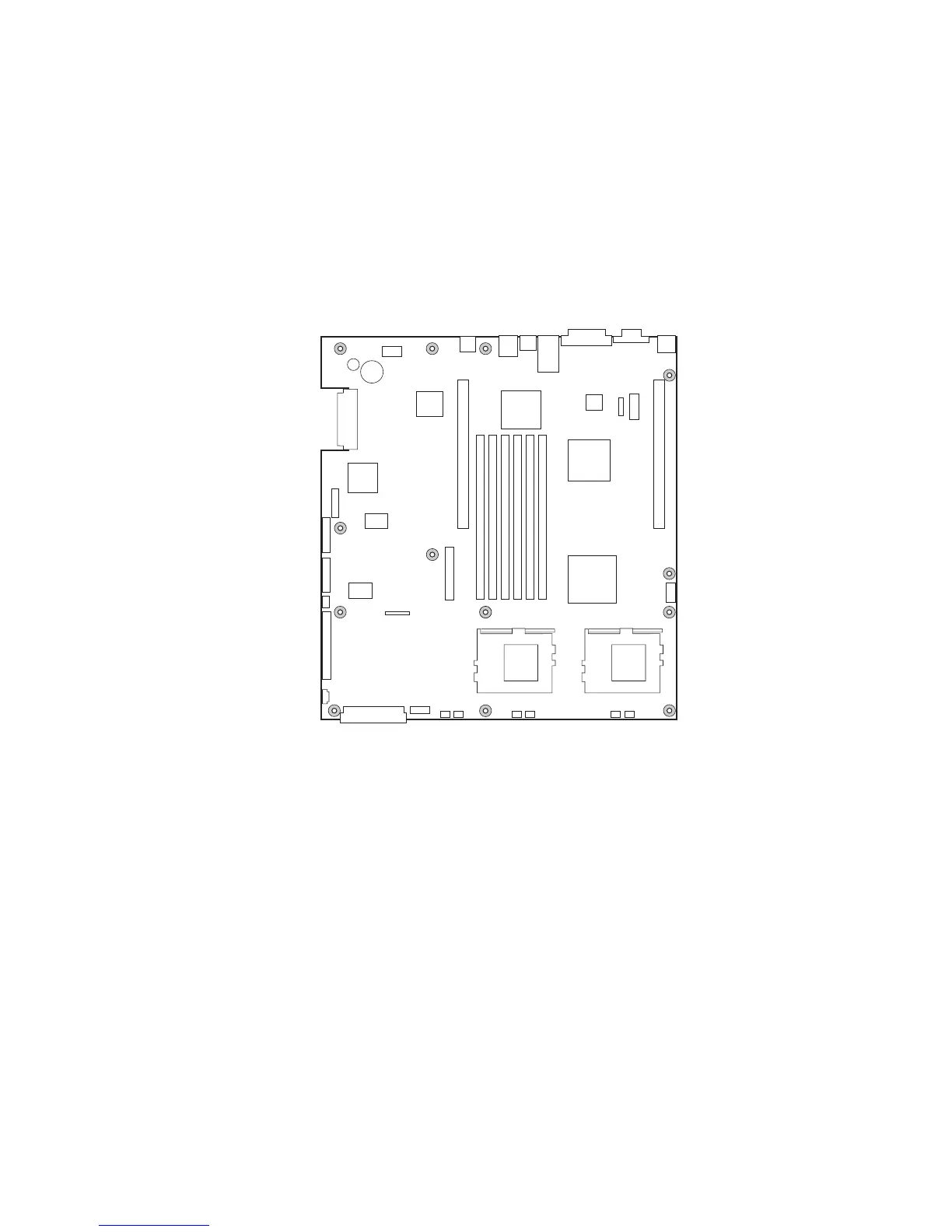

Figure 8. Installing the Server Board
