xGen Lite Installation and Programming Guide 17

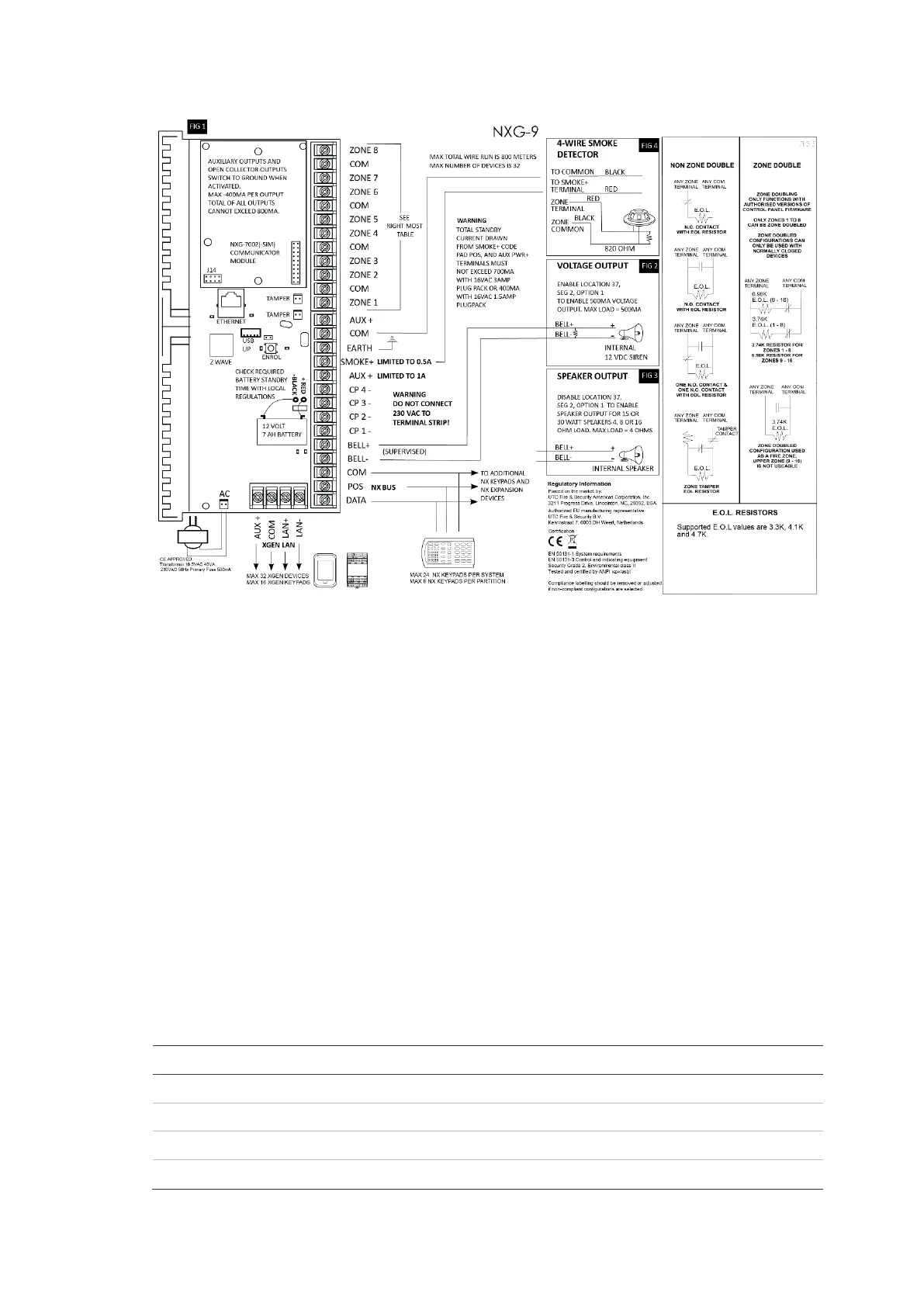

NXG-9 Wiring Diagram
Refer to NXG-8 Wiring Diagram on page 14. The NXG-9 unit functionality is the
same the NXG-8 except that the connections are spatially orientated differently.
NXG-9 Terminals
Refer to NXG-8 Terminals on page 15. The NXG-9 unit functionality is the same
the NXG-8 except that the connections are spatially orientated differently.
NXG-9 LEDs
Refer to NXG-8 LEDs on page 16. The NXG-9 unit functionality is the same the
NXG-8 except that the LEDs are spatially orientated differently.
Detector EOL Wiring
Other than the 3K3 end-of-line resistor support, the xGenLite Grade 2 panels
support the following end-of-line resistor value combinations in ohm (*):
Combination
A
B
C
Tamper (short)
0
0
0
Normal
3.3
4.7
4.1
Alarm
6.6
9.4
8.2
Tamper (open)
