xGen Lite Installation and Programming Guide 21
Installing Antennas
A number of antennas may be provided depending on the model purchased.
These include:
• Multi-antennas for legacy 433 63-bit, LoNa 80plus and Z-Wave
• 3G/4G antennas for WiFi/cellular module
• WiFi antennas for WiFi/cellular module

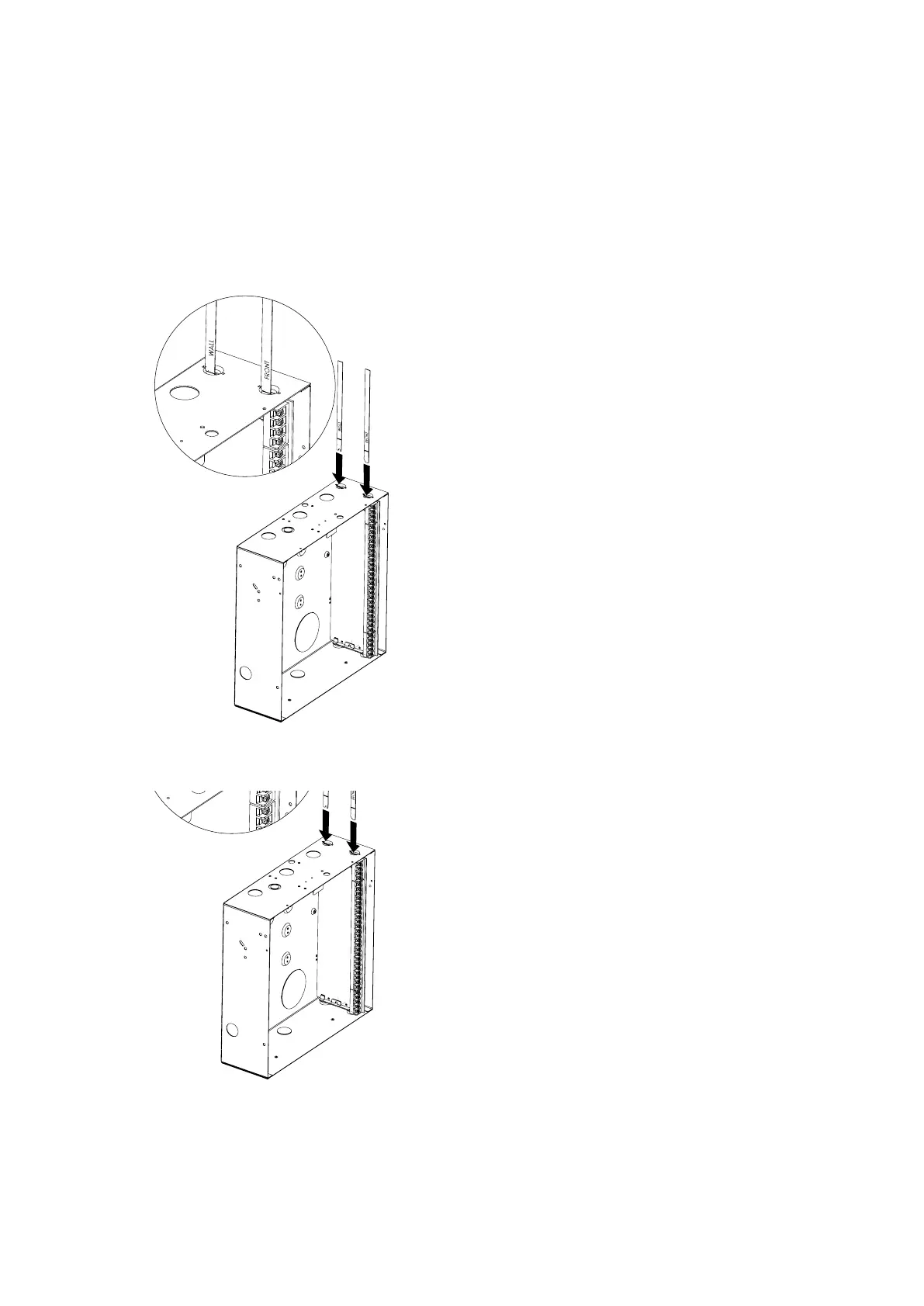

Wireless Sensor and Z-Wave Antennas
If two black antennas have been provided:
1. Install panel into metal enclosure first.
2. Antenna must be installed vertically for best
performance.
3. Each antenna is keyed (shaped differently)
and labelled. Antennas are reasonably
flexible, do not apply excessive force.
Match the antenna to the shape molded on
the plastic bracket and push to insert.
4. The line printed on each antenna will
disappear when fully inserted.
5. Remove antennas before attempting to
remove panel.
4G Cellular and WiFi Router Module Antennas
If the optional 4G Cellular and WiFi Router has
been installed, a single set of antennas should
be connected to “MAIN” on the module. The
antennas should be installed vertically, and as
high up as possible.
The module includes MIMO wireless
technology to improve reception of 3G/4G and
WiFi wireless signals. This requires the
installation of a second set of antennas to
“DIV” on the 4G/WiFi Router Module. The
second set of antennas will perform best when
separated from the MAIN antennas by at least
20 cm.
