INVT IPE300 Series User Manual

IPE300 series engineering VFD Function parameter list
-117-
Functio
n code
Name
Description
Default
Modify
P01.06
Time of starting
segment of ACC S
curve

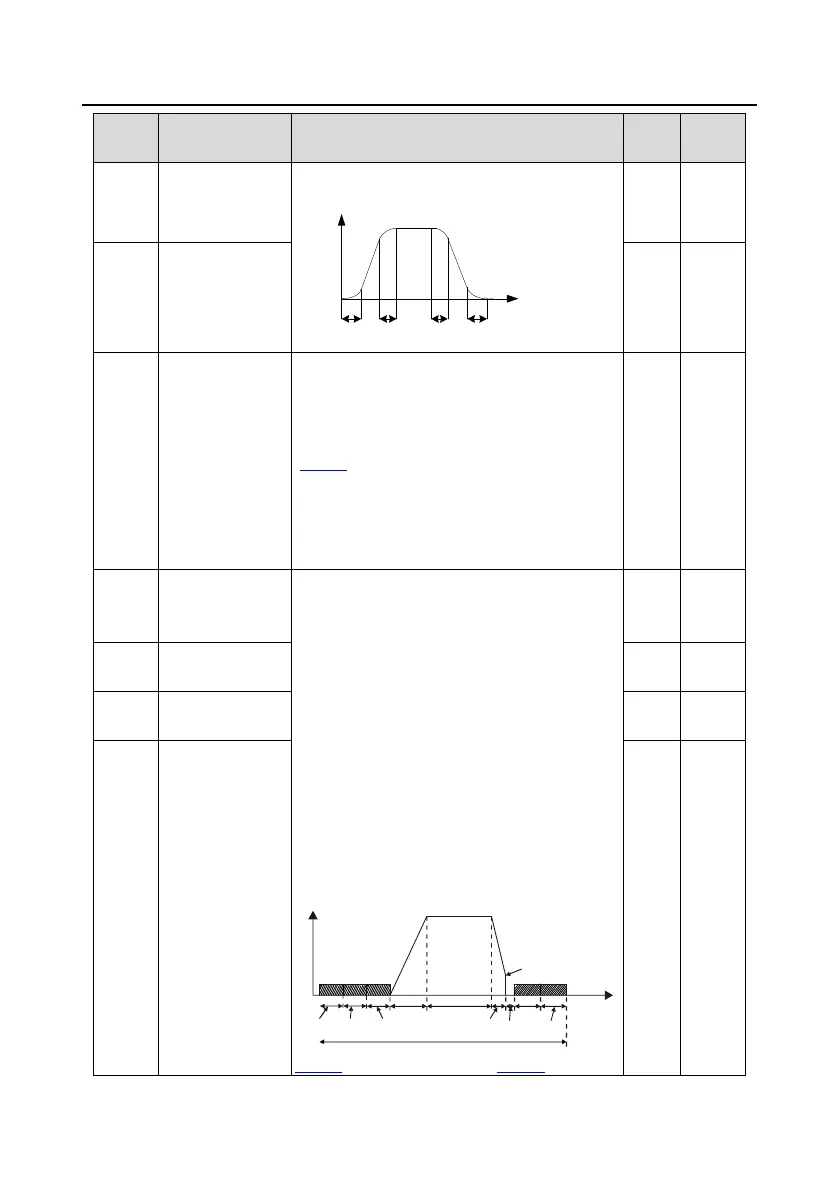

The curvature of S curve is determined by the
ACC range and ACC/DEC time.
Output frequency f
Time t
t1 t2 t3 t4
t1=P01.06
t2=P01.07
t3=P01.27
t4=P01.28
Setting range: 0.0–50.0s
0.1s
◎
P01.07
Time of ending
segment of ACC S
curve
0.1s
◎
P01.08
Stop mode
0: Decelerate to stop. After a stop command
takes effect, the VFD lowers output frequency
based on the DEC mode and the defined DEC
time; after the frequency drops to the stop speed
(P01.15), the VFD stops.
1: Coast to stop. After a stop command takes
effect, the VFD stops output immediately; and the
load coasts to stop according to mechanical
inertia.
0
○
P01.09
Starting frequency
of DC braking for
stop
Starting frequency of DC braking for stop: During
the deceleration to stop, the VFD starts DC
braking for stop when running frequency reaches
the starting frequency determined by P01.09.
Wait time before DC braking: The VFD blocks the
output before starting DC braking. After this wait
time, DC braking is started so as to prevent
overcurrent caused by DC braking at high speed.
DC braking current for stop: It indicates the
applied DC braking energy. Stronger current
indicates greater DC braking effect.
DC braking time for stop: It indicates the hold
time of DC braking. If the time is 0, DC braking is
invalid, and the VFD decelerates to stop within
the specified time.
P01.04
Acceleration
P13.14
P01.23
Constant speed
In running
Deceleration
P01.10
P13.15
P01.12
P01.09
Time t
P01.09 setting range: 0.00Hz–P00.03 (Max.
0.00Hz
○
P01.10
Demagnetization
time
0.00s
○
P01.11
DC braking current
for stop
0.0%
○
P01.12
DC braking time
for stop
0.00s
○
