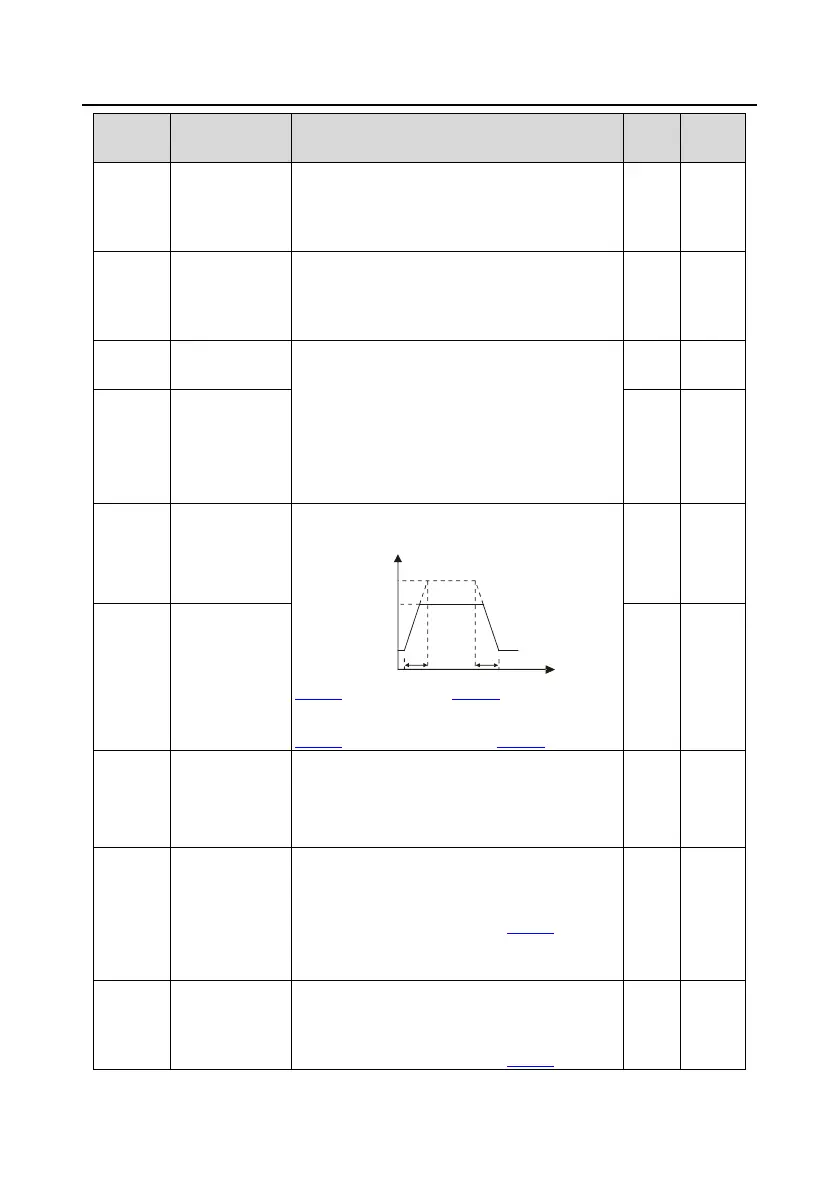

IPE300 series engineering VFD Function parameter list
-135-
Function
code
Name
Description
Default
Modify
10: HDIB
11: EtherCat/Profinet communication
12: PLC
13: Reserved
P04.28
Voltage set
through keypad
The function code is the voltage digital setting
when "keypad" is selected as the voltage setting
channel.
Setting range: 0.0%–100.0%
100.0%
○
P04.29
Voltage increase
time
Voltage increase time means the time needed for
the VFD to accelerate from min. output voltage to
the max. output frequency.
Voltage decrease time means the time needed
for the VFD to decelerate from the max. output
frequency to min. output voltage.
Setting range: 0.0–3600.0s
5.0s
○
P04.30
Voltage decrease
time
5.0s
○
P04.31
Max. output
voltage
The function codes are used to set the upper and
lower limits of output voltage.
Vmax
Vmin
V set
Time t
t1 t2
t1=P04.29
t2=P04.30
P04.31 setting range: P04.32 –100.0% (of the
motor rated voltage)
P04.32 setting range: 0.00Hz–P04.31
100.0%
◎
P04.32
Min. output
voltage
0.0%
◎
P04.33
Weakening
coefficient in
constant power
zone
1.00–1.30
1.00
○
P04.34
Pull-in current 1
in SM V/F control
When the SM VF control mode is enabled, the
function code is used to set the reactive current
of the motor when the output frequency is lower
than the frequency specified by P04.36.
Setting range: -100.0%–+100.0% (of the motor
rated current)
20.0%
○
P04.35
Pull-in current 2
in SM V/F control
When the SM VF control mode is enabled, the
function code is used to set the reactive current
of the motor when the output frequency is higher
than the frequency specified by P04.36.
20.0%
○
