INVT IPE300 Series User Manual

IPE300 series engineering VFD Function parameter list
-171-

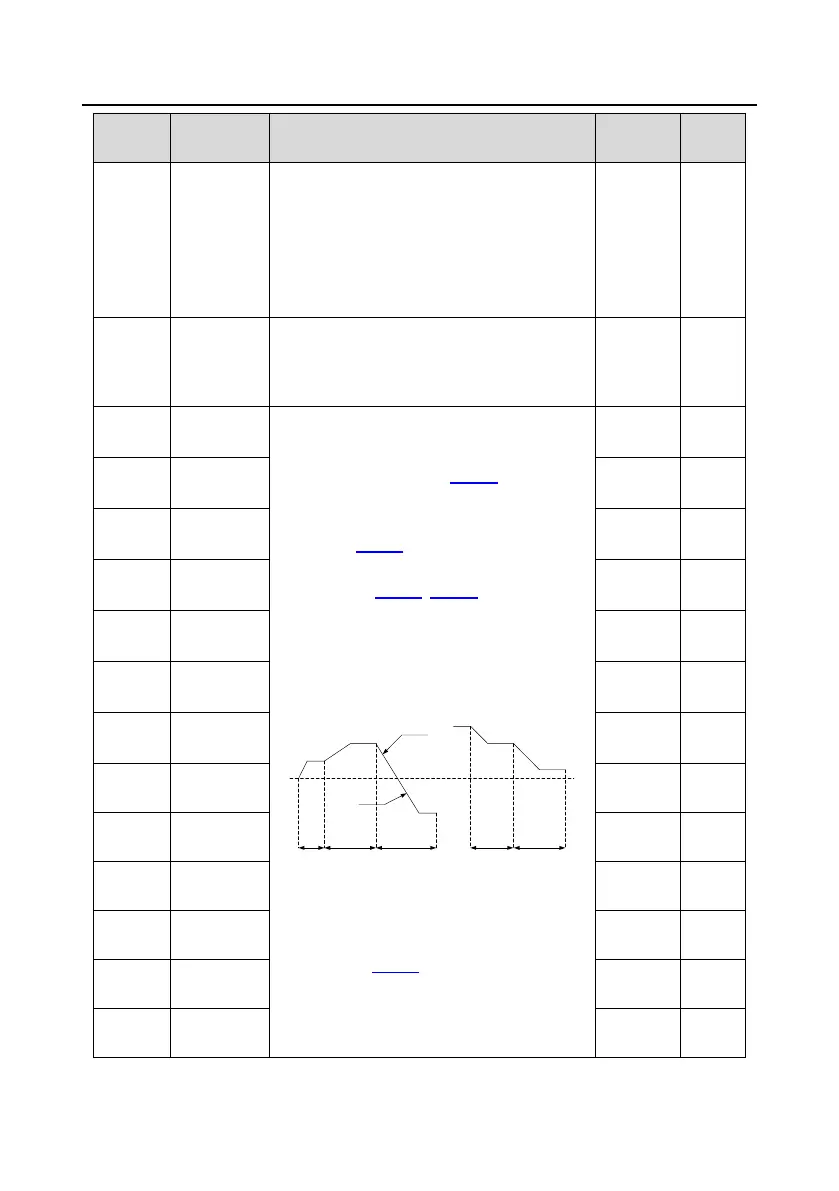

Function
code
Name
Description
Default
Modify
1: Keep running in the final value after running
for one cycle. The VFD keeps the running
frequency and direction of the last section after a
single cycle.
2: Cyclic running. The VFD enters the next cycle
after completing one cycle until receiving the
stop command.
P10.01
Simple PLC
memory
selection
0: No memory after power off
1: Memory after power-off. The PLC memories
its running stage and running frequency before
power-off.
0
○
P10.02
Multi-step
speed 0
Frequency setting range for steps from step 0 to
step 15: -100.0–100.0%. 100.0% corresponds to
the max. output frequency P00.03.
Running time setting range for steps from step 0
to step 15: 0.0–6553.5s(min). The time unit is
specified by P10.37.
When simple PLC operation is selected, it is
required to set P10.02–P10.33 to determine the
running frequency and running time of each
step.
Note: The symbol of multi-step speed
determines the running direction of simple PLC,
and the negative value means reverse running.
P10.02
P10.04
P10.06
P10.32
P10.30
P10.28
Deceleration time
(two sections)
Acceleration time
(two sections)
P10.03 P10.05 P10.07 P10.31 P10.33
When selecting multi-step speed running, the
multi-step speed is within the range of
-fmax–fmax, and it can be set continuously. The
start/stop of multi-step stop running is also
determined by P00.01.
The VFD supports the setting of 16-step speed,
which are set by combined codes of multi-step
terminals 1–4 set by S terminals, corresponding
0.0%
○
P10.03
Running time
of step 0
0.0s (min)
○
P10.04
Multi-step
speed 1
0.0%
○
P10.05
Running time
of step 1
0.0s (min)
○
P10.06
Multi-step
speed 2
0.0%
○
P10.07
Running time
of step 2
0.0s (min)
○
P10.08
Multi-step
speed 3
0.0%
○
P10.09
Running time
of step 3
0.0s (min)
○
P10.10
Multi-step
speed 4
0.0%
○
P10.11
Running time
of step 4
0.0s (min)
○
P10.12
Multi-step
speed 5
0.0%
○
P10.13
Running time
of step 5
0.0s (min)
○
P10.14
Multi-step
speed 6
0.0%
○
