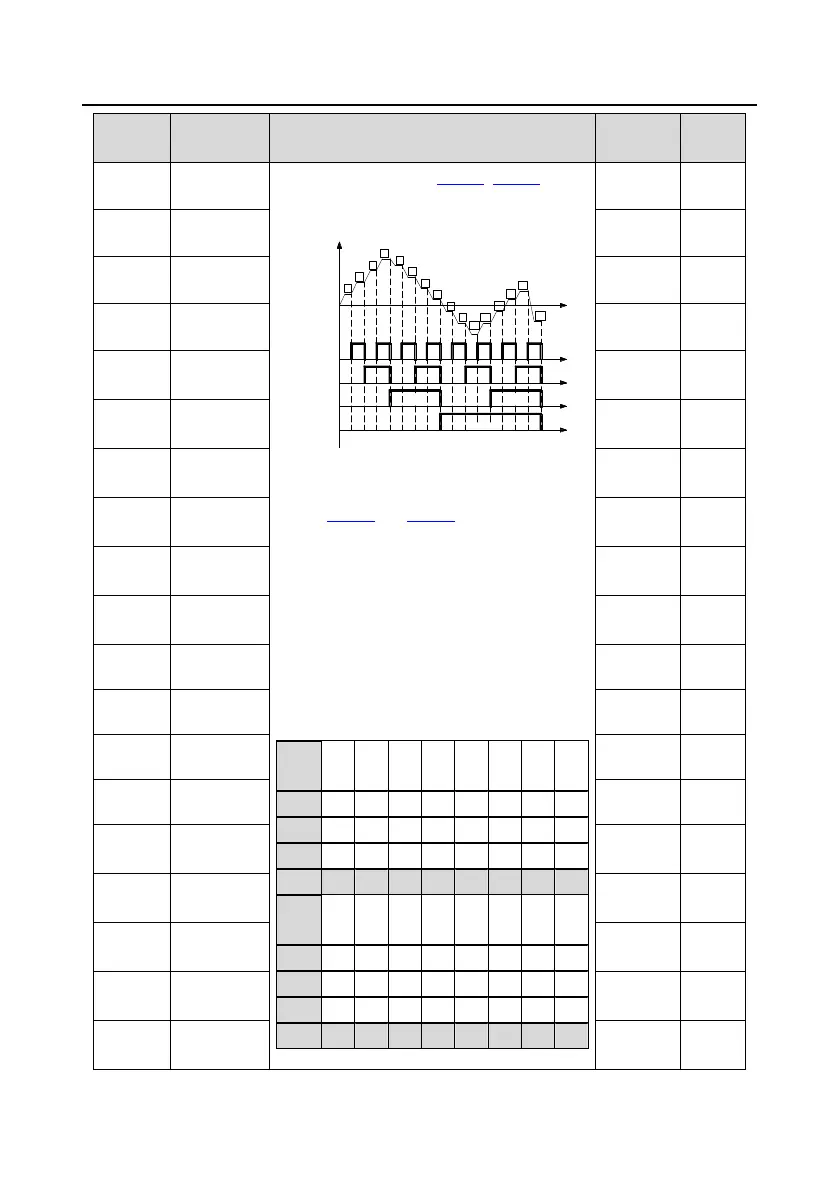

IPE300 series engineering VFD Function parameter list
-172-
Function
code
Name
Description
Default
Modify
P10.15
Running time
of step 6
to function code P05.01–P05.06) and
correspond to multi-step speed 0 to multi-step
speed 15.
Output frequency
t
t
t
t
t
terminal 1
terminal 2
terminal 3
terminal 4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ON ON
ON
ON ON
ON ON ON
ON
ON
ON
ON
ON
ON
ON
When terminal 1, terminal 2, terminal 3 and
terminal 4 are OFF, the frequency input mode is
set by P00.06 or P00.07. When terminal 1,
terminal 2, terminal 3 and terminal 4 are not all
OFF, the frequency set by multi-step speed will
prevail, and the priority of multi-step setting is
higher than that of the keypad, analog,
high-speed pulse, PID, and communication
settings.
The relation between terminal 1, terminal 2,
terminal 3 and terminal 4 are shown in the
following (T indicates terminal).
Termi
nal 1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
T2
OFF
OFF
ON
ON
OFF
OFF
ON
ON
T3
OFF
OFF
OFF
OFF
ON
ON
ON
ON
T4
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Step
0
1
2
3
4
5
6
7
Termi
nal 1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
T2
OFF
OFF
ON
ON
OFF
OFF
ON
ON
T3
OFF
OFF
OFF
OFF
ON
ON
ON
ON
T4
ON
ON
ON
ON
ON
ON
ON
ON
Step
8
9
10
11
12
13
14
15
0.0s (min)
○
P10.16
Multi-step
speed 7
0.0%
○
P10.17
Running time
of step 7
0.0s (min)
○
P10.18
Multi-step
speed 8
0.0%
○
P10.19
Running time
of step 8
0.0s (min)
○
P10.20
Multi-step
speed 9
0.0%
○
P10.21
Running time
of step 9
0.0s (min)
○
P10.22
Multi-step
speed 10
0.0%
○
P10.23
Running time
of step 10
0.0s (min)
○
P10.24
Multi-step
speed 11
0.0%
○
P10.25
Running time
of step 11
0.0s (min)
○
P10.26
Multi-step
speed 12
0.0%
○
P10.27
Running time
of step 12
0.0s (min)
○
P10.28
Multi-step
speed 13
0.0%
○
P10.29
Running time
of step 13
0.0s (min)
○
P10.30
Multi-step
speed 14
0.0%
○
P10.31
Running time
of step 14
0.0s (min)
○
P10.32
Multi-step
speed 15
0.0%
○
P10.33
Running time
of step 15
0.0s (min)
○
