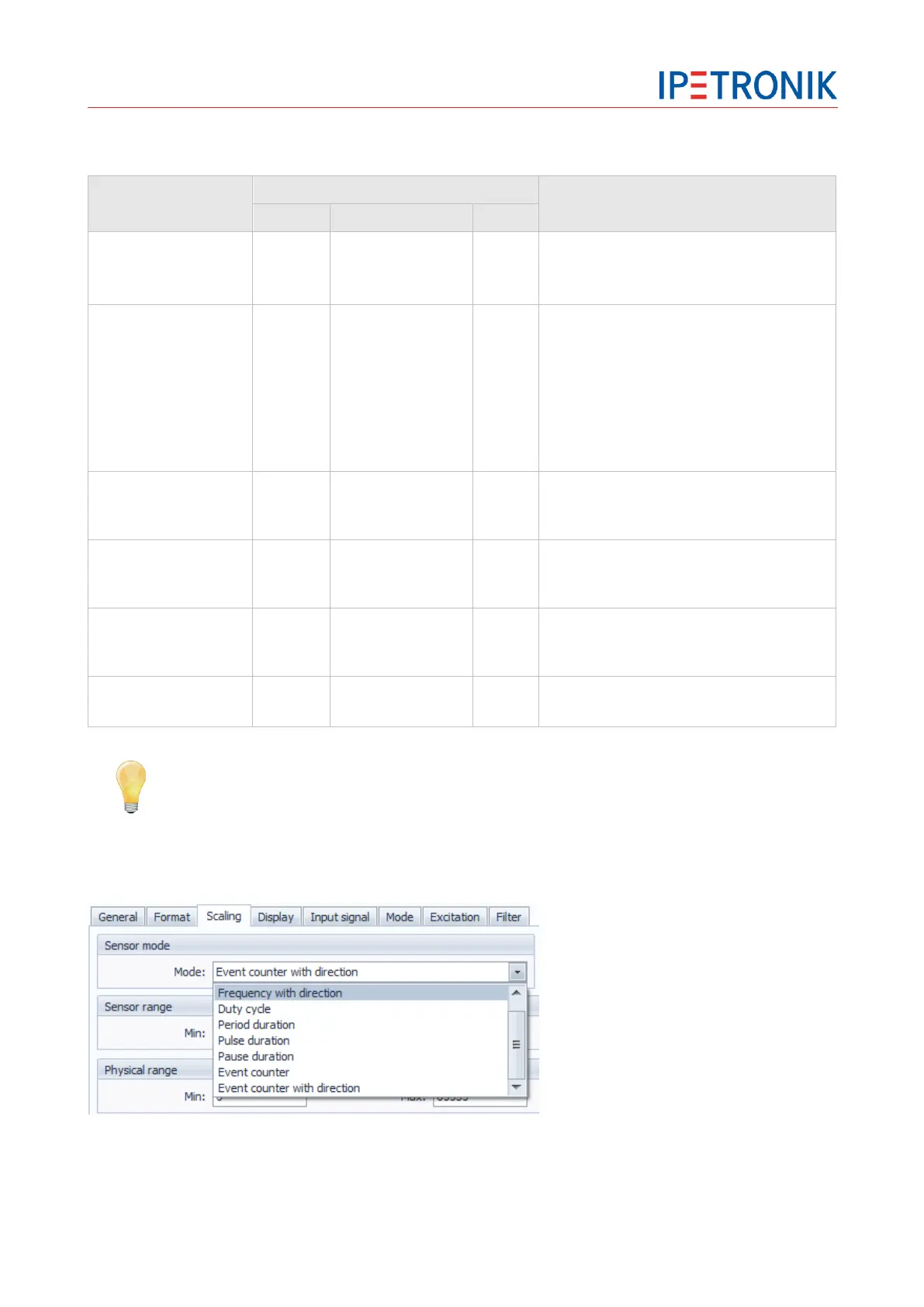

Mode
Ranges
Remarks
Min.
Max.
Unit
Frequency
0 ... 200
0 ... 200
kHz
Maximum > Minimum
minimum signal frequency 0.03 Hz
maximum signal frequency 200 kHz
Duty cycle
Range
0.01 % to 99.99 %
0 ... 100
0 ... 100
%
Maximum > Minimum
minimum signal frequency 0.03 Hz
maximum signal frequency:
10 kHz at 1 % duty cycle
250 kHz at 25 % duty cycle
500 kHz at 50 % duty cycle
250 kHz at 75 % duty cycle
10 kHz at 99 % duty cycle
Periodic duration
0 ... 200
0 ... 200
s
Maximum > Minimum
maximum interval duration 200 s
minimum interval duration 1 µs
Pulse duration
0 ... 200
0 ... 200
s
Maximum > Minimum
maximum pulse duration 200 s
minimum pulse duration 1 µs
Pause duration
0 ... 200
0 ... 200
s
Maximum > Minimum
maximum pause duration 200 s
minimum pause duration 1 µs
Event counter
0
127 ... 4.295 * 10
9
s
Depends on configured data type
Select values >=1 Hz for the frequency with Sensor range Min! This avoids an unnecessary
long response time until the value 0 Hz or –FS is sent if a signal is missing or has the value
approx. 0 Hz. The maximum response time at 0 Hz is 40 s.
Indicating rotation direction
The Scaling tab offers special sensor modes Frequency with direction and Event counter with
direction for channel 1/2 and channel 3/4.
